DL1BDB3 - Schneider Electric - Square D Disconnect Switch

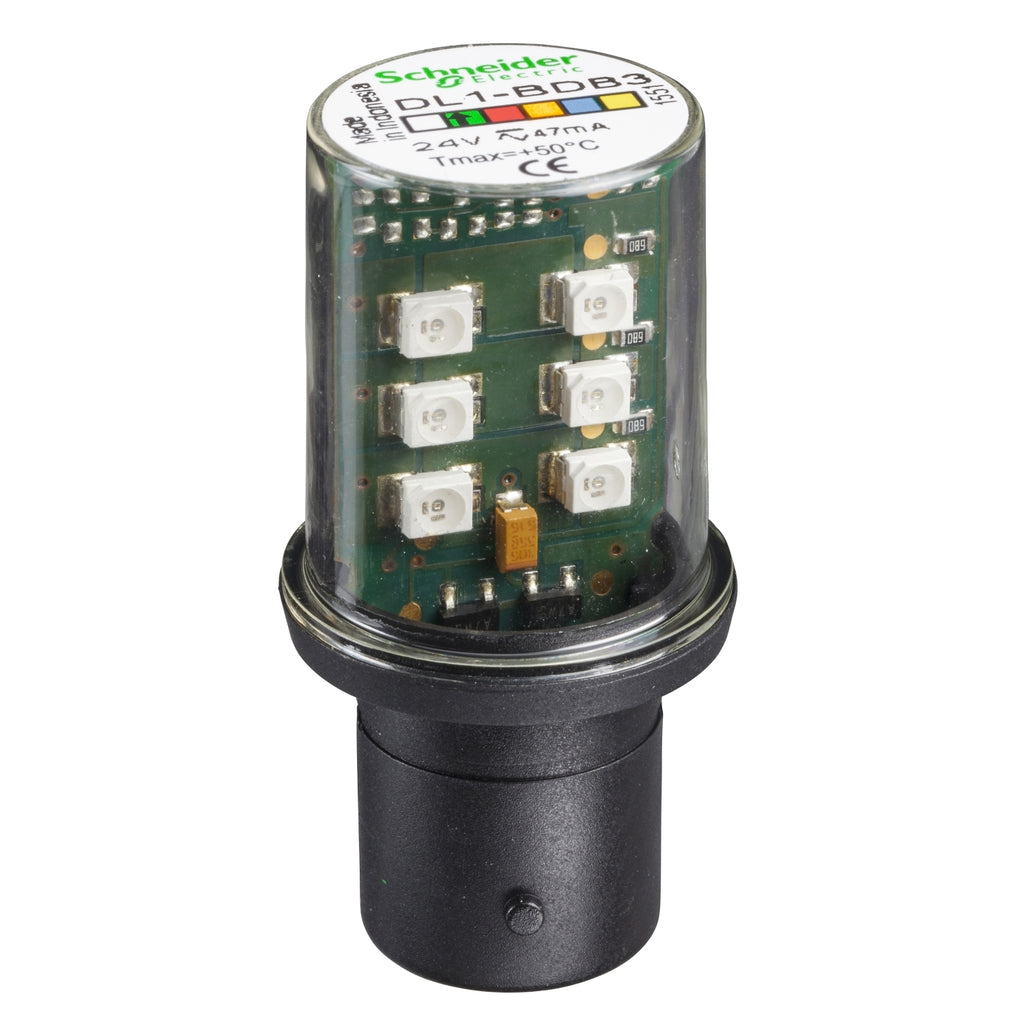

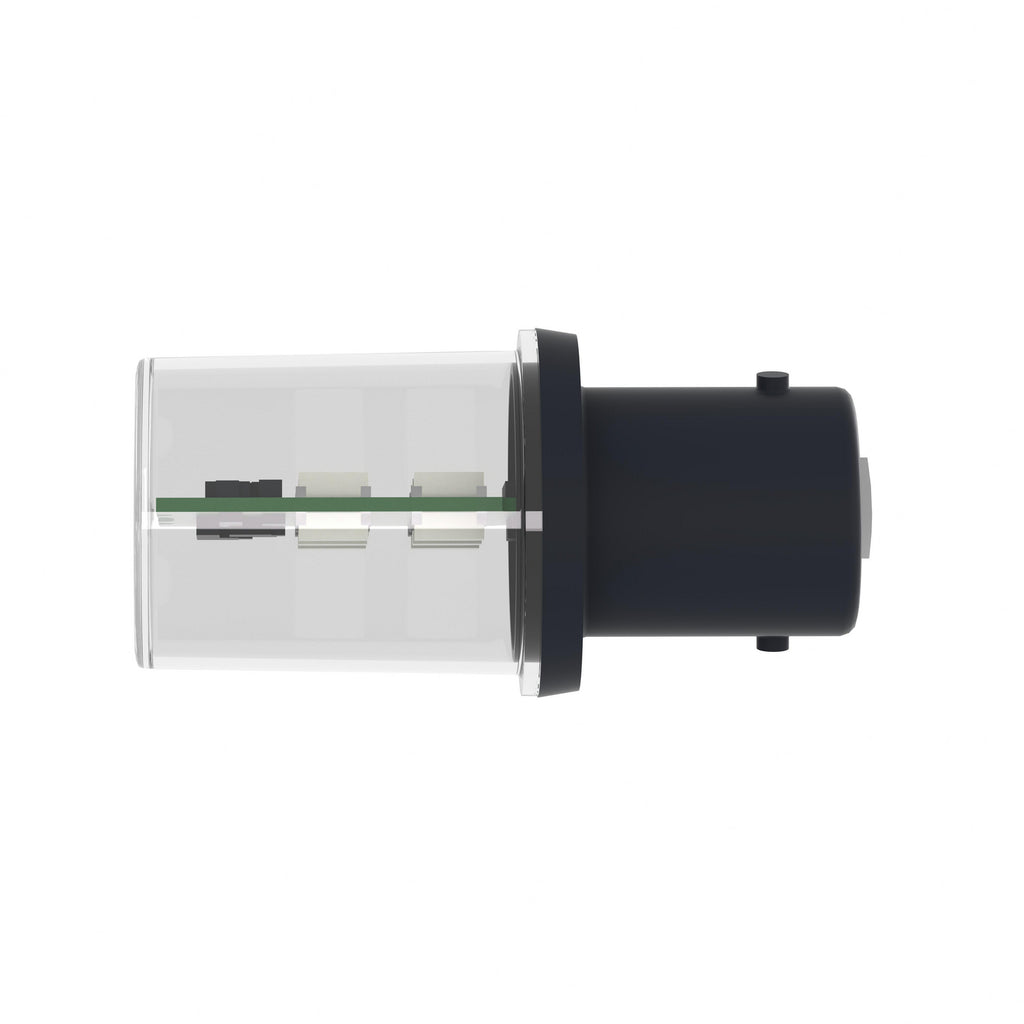

This Harmony XVB spare protected LED bulb is supplied with 24V AC/DC and provides a steady green light. This spare integral LED bulb is a lighting accessory for beacon and indicator bank. It provides a steady green light thanks to its high endurance LED. It is compatible with Harmony XVD, Harmony XVP, and Harmony XVB. Its simple and modular design allows easy installation. It features high brightness for easy identification of function and operation mode, even in brightly lit environments. It also features high endurance LED lighting for less replacement and process downtimes.
GENERAL SPECIFICATIONS
| Range Compatibility | Harmony XVB Harmony XVD Harmony XVP |
|---|---|
| Accessory / separate part designation | Protected LED bulb |
| Accessory / Separate Part Type | LED bulb |
| Accessory / separate part category | Lighting accessories |
| Accessory / separate part destination | Beacon and indicator bank |
| [Us] rated supply voltage | 24 V AC/DC |
| Signalling type | Steady |
| Signalling colour | Green |
| Sale per indivisible quantity | 1 |
| Current Consumption | 47 mA |
|---|---|
| Bulb base | BA 15d |
| Net Weight | 0.033 lb(US) (0.015 kg) |
| Category | US100XV22611 |
|---|---|
| Discount Schedule | 00XV |
| GTIN | 3389110117905 |
| Returnability | Yes |
| Country of origin | ID |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.38 in (3.500 cm) |
| Package 1 Width | 1.77 in (4.500 cm) |
| Package 1 Length | 2.36 in (6.000 cm) |
| Package 1 Weight | 0.423 oz (12.000 g) |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 60 |
| Package 2 Height | 5.91 in (15.000 cm) |
| Package 2 Width | 5.91 in (15.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 34.815 oz (987.000 g) |
