DL1BDB4 - Schneider Electric - Square D Disconnect Switch

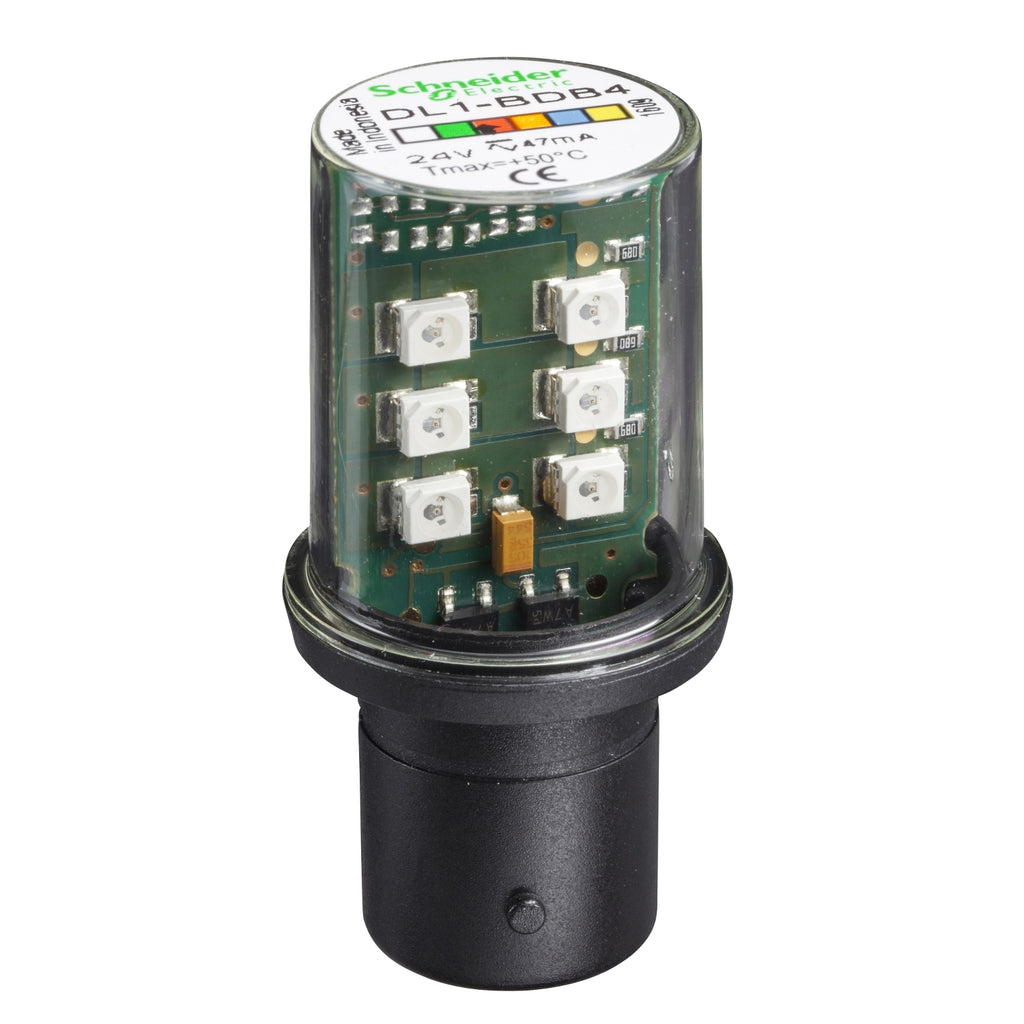

This Harmony XVB spare protected LED bulb is supplied with 24V AC/DC and provides a steady red light. This spare integral LED bulb is a lighting accessory for beacon and indicator bank. It provides a steady red light thanks to its high endurance LED. It is compatible with Harmony XVD, Harmony XVP, and Harmony XVB. Its simple and modular design allows easy installation. It features high brightness for easy identification of function and operation mode, even in brightly lit environments. It also features high endurance LED lighting for less replacement and process downtimes.
GENERAL SPECIFICATIONS
| Range Compatibility | Harmony XVP Harmony XVD Harmony XVB |
|---|---|
| Accessory / separate part designation | Protected LED bulb |
| Accessory / Separate Part Type | LED bulb |
| Accessory / separate part category | Lighting accessories |
| Accessory / separate part destination | Beacon and indicator bank |
| [Us] rated supply voltage | 24 V AC/DC |
| Signalling type | Steady |
| Signalling colour | Red |
| Sale per indivisible quantity | 1 |
| Current Consumption | 47 mA |
|---|---|

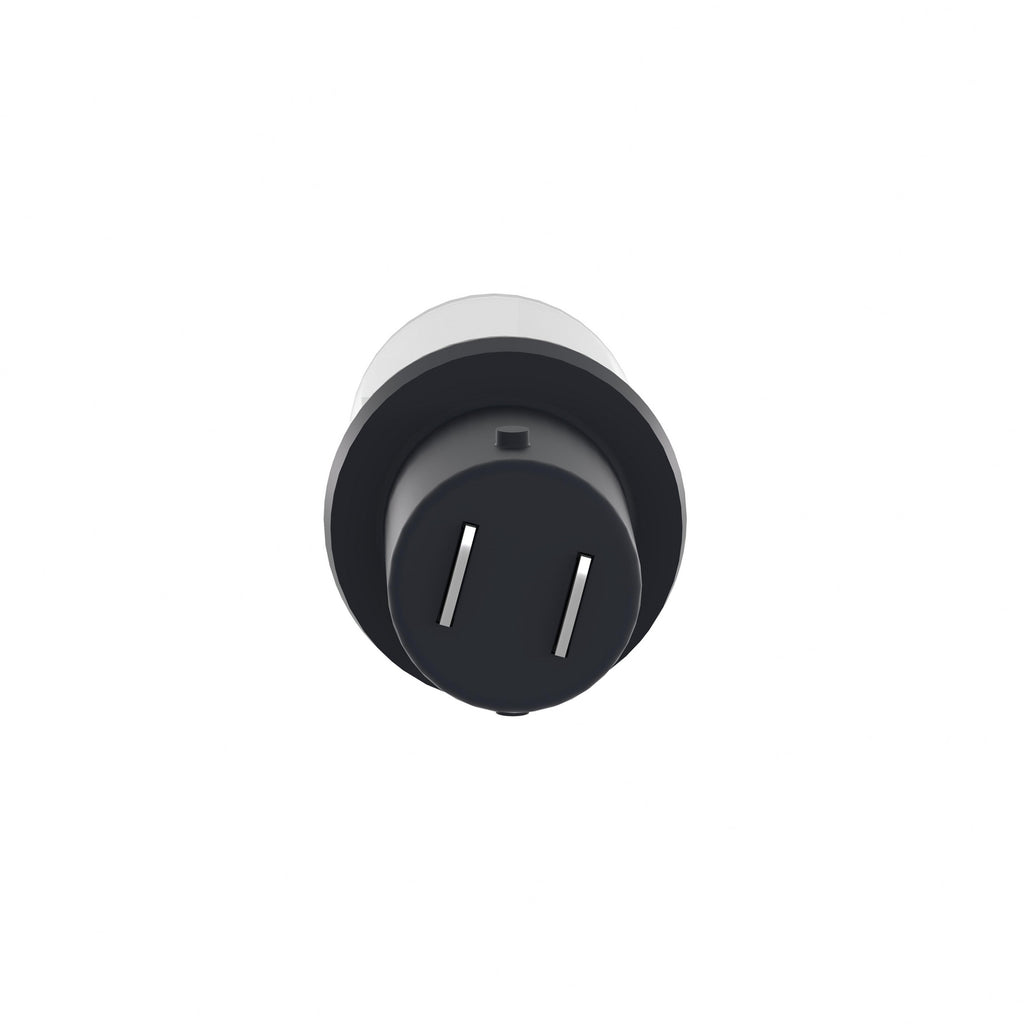

| Bulb base | BA 15d |
| Net Weight | 0.033 lb(US) (0.015 kg) |
| Category | US100XV22611 |
|---|---|
| Discount Schedule | 00XV |
| GTIN | 3389110117967 |
| Returnability | Yes |
| Country of origin | ID |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.38 in (3.500 cm) |
| Package 1 Width | 1.77 in (4.500 cm) |
| Package 1 Length | 2.36 in (6.000 cm) |
| Package 1 Weight | 0.388 oz (11.000 g) |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 60 |
| Package 2 Height | 5.91 in (15.000 cm) |
| Package 2 Width | 5.91 in (15.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 33.862 oz (960.000 g) |
