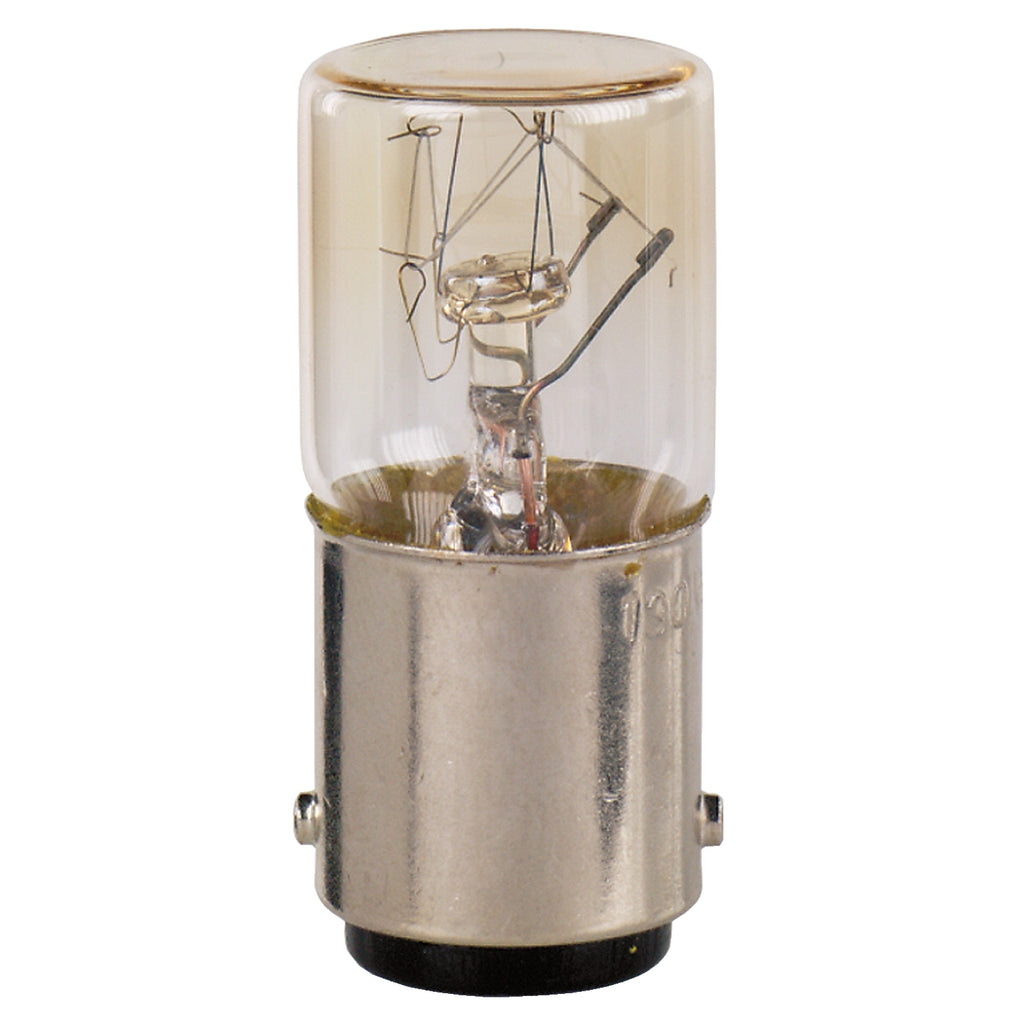

DL1CE024 - Schneider Electric - Square D Incandescent Indicator Light
This Harmony XB4 Integral LED is supplied with 24V AC/DC BA9s base. It is compatible with Harmony XB4, XB5 and XB7. It is easily installed into a standard 22mm diameter controls and signalling units. Its simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. It features high brightness for easy identification of function and operation mode.
GENERAL SPECIFICATIONS
Main
| Range Compatibility |
Harmony XAC |
| Accessory / Separate Part Type |
Incandescent bulb |
| Accessory / separate part category |
Lighting accessory |
| Accessory / separate part destination |
Illuminated push-button |
| [Us] rated supply voltage |
24 V AC/DC |
| Signalling colour |
Clear |
| Sale per indivisible quantity |
10 |
| Product or Component Type |
Incandescent bulb |
Complementary
| Power dissipation in W |
2.6 W |
| Bulb base |
BA 9s |
| Diameter |
0.4 in (11 mm) |
| Length |
1.1 in (28 mm) |
Ordering and shipping details
| Category |
US10CS222466 |
| Discount Schedule |
0CS2 |
| GTIN |
3389110300307 |
| Returnability |
Yes |
| Country of origin |
CN |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
0.39 in (1.000 cm) |
| Package 1 Width |
0.39 in (1.000 cm) |
| Package 1 Length |
1.18 in (3.000 cm) |
| Package 1 Weight |
0.067 oz (1.900 g) |
| Unit Type of Package 2 |
BB1 |
| Number of Units in Package 2 |
10 |
| Package 2 Height |
1.38 in (3.500 cm) |
| Package 2 Width |
1.69 in (4.300 cm) |
| Package 2 Length |
4.21 in (10.700 cm) |
| Package 2 Weight |
0.988 oz (28.000 g) |
| Unit Type of Package 3 |
S02 |
| Number of Units in Package 3 |
800 |
| Package 3 Height |
5.91 in (15.000 cm) |
| Package 3 Width |
11.81 in (30.000 cm) |
| Package 3 Length |
15.75 in (40.000 cm) |
| Package 3 Weight |
5.589 lb(US) (2.535 kg) |
