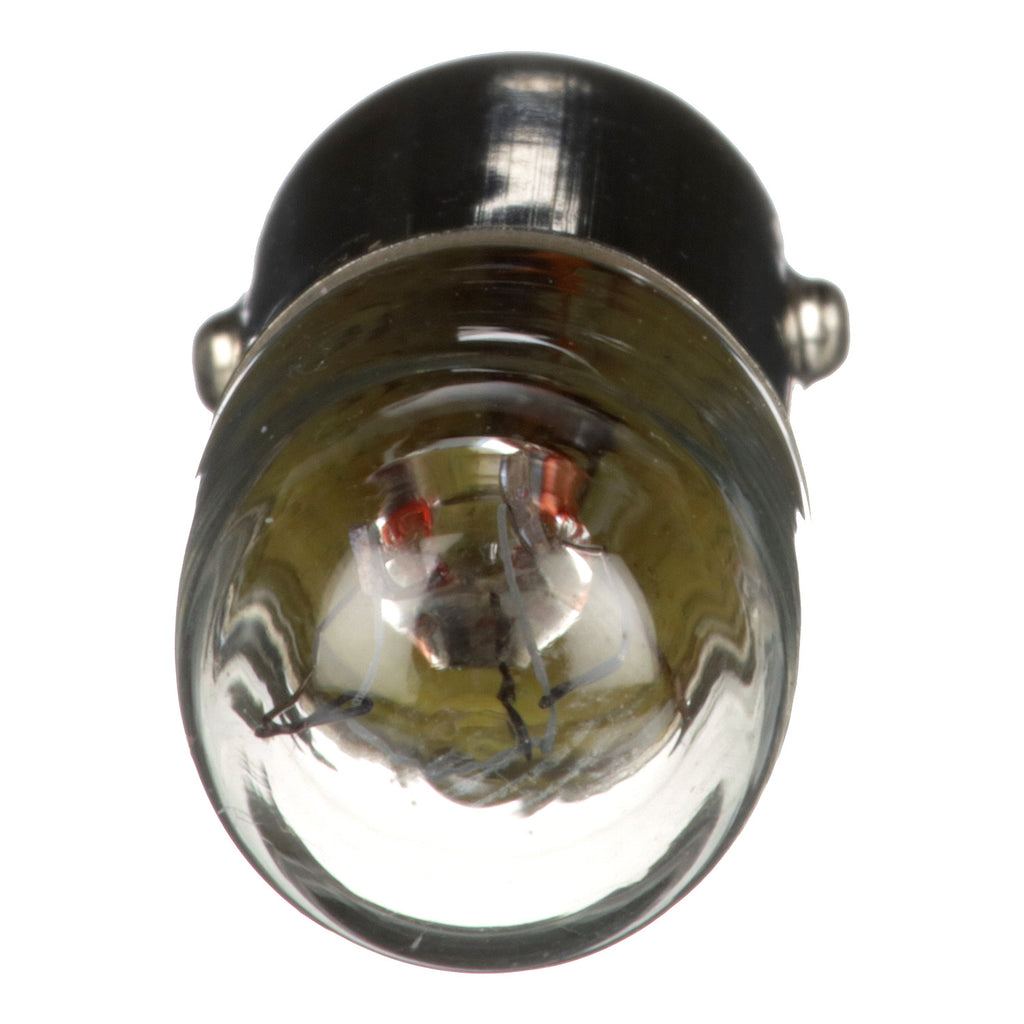

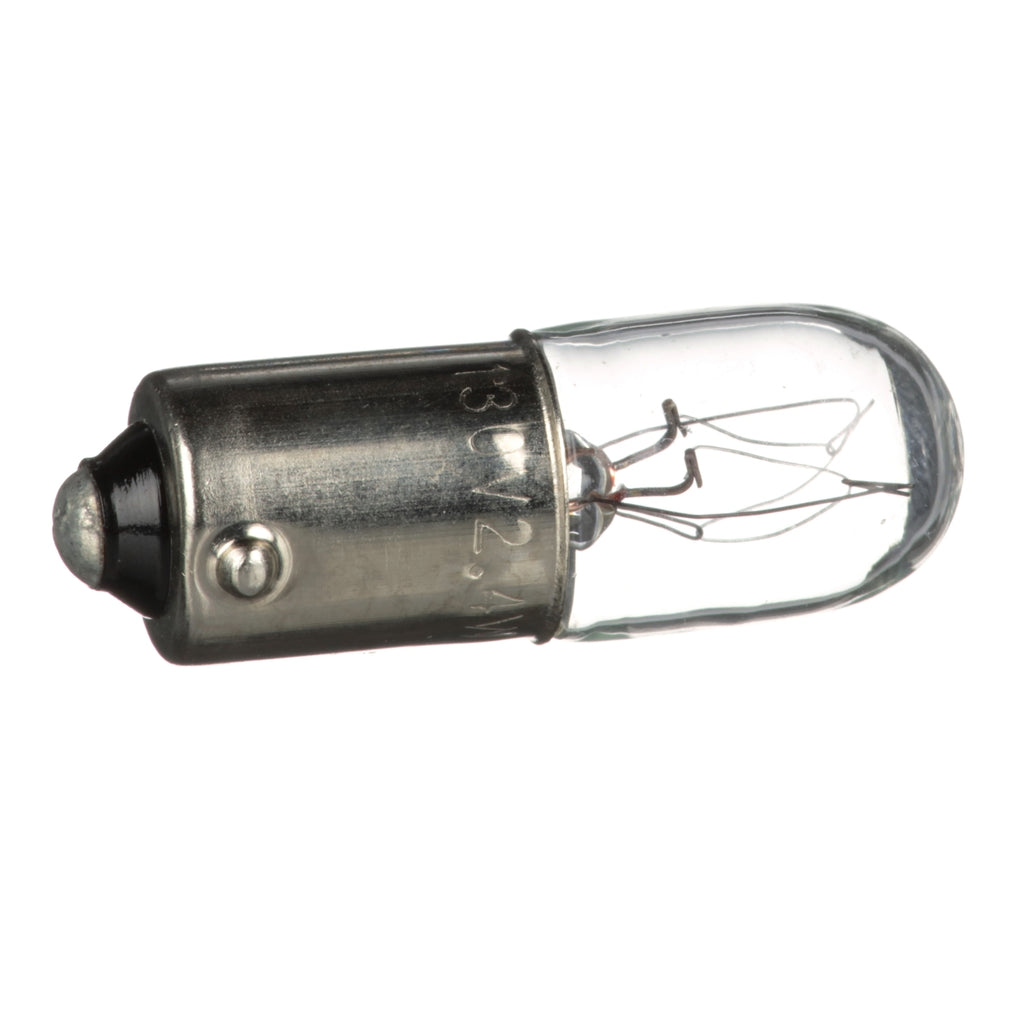

DL1CE130 - Schneider Electric - Square D Incandescent Indicator Light
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K. It is compatible with Harmony XB4, XB5, XB7. It is sold in lots of 10.
GENERAL SPECIFICATIONS
Main
| Range Compatibility |
Harmony XAC |
| Accessory / Separate Part Type |
Incandescent bulb |
| Accessory / separate part category |
Lighting accessory |
| Accessory / separate part destination |
Illuminated push-button |
| [Us] rated supply voltage |
130 V AC/DC |
| Signalling colour |
Clear |
| Sale per indivisible quantity |
10 |
| Product or Component Type |
Incandescent bulb |
Complementary
| Power dissipation in W |
2.4 W |
| Bulb base |
BA 9s |
| Diameter |
0.4 in (10 mm) |
| Length |
1.1 in (28 mm) |
Ordering and shipping details
| Category |
US10CS222466 |
| Discount Schedule |
0CS2 |
| GTIN |
3389110300345 |
| Returnability |
Yes |
| Country of origin |
CN |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
0.39 in (1.000 cm) |
| Package 1 Width |
0.39 in (1.000 cm) |
| Package 1 Length |
1.18 in (3.000 cm) |
| Package 1 Weight |
0.071 oz (2.000 g) |
| Unit Type of Package 2 |
BB1 |
| Number of Units in Package 2 |
10 |
| Package 2 Height |
1.38 in (3.500 cm) |
| Package 2 Width |
1.77 in (4.500 cm) |
| Package 2 Length |
4.33 in (11.000 cm) |
| Package 2 Weight |
1.129 oz (32.000 g) |
| Unit Type of Package 3 |
S02 |
| Number of Units in Package 3 |
800 |
| Package 3 Height |
5.91 in (15.000 cm) |
| Package 3 Width |
11.81 in (30.000 cm) |
| Package 3 Length |
15.75 in (40.000 cm) |
| Package 3 Weight |
6.323 lb(US) (2.868 kg) |
PRODUCT DATASHEET
DL1CE130_Product Datasheet
