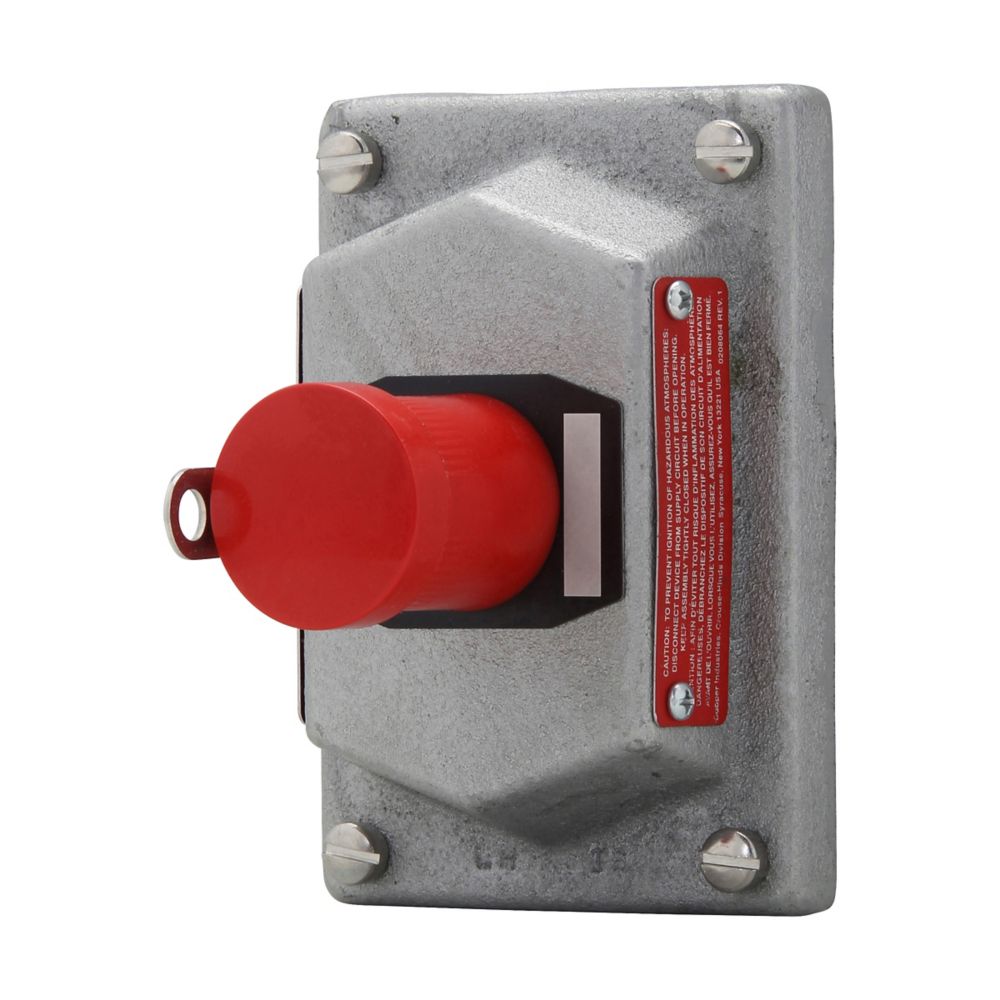

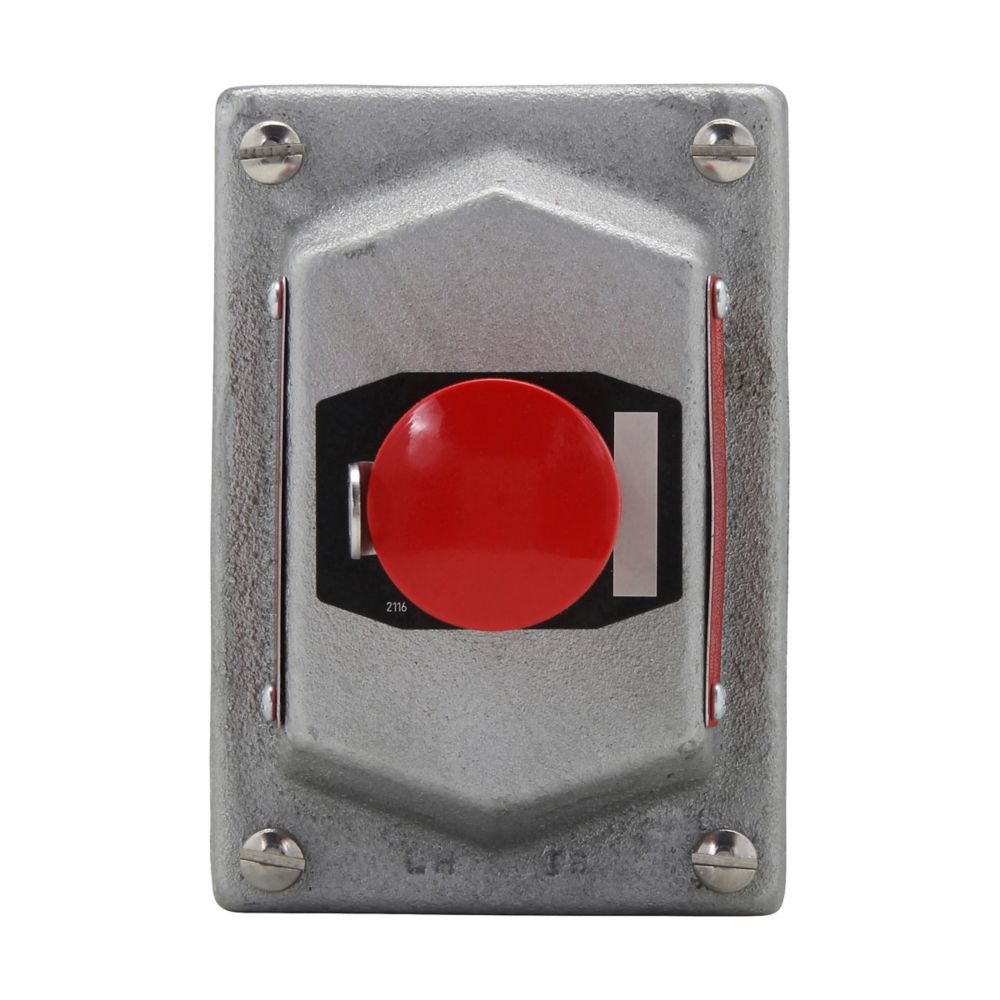

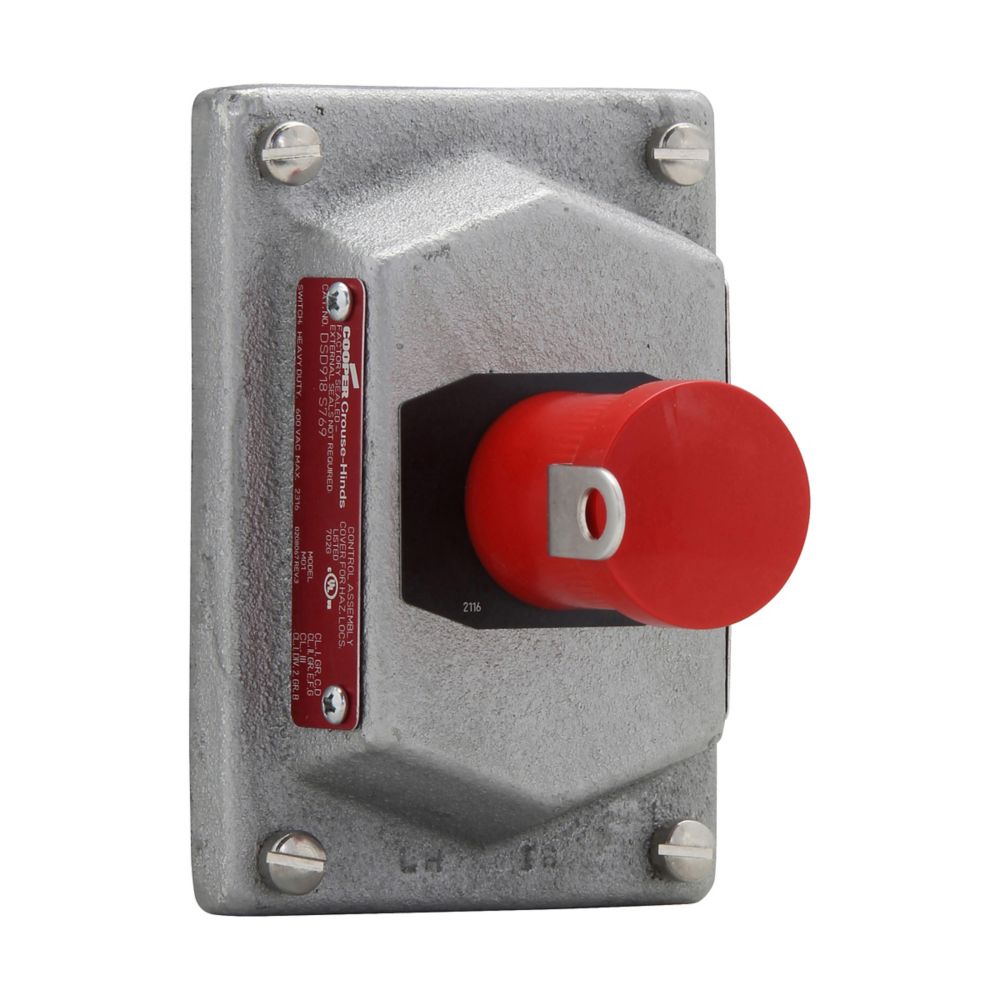

DSD918S769 - Eaton Crouse-Hinds Series - 10A 600 VAC DSD Front Operated Pushbutton Cover and Device Sub-Assembly
Eaton Crouse-Hinds series DSD front operated pushbutton cover and device sub-assembly, 10A, Red, Feraloy iron alloy, 1 circuit universal, 1 button, Maintained red emergency "STOP" button with lockout, factory sealed, 600 Vac
GENERAL SPECIFICATIONS
| Product Name |
Eaton Crouse-Hinds series DSD front operated pushbutton cover and device sub-assembly |
| Catalog Number |
DSD918 S769 |
| UPC |
782274020976 |
| Product Length/Depth |
5.25 in |
| Product Height |
3.5 in |
| Product Width |
5 in |
| Product Weight |
3.8 lb |
| Product Type |
Front operated pushbutton cover and device sub-assembly |
PRODUCT SPECIFICATIONS
| Voltage rating |
600 Vac |
| Number of cover buttons |
1 |
| Normal position |
1 circuit universal |
| Amperage Rating |
10A |
| Color |
Red |
| Material |
Feraloy iron alloy |
| Special features |
Maintained red emergency "STOP" button with lockout, factory sealed |
