Description

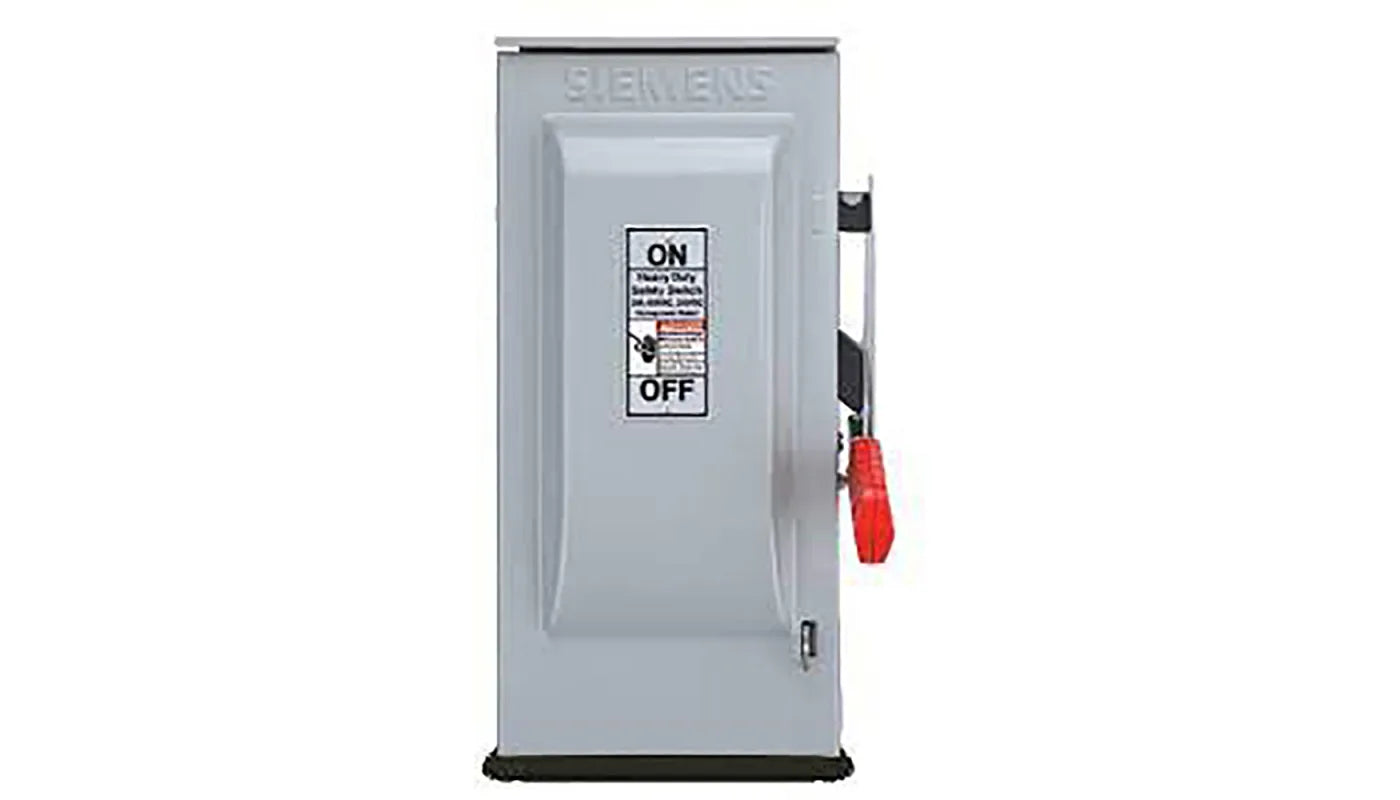

DTF324R - Siemens - 200A 3P 240V 3W Fused DT Type 3R
Siemens Low Voltage Circuit Protection Heavy Duty Safety Switches. Type: ENCLOSED, SAFETY SWITCH Std: UL V. Rating: 240V A. Rating: 200A Wattage: 3W No. Of Poles: 3P F. Rating: 60Hz Action: DOUBLE THROW Material: 304SS Enclosure: TYPE 3R. 2-3 point mounting holes. O. Cycles: 8000 O. Temperature: (-20F-120F) AMBIENT TEMPERATURE Environmental Conditions: OUTDOOR
TECHNICAL SPECIFICATIONS
Product related
| Article number | US2:DTF324R |
| MFN | DTF324R |
| UPC | 783643453968 |
| Commodity Code | 8536509045 |
Pricing related
| Price Group | N3N |
Delivery related
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Standard delivery time | 13 Day/Days |
| Packaging dimensions (L x W x H) | 18.90 x 7.87 x 41.73 inch |
| Net weight | 80.160 lb |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Dangerous goods | No |
Environment related
| WEEE (2012/19/EU) Take-Back Obligations | no |
| Compliance with the substance restrictions according to RoHS directive | not available |
| SCIP Number | not available |
Siemens specific
| Product Group | 5203 |
| Catalog ID | LV10.1 |
| Group Code | P320 |
| Country of origin | Mexico |
| Returnable Status | Yes |
