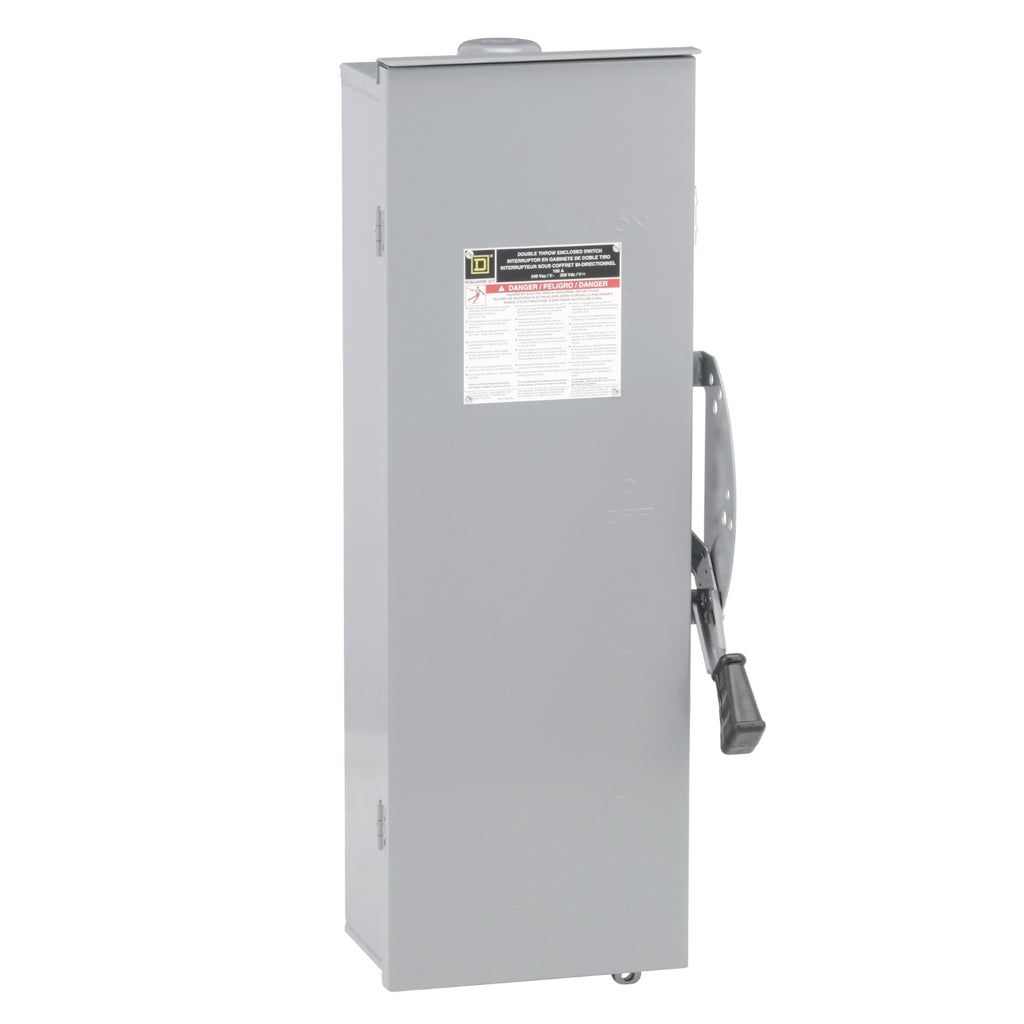

DTU223RB - Schneider Electric - 30A 240V Square D Disconnect 2Pole NEMA 3R
Schneider Electric's Square D double throw safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Double throw safety switches are designed for commercial, industrial, and manufacturing installations. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This double throw safety switch is a non fusible disconnect and has a rated current of 100A for 240VAC and 250VDC. This heavy duty switch has a 2 wire configuration with 2 poles. The enclosure is surface mounted and is a Type 3R with bolt on provisions. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and are UL listed.
GENERAL SPECIFICATIONS
| Product | Double Throw Safety Switch |
|---|---|
| Duty Rating | Heavy duty |
| Disconnect Type | Non-fusible disconnect switch |
| Factory Installed Neutral | None |
| Number of Poles | 2 |
| Current Rating | 100 A |
| Voltage Rating | 240 V AC 250 V DC |
| Enclosure Rating | NEMA 3 |
| Motor power hp | 15 hp at 240 V AC 50-60 Hz for 1 phase motors 20 hp at 250 V DC |
| Short-circuit current | 10 kA H or K 200 kA R, J or T |
|---|---|
| Fuse type | H or K R, J or T |
| Mounting Type | Surface |
| Wire Size | AWG 12...AWG 1/0 aluminium AWG 14...AWG 1/0 copper |
| Tightening torque | 35 lbf.in (4.0 N.m) 0.003…0.008 in² (2.06…5.26 mm²) (AWG 14...AWG 1/0) 40 lbf.in (4.5 N.m) 0.01 in² (8.37 mm²) (AWG 8) 45 lbf.in (5.08 N.m) 0.02…0.08 in² (13.30…53.48 mm²) (AWG 8) 50 lbf.in (5.6 N.m) 0.04…0.08 in² (26.67…53.48 mm²) (AWG 6...AWG 4) |
| Depth | 6.93 in (176.02 mm) |
| Width | 11.96 in (303.78 mm) |
| Height | 30.5 in (774.7 mm) |
| Product Weight | 40.50 lb(US) (18.37 kg) |
| Certifications | UL Listed |
|---|
| Category | US10DE100133 |
|---|---|
| Discount Schedule | 0DE1 |
| GTIN | 785901308492 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 10.300 in (26.162 cm) |
| Package 1 Width | 12.500 in (31.750 cm) |
| Package 1 Length | 33.000 in (83.820 cm) |
| Package weight(Lbs) | 37.620 lb(US) (17.064 kg) |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 40.000 in (101.600 cm) |
| Package 2 Width | 40.000 in (101.600 cm) |
| Package 2 Length | 48.000 in (121.920 cm) |
| Package 2 Weight | 596.999 lb(US) (270.794 kg) |
