DTU224NRB - Schneider Electric - 60A 240V Square D Disconnect 2Pole NEMA 3R Neutral Installed

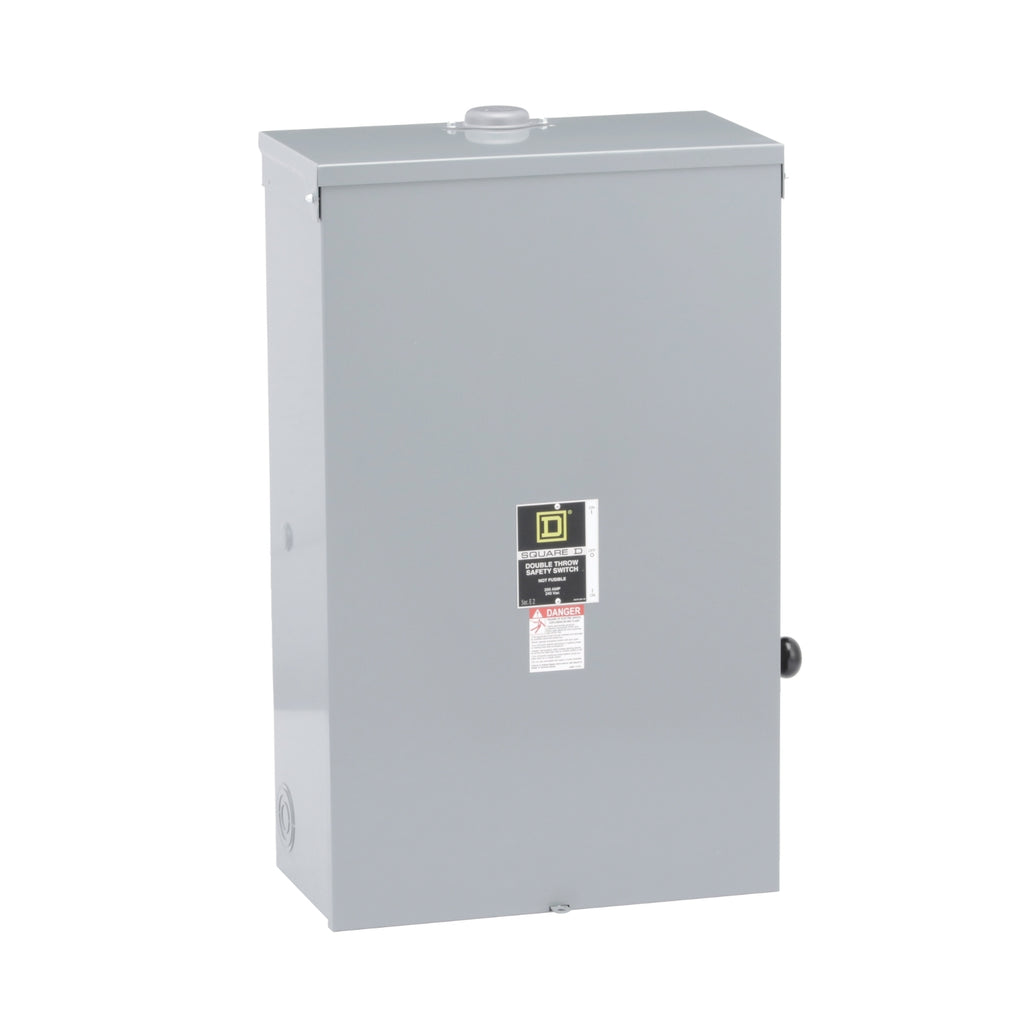

Schneider Electric's Square D double throw safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Double throw safety switches are designed for commercial, industrial, and manufacturing installations. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This double throw safety switch is a non fusible disconnect and has a rated current of 200A for 240VAC. This general duty switch has a 3 wire configuration with 2 poles and a factory installed neutral. The enclosure is surface mounted and is a Type 3R with bolt on provisions. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and are UL listed.
GENERAL SPECIFICATIONS
Main
| Product |
Double Throw Safety Switch |
| Duty Rating |
General duty |
| Disconnect Type |
Non-fusible disconnect switch |
| Factory Installed Neutral |
Neutral (factory installed) |
| Number of Poles |
2 |
| Current Rating |
200 A |
| Voltage Rating |
240 V AC |
| Enclosure Rating |
NEMA 3 |
| Motor power hp |
15 hp at 240 V AC 50-60 Hz for 1 phase motors |
Complementary
| Short-circuit current |
10 kA H or K |
| Fuse type |
H or K |
| Mounting Type |
Surface |
| Wire Size |
AWG 6...300 kcmil copper or aluminium |
| Tightening torque |
340 lbf.in (38.4 N.m) (AWG 6...300 kcmil) |
| Depth |
10.63 in (270.002 mm) |
| Width |
24 in (609.6 mm) |
| Height |
32.5 in (825.5 mm) |
| Net Weight |
65.98 lb(US) (29.93 kg) |
Environment
| Certifications |
UL Listed |
Ordering and shipping details
| Category |
US10DE100133 |
| Discount Schedule |
0DE1 |
| GTIN |
785901174523 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
10.6 in (27.0 cm) |
| Package 1 Width |
23.2 in (59.0 cm) |
| Package 1 Length |
33.9 in (86.0 cm) |
| Package 1 Weight |
69.860 lb(US) (31.688 kg) |
PRODUCT DATASHEET
DTU224NRB_Product Datasheet
