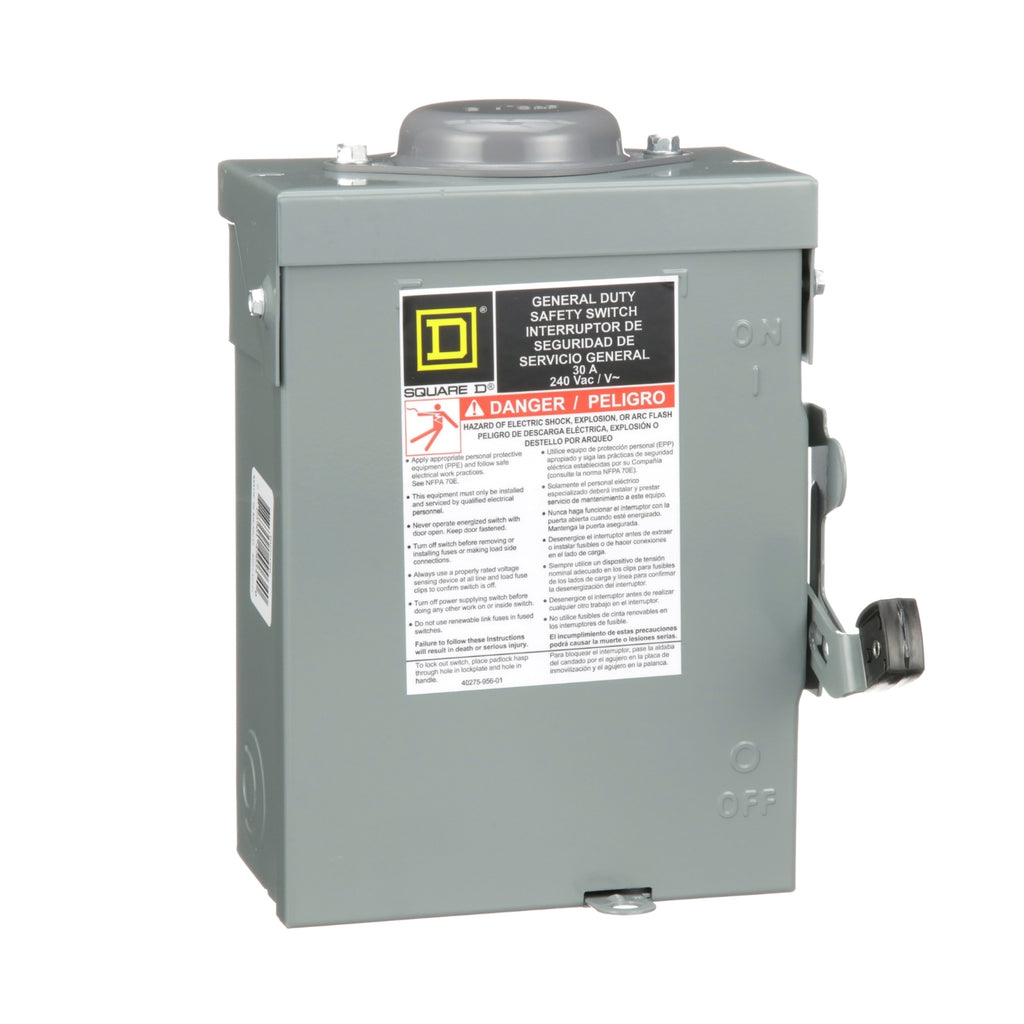

DU221RB - Schneider Electric - 30A 240V Square D Disconnect 2Pole NEMA 3R
Roll over image to zoom in Click on image to zoom
DU221RB - Schneider Electric - 30A 240V Square D Disconnect 2Pole NEMA 3R

DU221RB - Schneider Electric - 30A 240V Square D Disconnect 2Pole NEMA 3R

Square DSKU: SQDDU221RB
Price:
$54.87
Stock:
Sold out

Description

DU221RB - Schneider Electric - 30A 240V Square D Disconnect 2Pole NEMA 3R

Schneider Electric's Square D general duty safety switches are designed for residential and light commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. General duty safety switches feature a quick make, quick break operating mechanism. This single throw safety switch is a non fusible disconnect and has a rated current of 30A for 240VAC. This general duty switch has a 2 wire configuration with 2 poles. The enclosure is surface mounted and is a Type 3R with bolt on provisions. General duty safety switches are UL Listed, and meet or exceed the NEMA Standard KS1.

GENERAL SPECIFICATIONS

Main
Product Single Throw Safety Switch
Duty Rating General duty
Device Application Residential
Disconnect Type Non-fusible disconnect switch
Factory Installed Neutral None
Number of Poles 2
Current Rating 30 A
Voltage Rating 240 V AC
Enclosure Rating NEMA NEMA 3R
Motor power hp 3 hp at 240 V AC 60 Hz for 1 phase motors
Complementary
Mounting Type Surface
Electrical Connection Lugs
Wiring configuration 2 wires
Wire Size AWG 14...AWG 6 copper
AWG 12...AWG 6 aluminium
Tightening torque 30 lbf.in (3.4 N.m) 0.003…0.02 in² (2.08…13.3 mm²) (AWG 14...AWG 6)
Depth 3.75 in (95.25 mm)
Width 7.75 in (196.85 mm)
Height 9.63 in (244.60 mm)
Product Weight 17.0 lb(US) (7.7 kg)
Environment
Certifications UL listed file E2875
Ordering and shipping details
Category US1DE1A00106
Discount Schedule DE1A
GTIN 785901490340
Returnability Yes
Country of origin MX
Packing Units
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 5.400 in (13.716 cm)
Package 1 Width 7.800 in (19.812 cm)
Package 1 Length 9.900 in (25.146 cm)
Package weight(Lbs) 4.650 lb(US) (2.109 kg)
Unit Type of Package 2 CAR
Number of Units in Package 2 5
Package 2 Height 10.600 in (26.924 cm)
Package 2 Width 10.000 in (25.400 cm)
Package 2 Length 23.700 in (60.198 cm)
Package 2 Weight 24.701 lb(US) (11.204 kg)
Unit Type of Package 3 PAL
Number of Units in Package 3 160
Package 3 Height 40.000 in (101.600 cm)
Package 3 Width 40.000 in (101.600 cm)
Package 3 Length 48.000 in (121.920 cm)
Package 3 Weight 588.000 lb(US) (266.712 kg)

PRODUCT DATASHEET

DU221RB_Product Datasheet
