DU321RB - Schneider Electric - 200A 240V Square D Disconnect 3Pole NEMA 3R

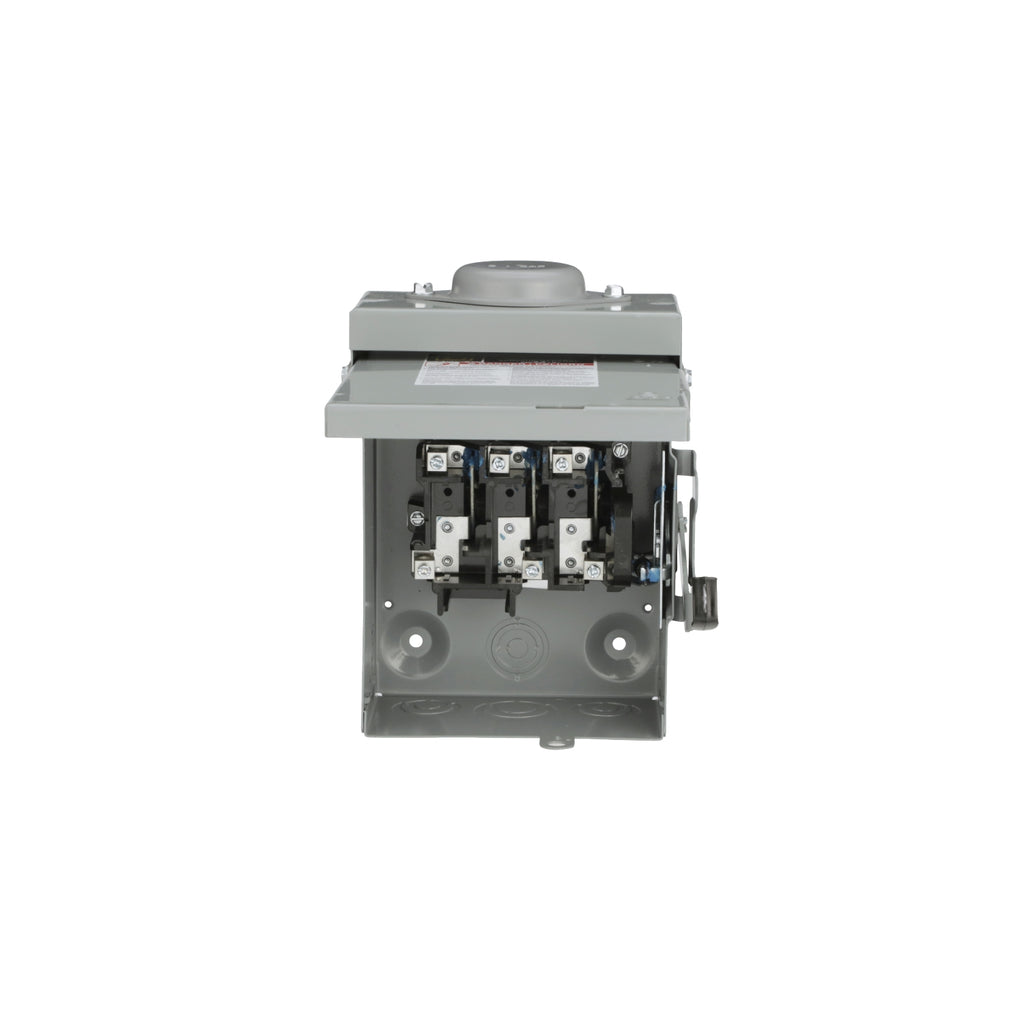

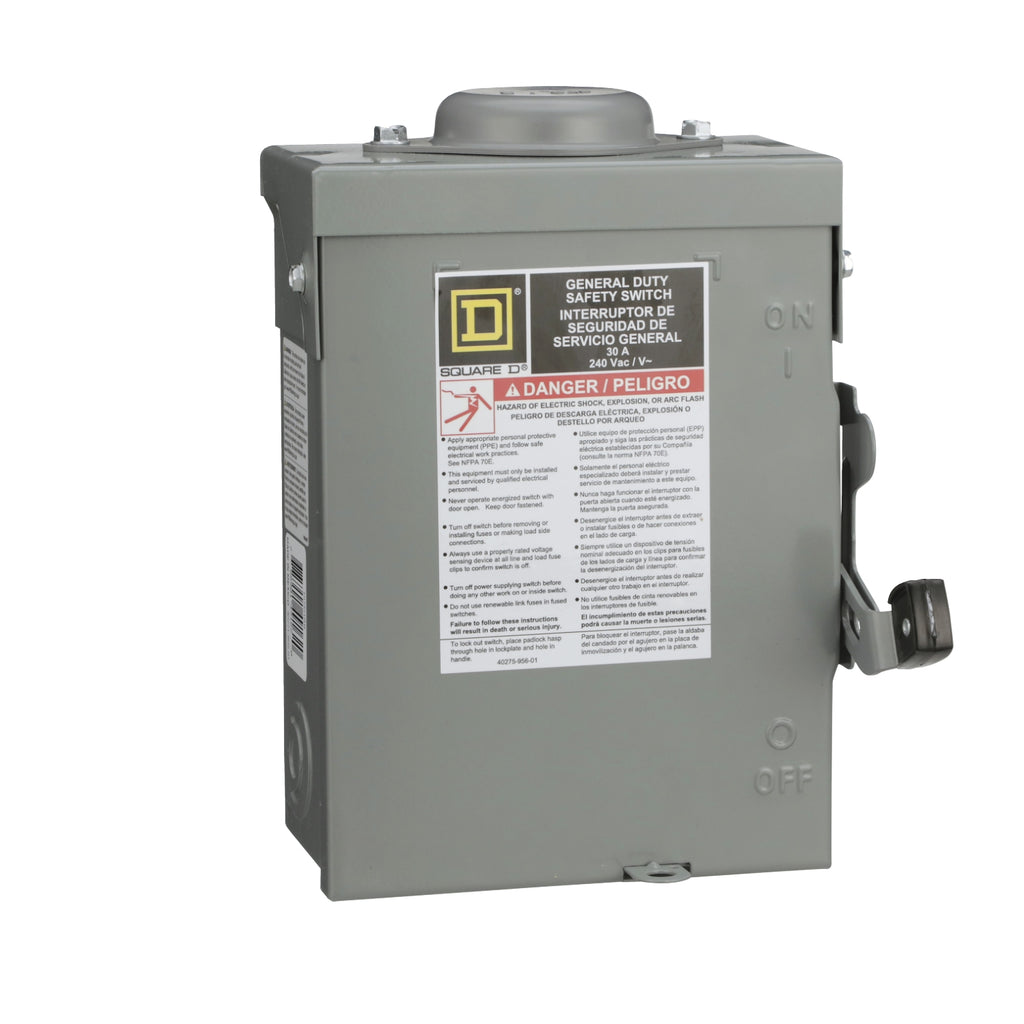

Schneider Electric's Square D general duty safety switches are designed for residential and light commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. General duty safety switches feature a quick make, quick break operating mechanism. This single throw safety switch is a non fusible disconnect and has a rated current of 30A for 240VAC. This general duty switch has a 3 wire configuration with 3 poles. The enclosure is surface mounted and is a Type 3R with bolt on provisions. General duty safety switches are UL Listed, and meet or exceed the NEMA Standard KS1.
GENERAL SPECIFICATIONS
Main
| Product |
Single Throw Safety Switch |
| Duty Rating |
General duty |
| Device Application |
Residential |
| Disconnect Type |
Non-fusible disconnect switch |
| Factory Installed Neutral |
None |
| Number of Poles |
3 |
| Current Rating |
30 A |
| Voltage Rating |
240 V AC |
| Enclosure Rating NEMA |
NEMA 3R |
| Motor power hp |
3 hp at 240 V AC 60 Hz for 1 phase motors
7.5 hp at 240 V AC 60 Hz for 3 phase motors |
Complementary
| Mounting Type |
Surface |
| Electrical Connection |
Lugs |
| Wiring configuration |
3-wire |
| Wire Size |
AWG 14...AWG 6 copper
AWG 12...AWG 6 aluminium |
| Tightening torque |
30 lbf.in (3.4 N.m) 0.003…0.02 in² (2.08…13.3 mm²) (AWG 14...AWG 6) |
| Depth |
3.75 in (95.25 mm) |
| Width |
7.75 in (196.85 mm) |
| Height |
9.63 in (244.60 mm) |
| Product Weight |
19.8 lb(US) (9 kg) |
Environment
| Certifications |
UL listed file E2875 |
Ordering and shipping details
| Category |
US1DE1A00106 |
| Discount Schedule |
DE1A |
| GTIN |
785901491620 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
10.000 in (25.400 cm) |
| Package 1 Width |
7.600 in (19.304 cm) |
| Package 1 Length |
5.200 in (13.208 cm) |
| Package weight(Lbs) |
4.850 lb(US) (2.200 kg) |
| Unit Type of Package 2 |
CAR |
| Number of Units in Package 2 |
5 |
| Package 2 Height |
10.700 in (27.178 cm) |
| Package 2 Width |
10.000 in (25.400 cm) |
| Package 2 Length |
24.000 in (60.960 cm) |
| Package 2 Weight |
26.259 lb(US) (11.911 kg) |
| Unit Type of Package 3 |
PAL |
| Number of Units in Package 3 |
150 |
| Package 3 Height |
44.000 in (111.760 cm) |
| Package 3 Width |
40.000 in (101.600 cm) |
| Package 3 Length |
48.000 in (121.920 cm) |
| Package 3 Weight |
631.0010 lb(US) (286.217 kg) |
PRODUCT DATASHEET
DU321RB_Product Datasheet
