Description

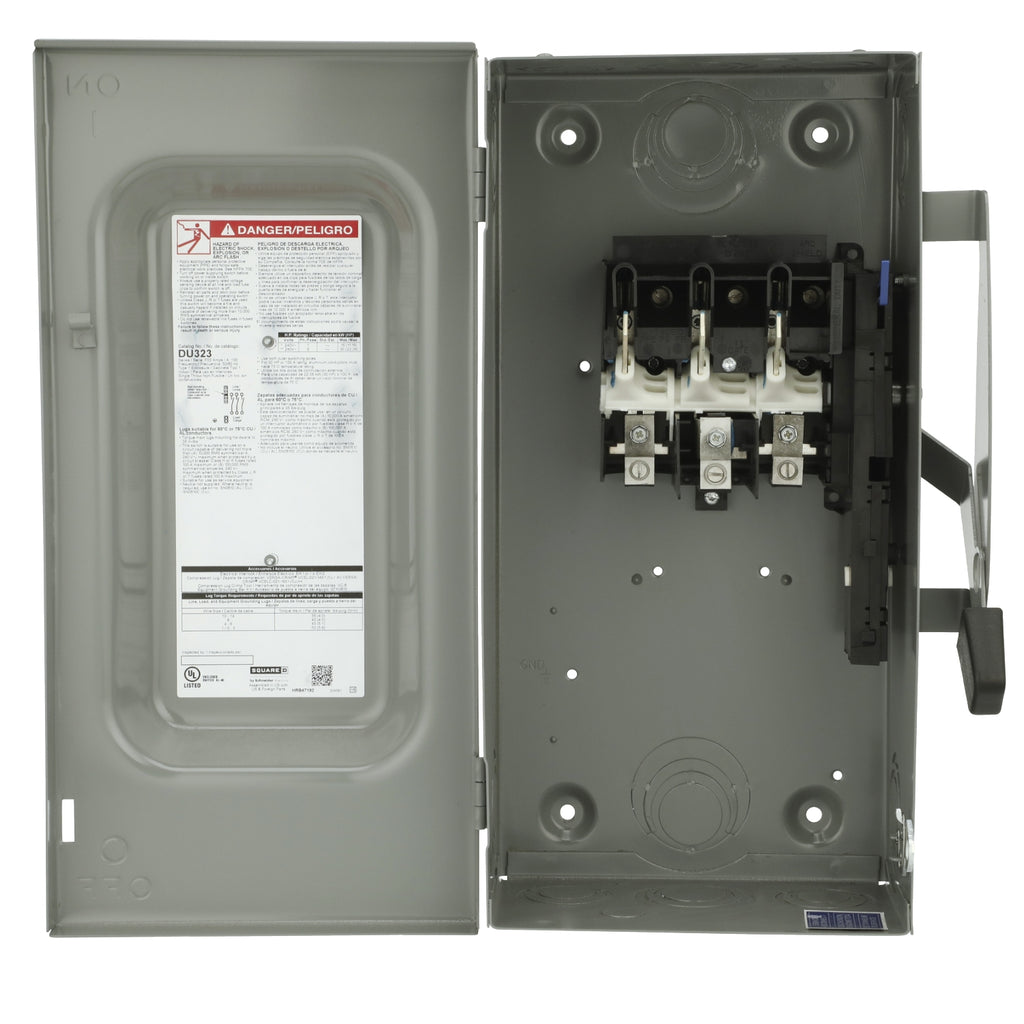

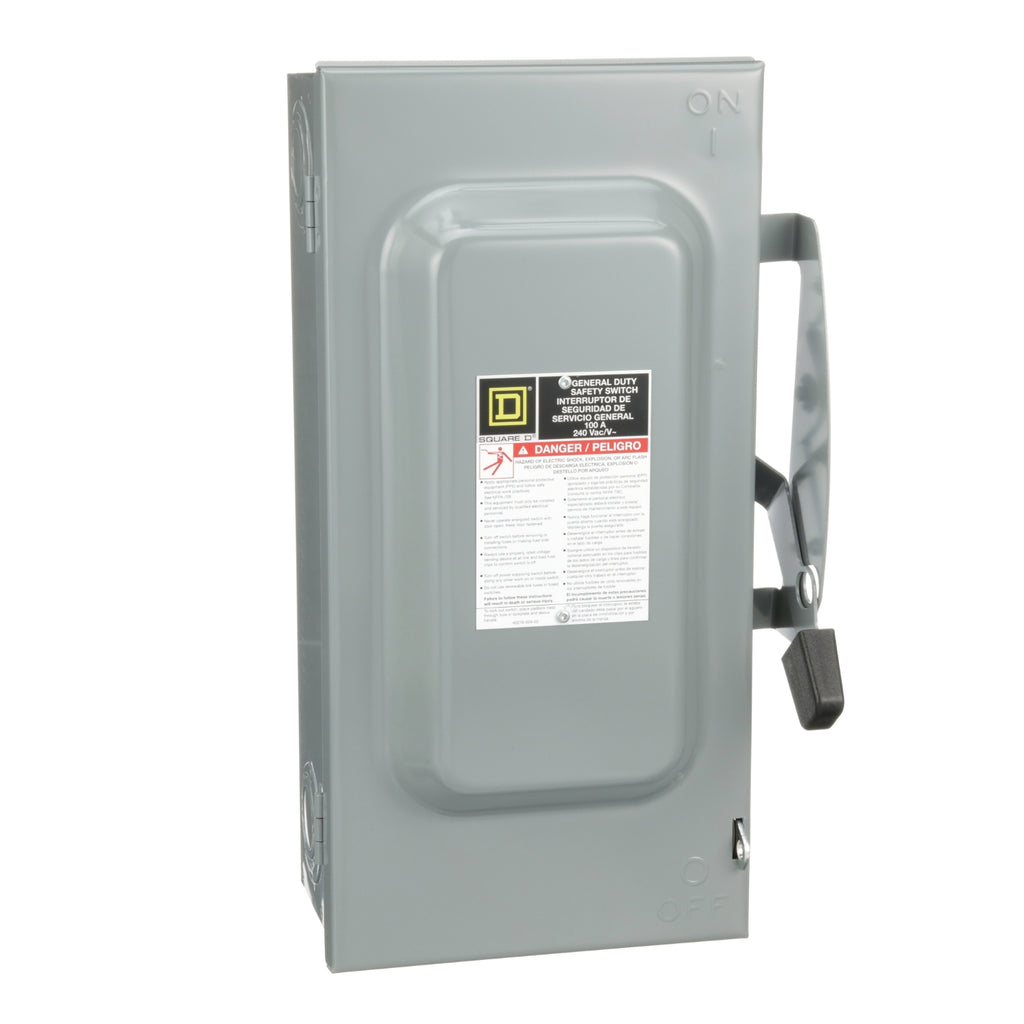

DU323 - Schneider Electric - 200A 240V Square D Disconnect 3Pole NEMA 3R
Schneider Electric's Square D general duty safety switches are designed for residential and light commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. General duty safety switches feature a quick make, quick break operating mechanism. This single throw safety switch is a non fusible disconnect and has a rated current of 100A for 240VAC. This general duty switch has a 3 wire configuration with 3 poles. The enclosure is surface mounted and is a Type 1. General duty safety switches are UL Listed, and meet or exceed the NEMA Standard KS1.
GENERAL SPECIFICATIONS
| Product | Single Throw Safety Switch |
|---|---|
| Duty Rating | General duty |
| Device Application | Residential |
| Disconnect Type | Non-fusible disconnect switch |
| Factory Installed Neutral | None |
| Number of Poles | 3 |
| Current Rating | 100 A |
| Voltage Rating | 240 V AC |
| Enclosure Rating NEMA | NEMA 1 |
| Motor power hp | 15 hp at 240 V AC 60 Hz for 1 phase motors 30 hp at 240 V AC 60 Hz for 3 phase motors |
| Mounting Type | Surface |
|---|---|
| Electrical Connection | Lugs |
| Wiring configuration | 3-wire |
| Wire Size | AWG 14...AWG 1 copper AWG 12...AWG 1 aluminium |
| Tightening torque | 35 lbf.in (4.0 N.m) 0.003…0.008 in² (2.08…5.26 mm²) (AWG 14...AWG 10) 35 lbf.in (4.0 N.m) (AWG 14...AWG 10) 40 lbf.in (4.5 N.m) 0.01 in² (8.37 mm²) (AWG 8) 45 lbf.in (5.08 N.m) 0.02…0.03 in² (12.3…21.12 mm²) (AWG 6...AWG 4) 50 lbf.in (5.6 N.m) (AWG 3...AWG 1) |
| Depth | 6.5 in (165.1 mm) |
| Width | 10.5 in (266.7 mm) |
| Height | 17.5 in (444.5 mm) |
| Product Weight | 15.4 lb(US) (7 kg) |
| Certifications | UL listed file E2875 |
|---|
| Category | US1DE1A00006 |
|---|---|
| Discount Schedule | DE1A |
| GTIN | 785901491804 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 7.500 in (19.050 cm) |
| Package 1 Width | 10.800 in (27.432 cm) |
| Package 1 Length | 20.100 in (51.054 cm) |
| Package weight(Lbs) | 13.999 lb(US) (6.350 kg) |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 40.000 in (101.600 cm) |
| Package 2 Width | 40.000 in (101.600 cm) |
| Package 2 Length | 48.000 in (121.920 cm) |
| Package 2 Weight | 574.0004 lb(US) (260.362 kg) |
