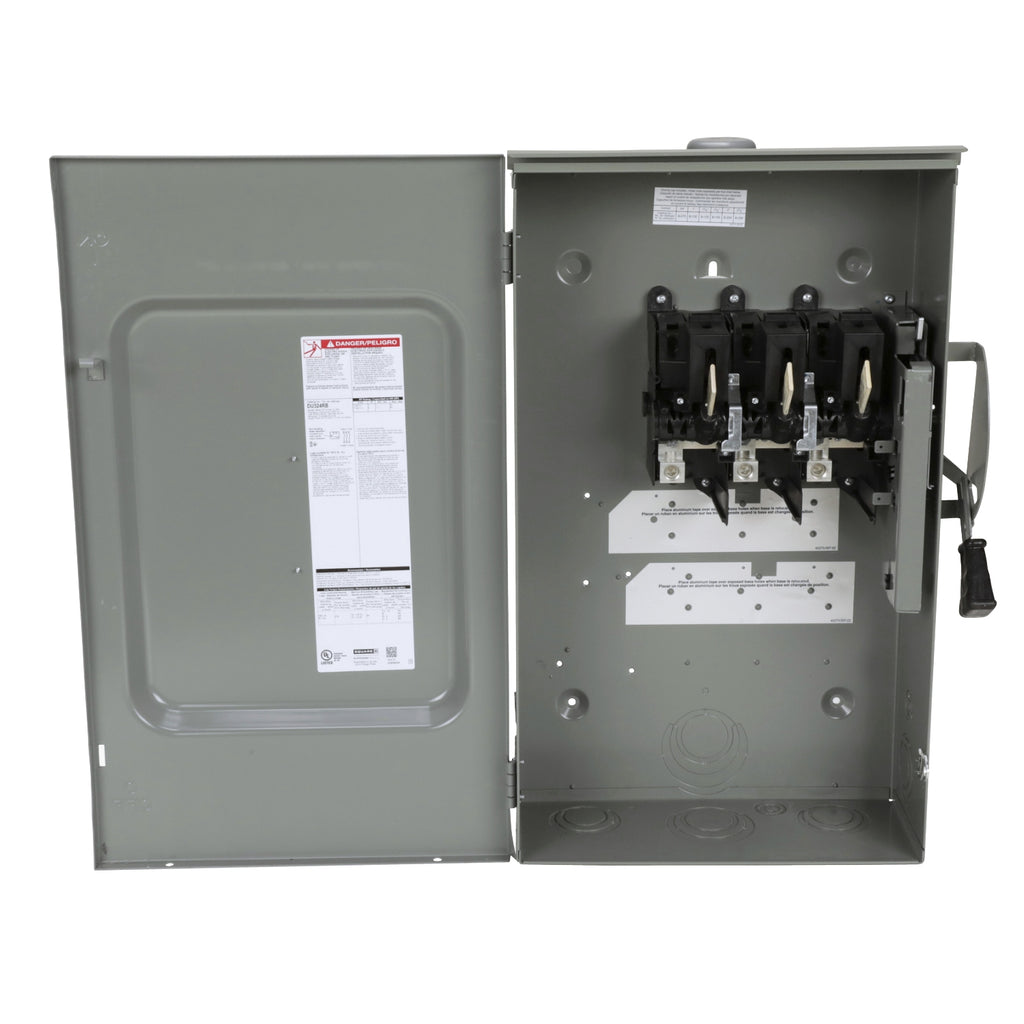

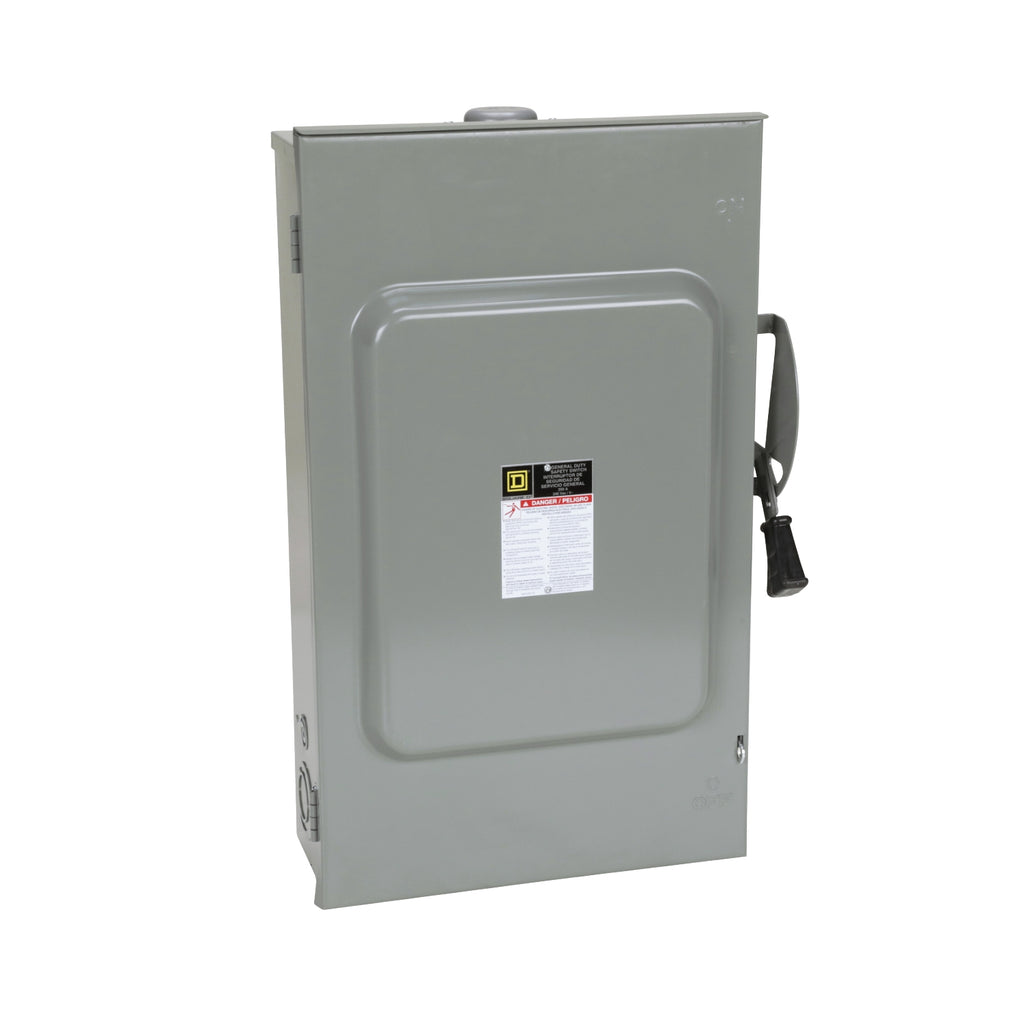

DU324RB - Schneider Electric - 400A 600V Square D Disconnect 3Pole NEMA 3R
Schneider Electric's Square D general duty safety switches are designed for residential and light commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. General duty safety switches feature a quick make, quick break operating mechanism. This single throw safety switch is a non fusible disconnect and has a rated current of 200A for 240VAC. This general duty switch has a 3 wire configuration with 3 poles. The enclosure is surface mounted and is a Type 3R with bolt on provisions. General duty safety switches are UL Listed, and meet or exceed the NEMA Standard KS1.
GENERAL SPECIFICATIONS
Main
| Product |
Single Throw Safety Switch |
| Duty Rating |
General duty |
| Device Application |
Residential |
| Disconnect Type |
Non-fusible disconnect switch |
| Factory Installed Neutral |
None |
| Number of Poles |
3 |
| Current Rating |
200 A |
| Voltage Rating |
240 V AC |
| Enclosure Rating NEMA |
NEMA 3R |
| Motor power hp |
15 hp at 240 V AC 60 Hz for 1 phase motors
60 hp at 240 V AC 60 Hz for 3 phase motors |
Complementary
| Mounting Type |
Surface |
| Electrical Connection |
Lugs |
| Wiring configuration |
3-wire |
| Wire Size |
AWG 6...250 kcmil aluminium/copper |
| Tightening torque |
275 lbf.in (31.07 N.m) (AWG 6...250 kcmil) |
| Depth |
8.25 in (209.55 mm) |
| Width |
19 in (482.6 mm) |
| Height |
29 in (736.6 mm) |
| Product Weight |
53.00 lb(US) (24.04 kg) |
Environment
| Certifications |
UL listed file E2875 |
Ordering and shipping details
| Category |
US1DE1A00106 |
| Discount Schedule |
DE1A |
| GTIN |
785901491880 |
| Returnability |
Yes |
| Country of origin |
US |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
8.700 in (22.098 cm) |
| Package 1 Width |
19.400 in (49.276 cm) |
| Package 1 Length |
30.800 in (78.232 cm) |
| Package weight(Lbs) |
44.851 lb(US) (20.344 kg) |
| Unit Type of Package 2 |
PAL |
| Number of Units in Package 2 |
15 |
| Package 2 Height |
46.00 in (116.84 cm) |
| Package 2 Width |
40.0 in (101.6 cm) |
| Package 2 Length |
48.00 in (121.92 cm) |
| Package 2 Weight |
652.00004 lb(US) (295.742 kg) |
