Description

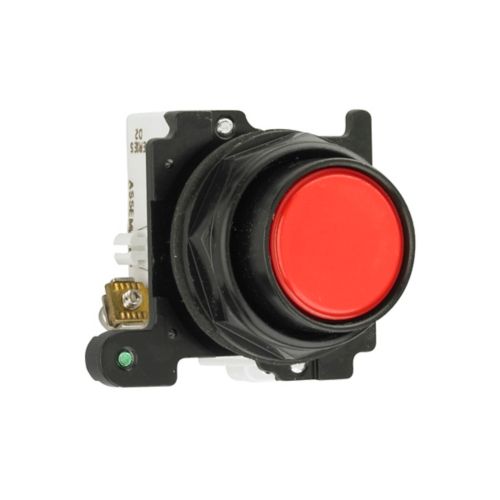

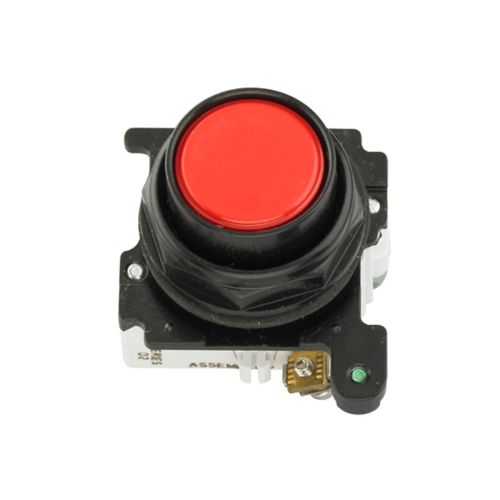

E34PB2 - Eaton - 30.5 Mm E34 Series Watertight/Oiltight Corrosion Resistant Pushbutton
Eaton, 30.5 mm Watertight/Oiltight Corrosion Resistant Pushbutton, Red, Plastic Actuator, Non-illuminated, Flush mounting, NEMA 3, 3R, 4, 4X, 12, 13, Momentary,30.5 mm, Flush Pushbutton, E34 Series
GENERAL SPECIFICATIONS
| Product Name |
Eaton E34 pushbutton
|
| Catalog Number |
E34PB2
|
| UPC |
782113704296
|
| Product Length/Depth |
1.9 in
|
| Product Height |
2.3 in
|
| Product Width |
1.9 in
|
| Product Weight |
0.25 lb
|
| Compliances |
CE Marked
FDA 3-A |
| Certifications |
CSA Certified
UL Listed |
| Product Type |
Pushbutton
|
PRODUCT SPECIFICATIONS
| Type |
30.5 mm, Square Multifunction
|
| Actuator color |
Red
|
| Actuator material |
Plastic
|
| Operating mode |
Momentary
|
| Illumination |
Non-illuminated
|
| Series |
E34
|
| Mounting method |
Flush
|
| Rating |
NEMA 3R
NEMA 4X NEMA 12 NEMA 4 NEMA 13 NEMA 3 |
| Degree of protection |
NEMA 4
NEMA 4X NEMA 12 NEMA 3 NEMA 13 NEMA 3R |
| Product category |
Flush pushbutton
|
| Size |
30.5 mm
|
