Description

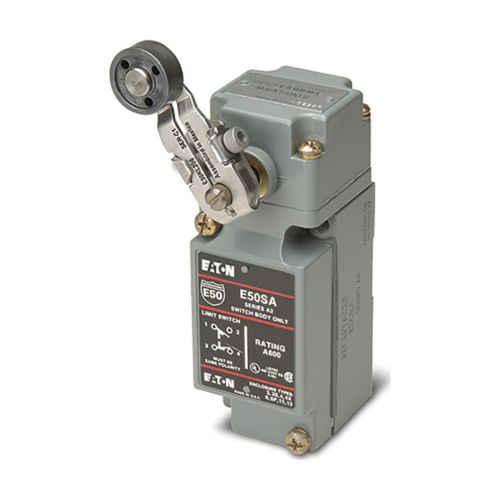

E50AW12 - Eaton - Standard Duty E50 NEMA Limit Switch
E50 NEMA Limit Switch, Wobble Head, Spring Ret, Standard Duty,14-250F(-10-121C),1NO-1NC,10A@240Vac,1A@250Vdc, Mech 10M Elec 1M cy full load, 8000 cy/hr, Screw term, 1/2NPT cond, NEMA 1,3,3S,4,4X,6,6P,13, IP67, Diec Zn, UL, CSA, CE, w E50KW2 lev
GENERAL SPECIFICATIONS
| Product Name | Eaton E50 NEMA heavy-duty plug-in limit switch |
| Catalog Number | E50AW12 |
| UPC | 782113344294 |
| Product Length/Depth | 1.54 in |
| Product Height | 4.93 in |
| Product Width | 1.78 in |
| Product Weight | 1.1063 lb |
| Compliances | RoHS Compliant CE Marked |
| Certifications | UL Listed CSA Certified |
| Product Type | Heavy duty plug-in limit switch |
PRODUCT SPECIFICATIONS
| Contact Rating | 10A at 240Vac, 1A at 125Vdc |
| Enclosure material | Die-cast zinc |
| Connection | Screw terminal |
| Contact configuration | 1 NO-1 NC |
| Switch type | Wobble stick |
| Operating temperature - max | 250 degF |
| Operating temperature - min | 14 degF |
| Environmental rating | NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67 |
| Maximum AC current | 10 A |
| Maximum DC current | 1 A |
