E50DL1 - Eaton Cutler Hammer - E50 Nema Heavy Duty Plug-In Limit Switch

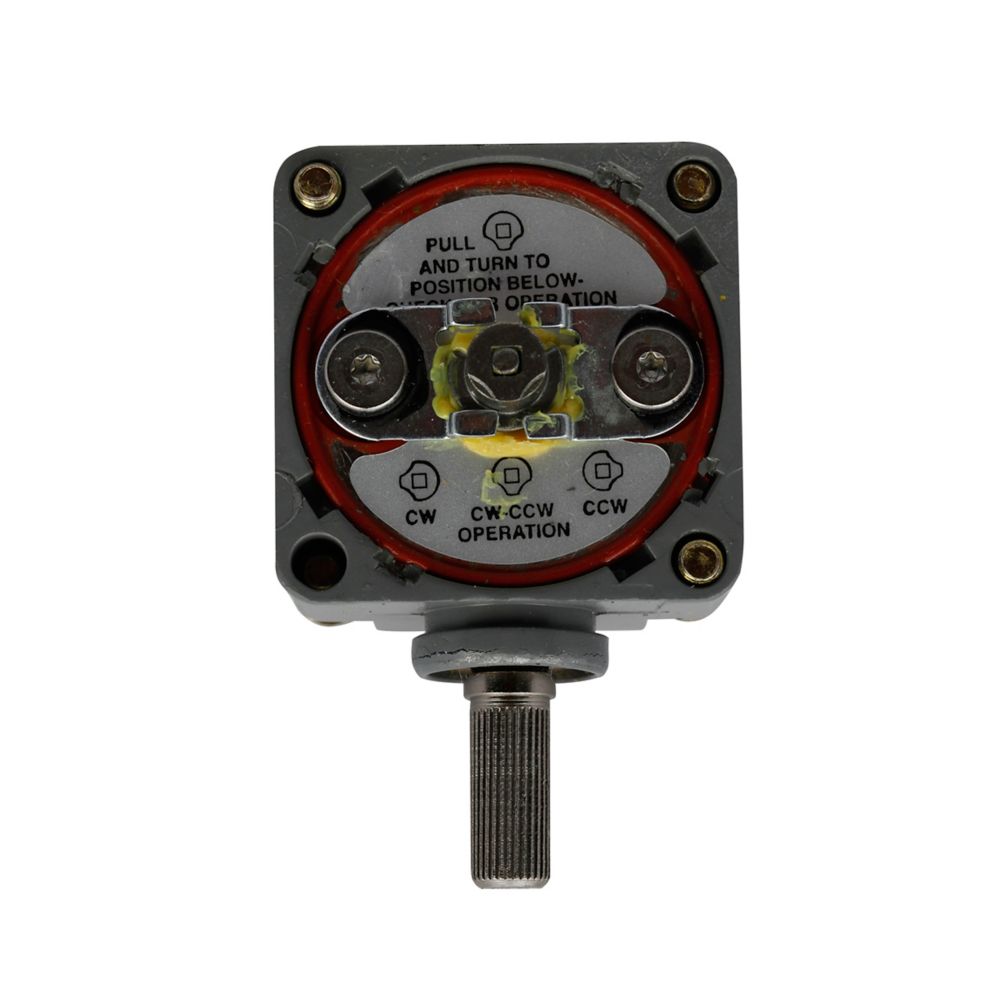

The E50DL1 is a replacement operating head for the E50 series, featuring a low-force side rotary, spring-return actuator that trips at 15°, ideal for sensitive actuation needs. Its die-cast zinc construction with standard Viton seals ensures reliability in chemically aggressive environments across NEMA 1, 3, 4, 6P, IP67 ratings
GENERAL SPECIFICATIONS
| Product Name |
Eaton E50 NEMA heavy duty plug-in limit switch
|
| Catalog Number |
E50DL1
|
| UPC |
782113290577
|
| Product Length/Depth |
1.05 in
|
| Product Height |
2.46 in
|
| Product Width |
1.54 in
|
| Product Weight |
0.11 lb
|
| Compliances |
RoHS Compliant
CE Marked |
| Certifications |
CSA Certified
UL Recognized UL Listed |
PRODUCT SPECIFICATIONS
| Enclosure material |
Die cast zinc
|
| Actuator |
Side rotary low force spring return
|
| Series |
E50 heavy duty plug in
|
| Operating temperature - max |
175 °F
|
| Operating temperature - min |
-40 °F
|
| Environmental rating |
NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
|
