Description

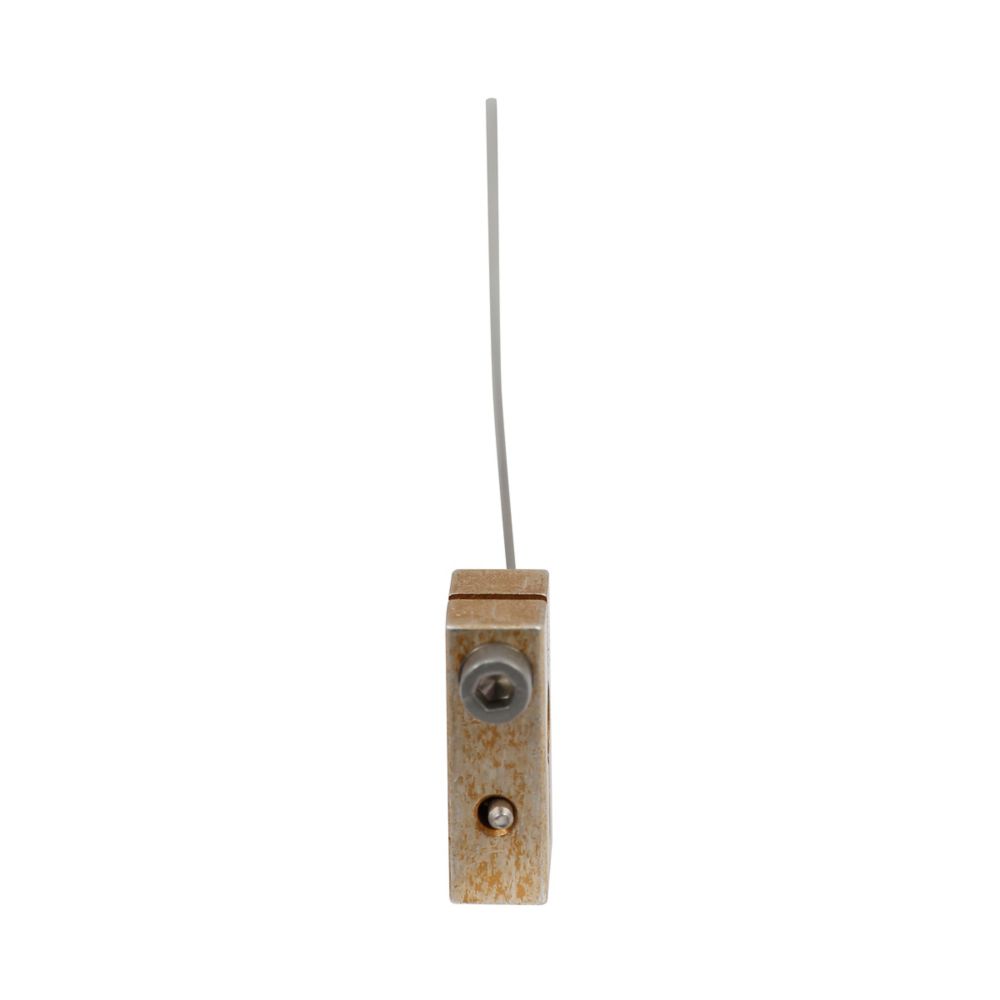

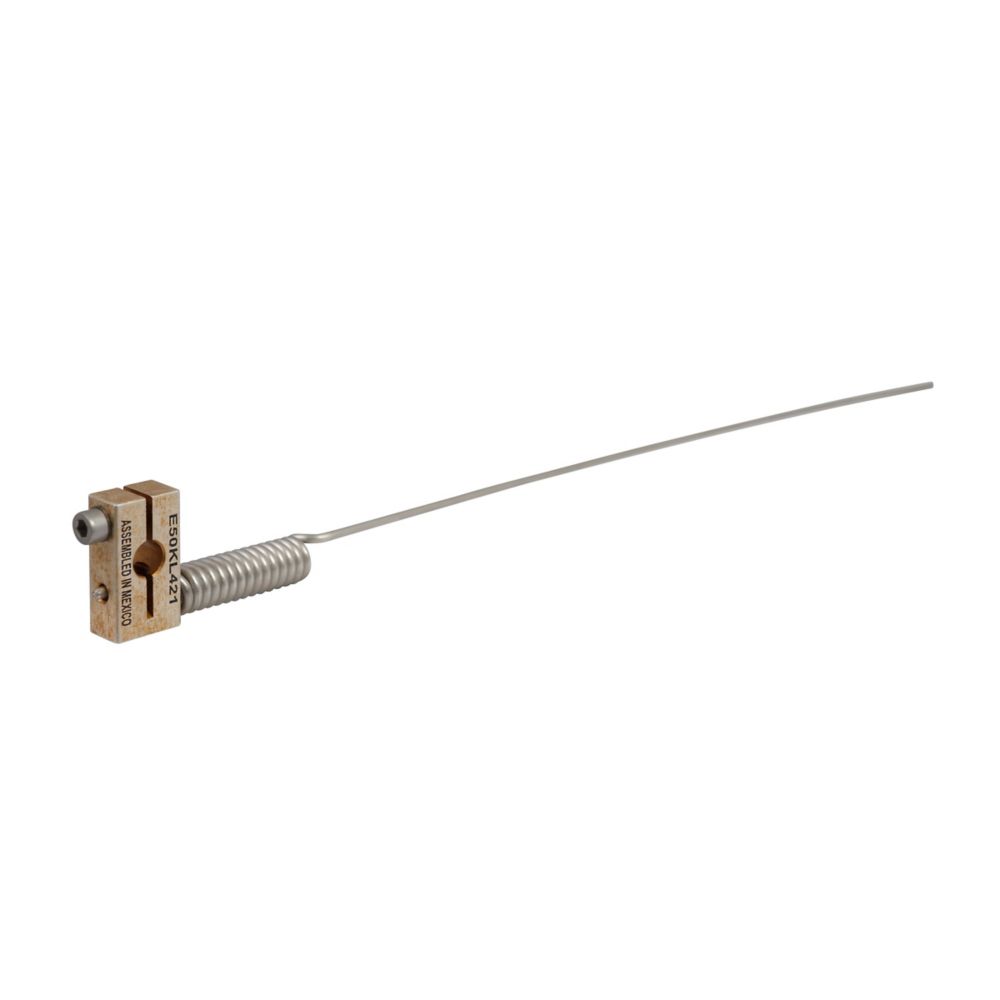

E50KL421 - Eaton Cutler Hammer- E50 Nema Heavy Duty Plug-In Limit Switch Operator
E50 NEMA Limit Switch,Lever,Rotary lever,rod type,12 inch length Stainless steel spring rod,Aluminum clamp,USH,14-250F(-10-121C),UL,CSA,CE.
GENERAL SPECIFICATIONS
| Product Name |
Eaton E50 NEMA heavy duty plug-in limit switch operator
|
| Catalog Number |
E50KL421
|
| UPC |
782113298535
|
| Product Length/Depth |
11.94 in
|
| Product Height |
0.38 in
|
| Product Width |
1.12 in
|
| Product Weight |
0.3 lb
|
| Compliances |
RoHS Compliant
CE Marked |
| Certifications |
UL Listed
CSA Certified CE |
| Product Type |
Heavy-duty plug-in limit switch accessory
|
PRODUCT SPECIFICATIONS
| Used with |
Used with side rotary
|
| Type |
Operating Lever
|
| Cable type |
SOOW-A
|
| Actuator |
Spring rod
|
| Series |
E50
|
| Switch type |
Lever for side rotary switches
|
| Operating temperature - max |
200 °F
|
| Operating temperature - min |
10 °F
|
| Environmental rating |
NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
|
| Material |
Stainless steel
Rod: Stainless steel Clamp: Aluminum |
