Description

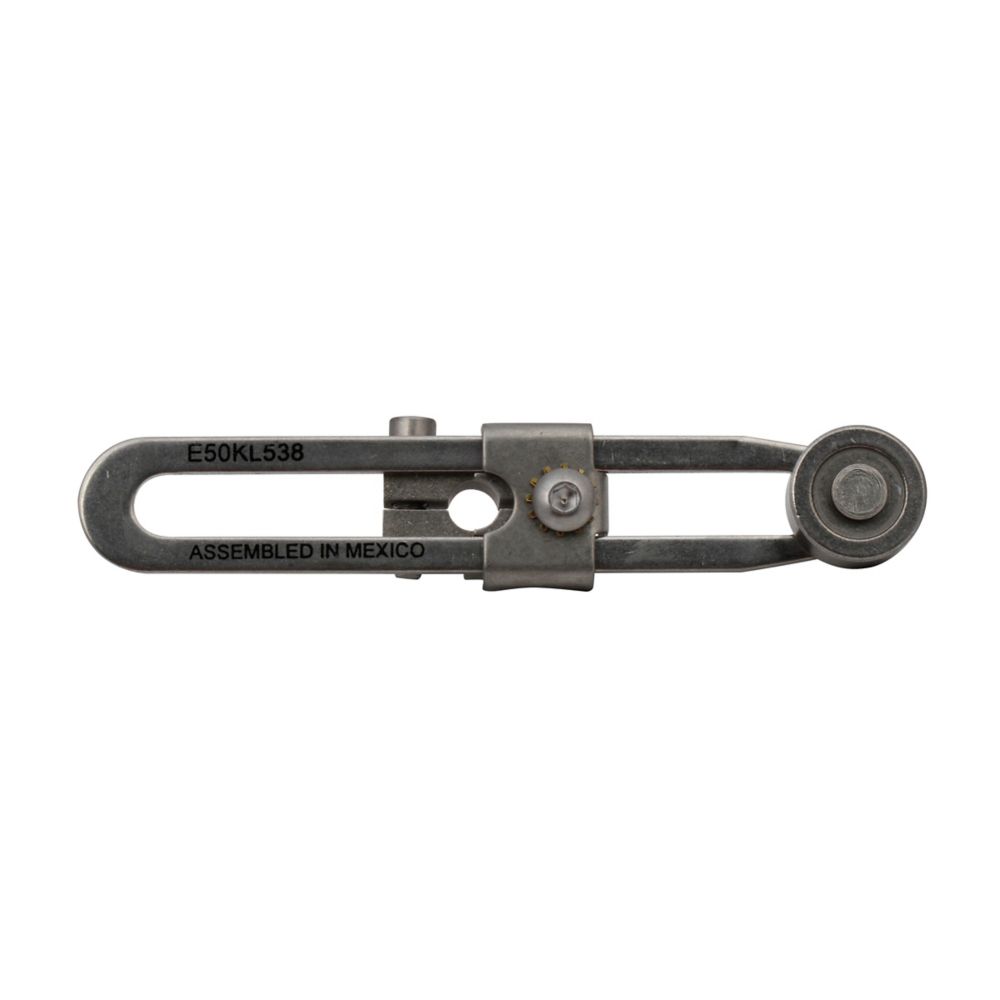

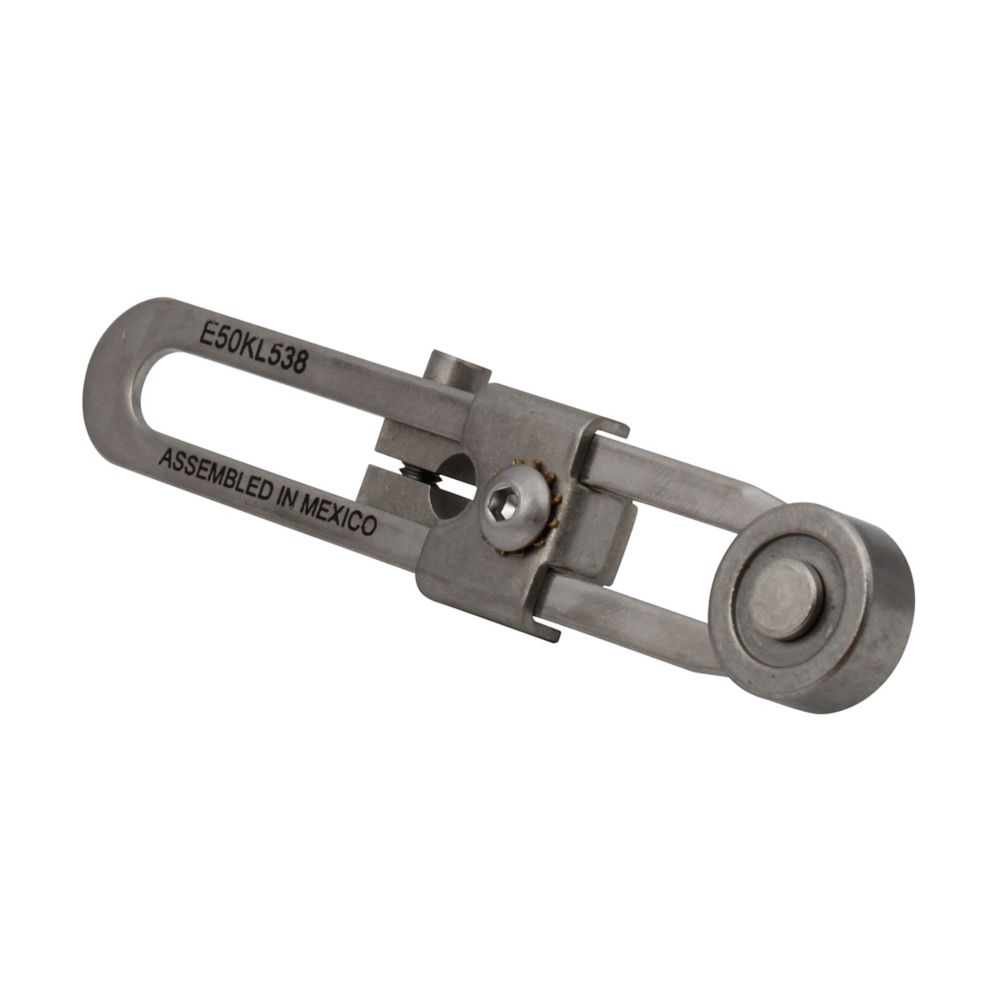

E50KL538 - Eaton Cutler Hammer - E50 Nema Heavy Duty Plug-In Limit Switch Operator
E50 NEMA Limit Switch,Lever,Rotary lever,adjustable,1.0 to 3.75 inch length Type 303 Stainless steel lever,Metal roller 0.75 inch diameter 0.32 inch width,14-250F(-10-121C),UL,CSA,CE.
GENERAL SPECIFICATIONS
| Product Name | Eaton E50 NEMA heavy duty plug-in limit switch operator |
| Catalog Number | E50KL538 |
| UPC | 782113290928 |
| Product Length/Depth | 4.6 in |
| Product Height | 0.84 in |
| Product Width | 0.75 in |
| Product Weight | 0.15 lb |
| Compliances | RoHS Compliant CE Marked |
| Certifications | UL Listed CSA Certified CE |
| Product Type | Heavy-duty plug-in limit switch accessory |
PRODUCT SPECIFICATIONS
| Used with | Used with side rotary |
| Special features | Adjustable length |
| Type | Operating Lever |
| Cable type | SOOW-A |
| Actuator | Roller lever |
| Series | E50 |
| Switch type | Lever for side rotary switches |
| Operating temperature - max | 200 degF |
| Operating temperature - min | 10 degF |
| Environmental rating | NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67 |
| Material | Metal Roller: Metal Lever: Stainless steel |
