Description

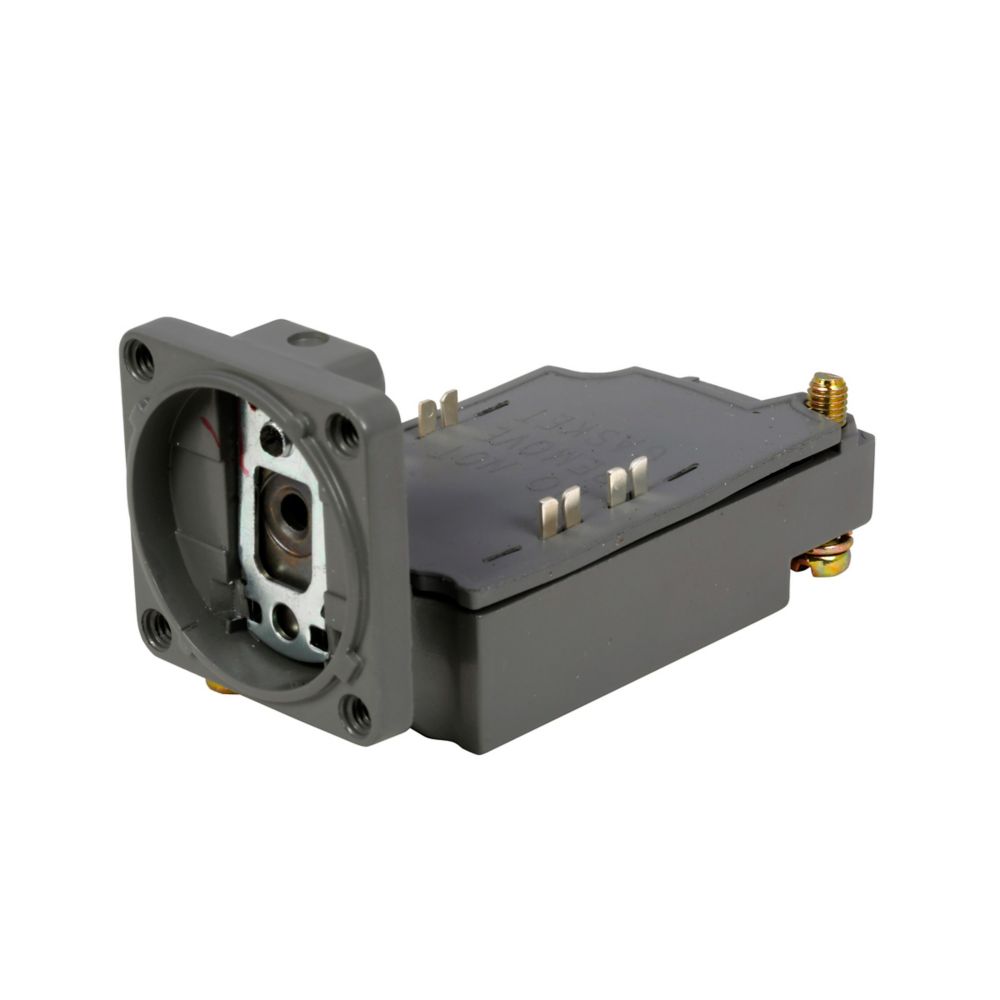

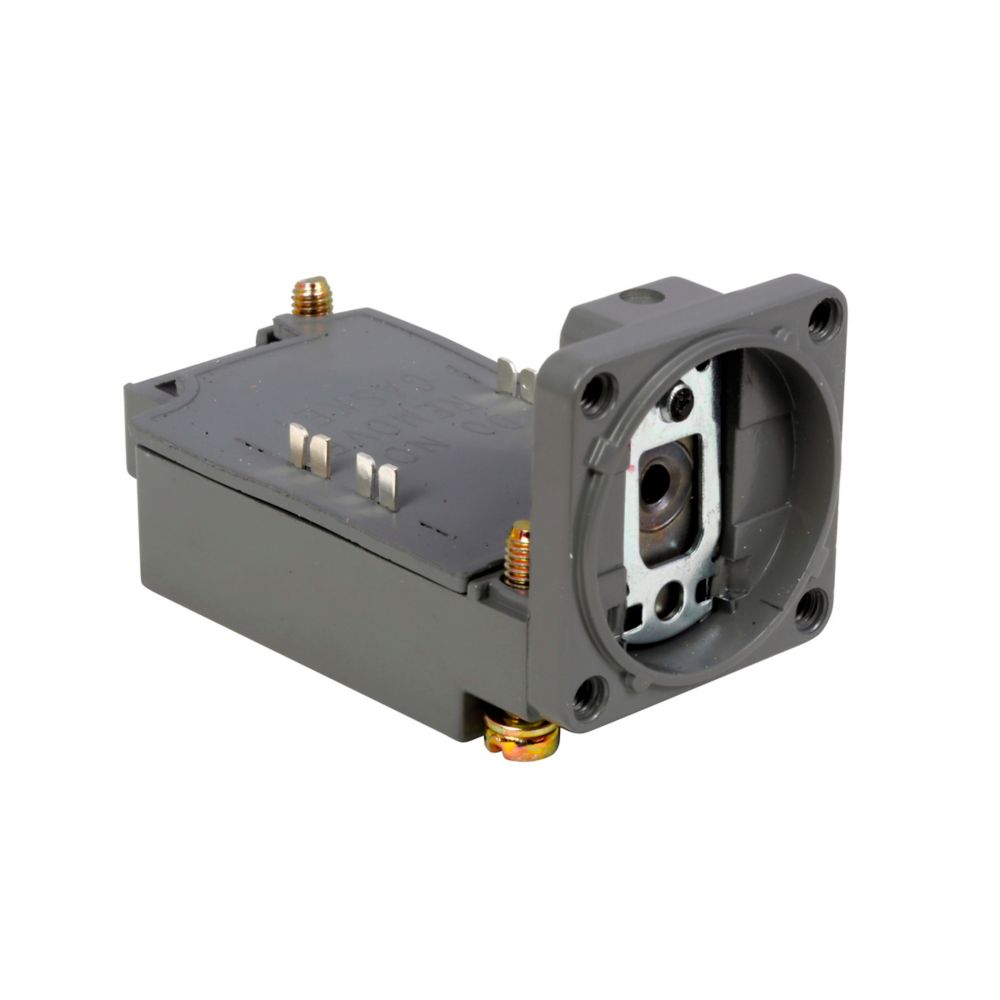

E50SA - Eaton Cutler-Hammer Motor Control Parts and Accessories
E50 NEMA Limit Switch,Switchbody,1 pole (5-term),14-250F(-10-121C),1NO-1NC,10A@240Vac,1A@250Vdc,Mech 10M Elec 1M cy,8000 cy/hr,1/2NPT cond,NEMA 1,3,3S,4,4X,6,6P,13,IP67,Die Zn,UL,CSA,CE.
GENERAL SPECIFICATIONS
| Product Name | Eaton E50 NEMA heavy duty plug-in limit switch |
| Catalog Number | E50SA |
| UPC | 782113290676 |
| Product Length/Depth | 4.5 in |
| Product Height | 1.75 in |
| Product Width | 3.25 in |
| Product Weight | 0.41 lb |
| Compliances | RoHS Compliant CE Marked |
| Certifications | UL Recognized CSA Certified UL Listed |
| Product Type | Heavy-duty plug-in limit switch |
Product specifications
| Type | Switch Body |
| Contact Rating | 10A at 12 Vac, 1A at 125 Vdc |
| Cable type | SOOW-A |
| Enclosure material | Die cast zinc |
| Contact configuration | 1 NO-1 NC |
| Series | E50 heavy duty plug in E50 |
| Operating temperature - max | 250 degF |
| Operating temperature - min | -40 degF |
| Environmental rating | NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67 |
| Maximum AC current | 10 A |
| Maximum DC current | 1 A |
| Number of poles | Single-pole |
