Description

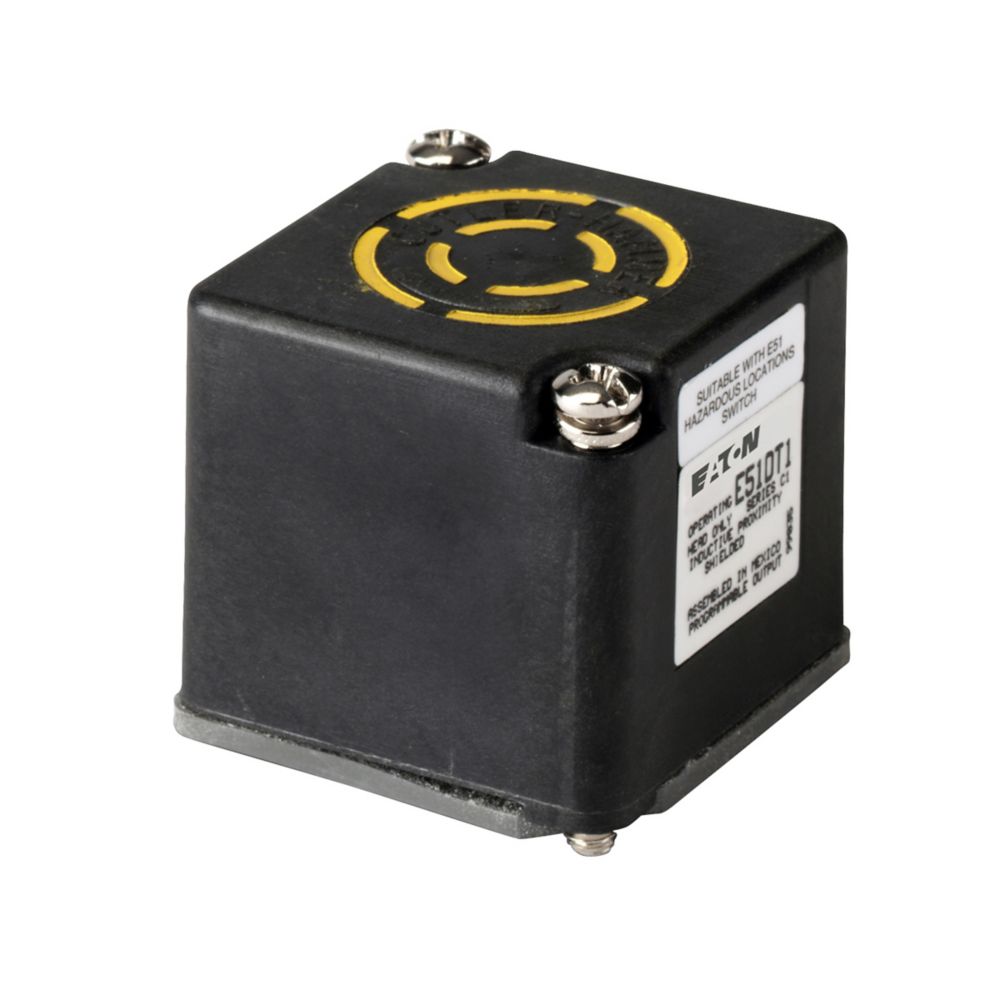

E51DT1 - Eaton Cutler Hammer - E51 Nema Limit Switch Inductive Proximity Sensor
The E51DT1 is a shielded, top-sensing inductive proximity sensor head for the E51 series, sharing the same 0.51 in sensing capability. Encased in a sturdy plastic body, it maintains environmental protection (NEMA 3 to 13 and IP67), UL/CSA certification, and a one-year warranty, ideal for compact industrial switch integration.
GENERAL SPECIFICATIONS
| Product Name |
Eaton E51 NEMA limit switch inductive proximity sensor
|
| Catalog Number |
E51DT1
|
| UPC |
782113344904
|
| Product Length/Depth |
1.38 in
|
| Product Height |
1.51 in
|
| Product Width |
1.51 in
|
| Product Weight |
0.1 lb
|
| Certifications |
UL Listed
CSA Certified |
PRODUCT SPECIFICATIONS
| Actuator function |
Shielded
|
| Frequency rating |
Standard
|
| Enclosure material |
Plastic
|
| Series |
E51
|
| Environmental rating |
NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67
|
| Operating temperature - max |
158 °F
|
| Operating temperature - min |
-13 °F
|
