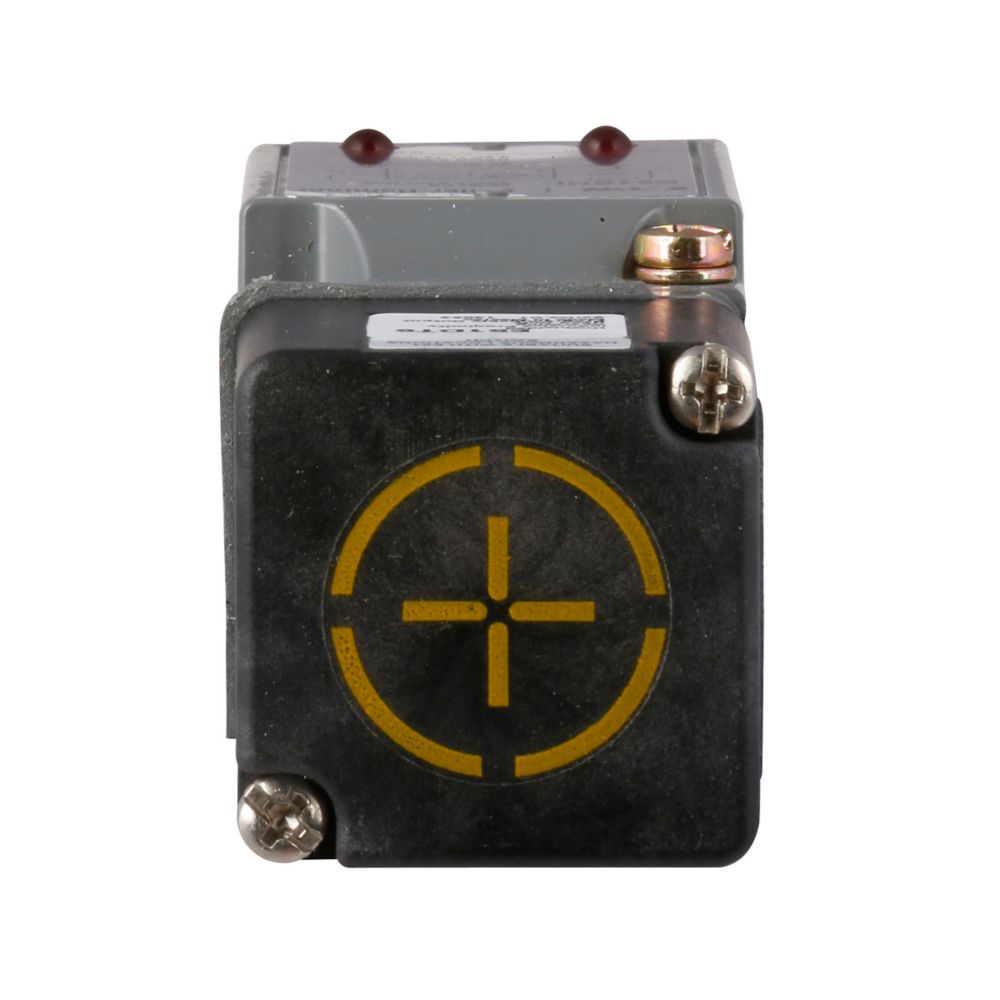

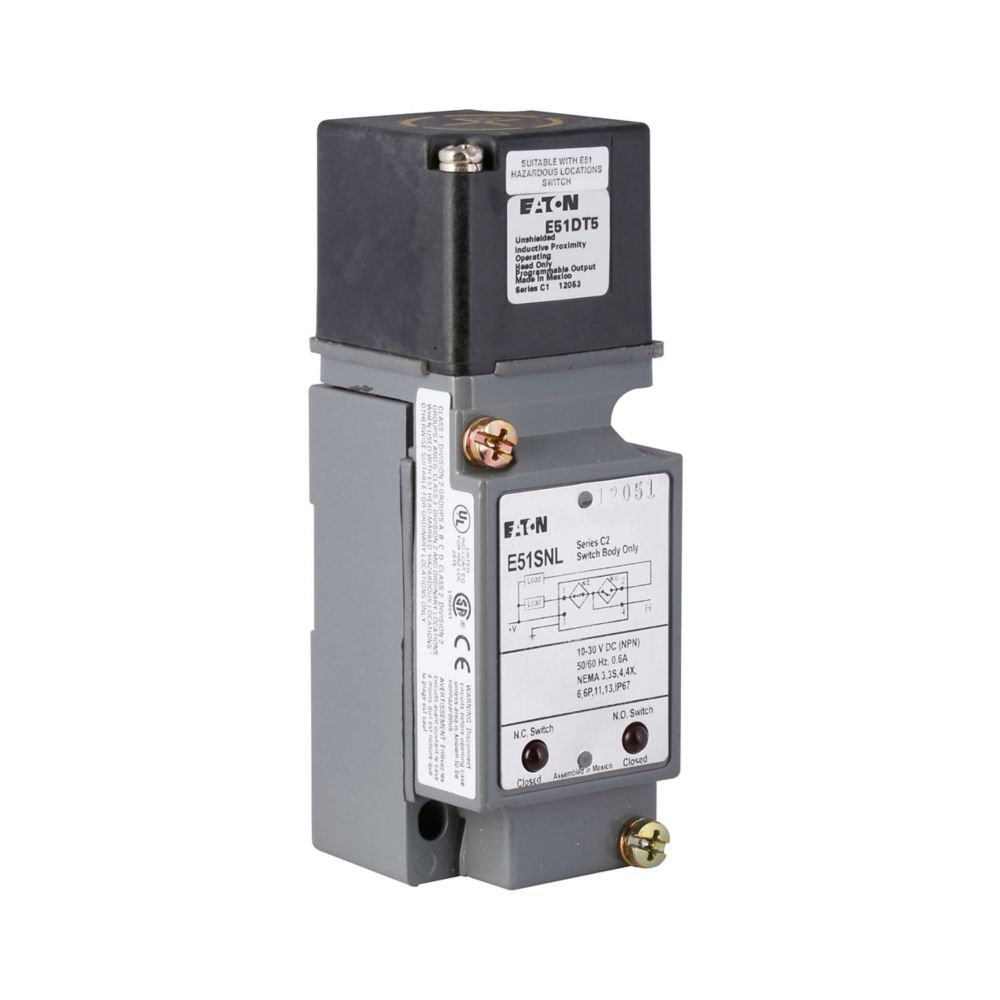

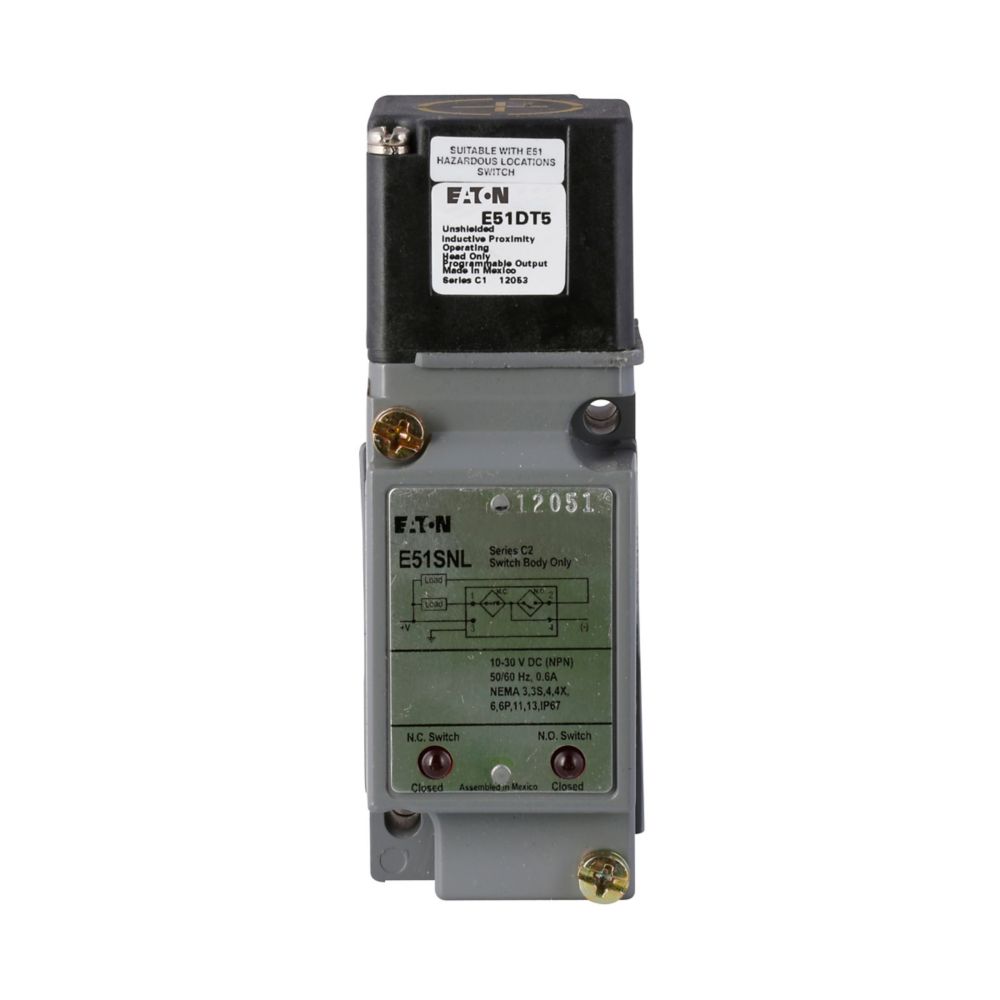

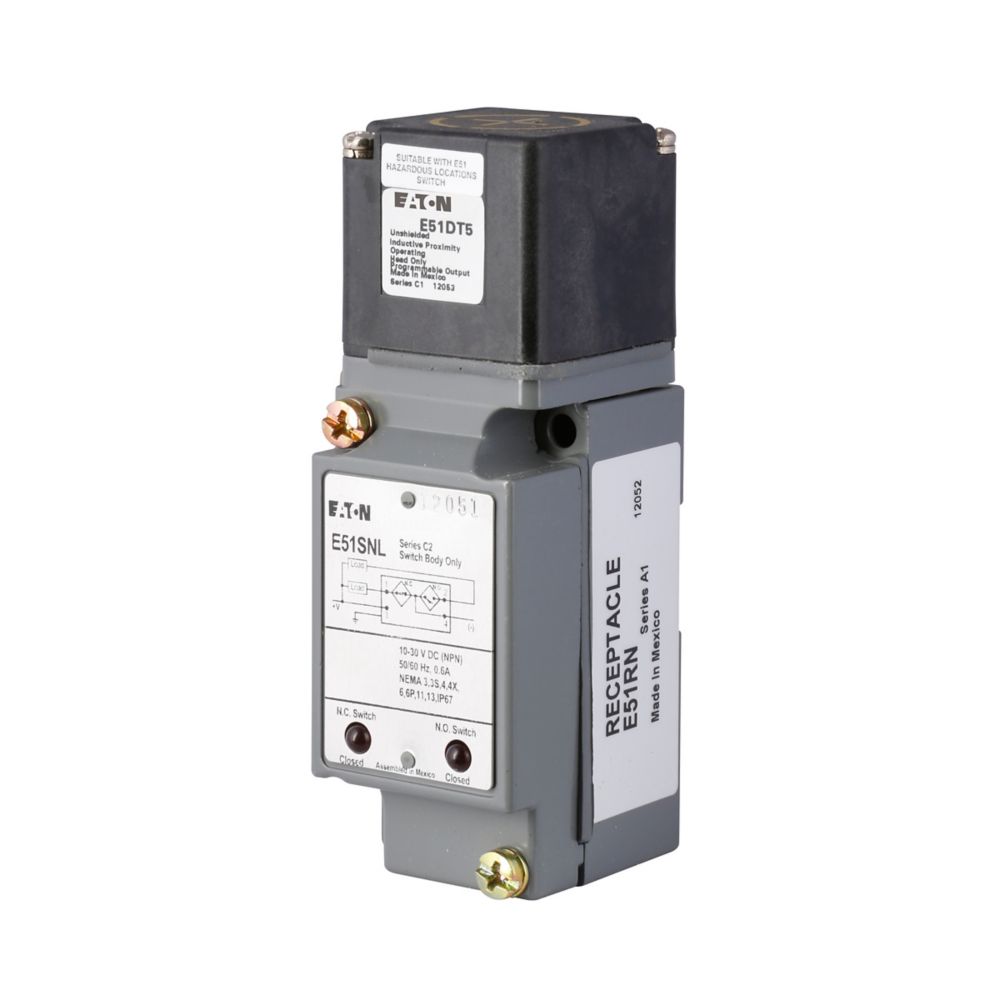

E51DT5 - Eaton Cutler Hammer - E51 Nema Limit Switch Inductive Proximity Sensor
The E51DT5 is an unshielded, top-sensing version of the E51 inductive sensor, also featuring a 0.94 in detection range. It shares the same rugged construction, comprehensive environmental protection, and certification credentials as other E51 sensor heads—making it suitable for demanding industrial environments.
GENERAL SPECIFICATIONS
| Product Name |
Eaton E51 NEMA limit switch inductive proximity sensor
|
| Catalog Number |
E51DT5
|
| UPC |
782113358963
|
| Product Length/Depth |
1.38 in
|
| Product Height |
1.51 in
|
| Product Width |
1.51 in
|
| Product Weight |
0.1 lb
|
| Certifications |
UL Listed
CSA Certified |
PRODUCT SPECIFICATIONS
| Actuator function |
Unshielded
|
| Frequency rating |
Standard
|
| Enclosure material |
Plastic
|
| Series |
E51
|
| Environmental rating |
NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67
|
| Operating temperature - max |
158 °F
|
| Operating temperature - min |
-13 °F
|
