Description

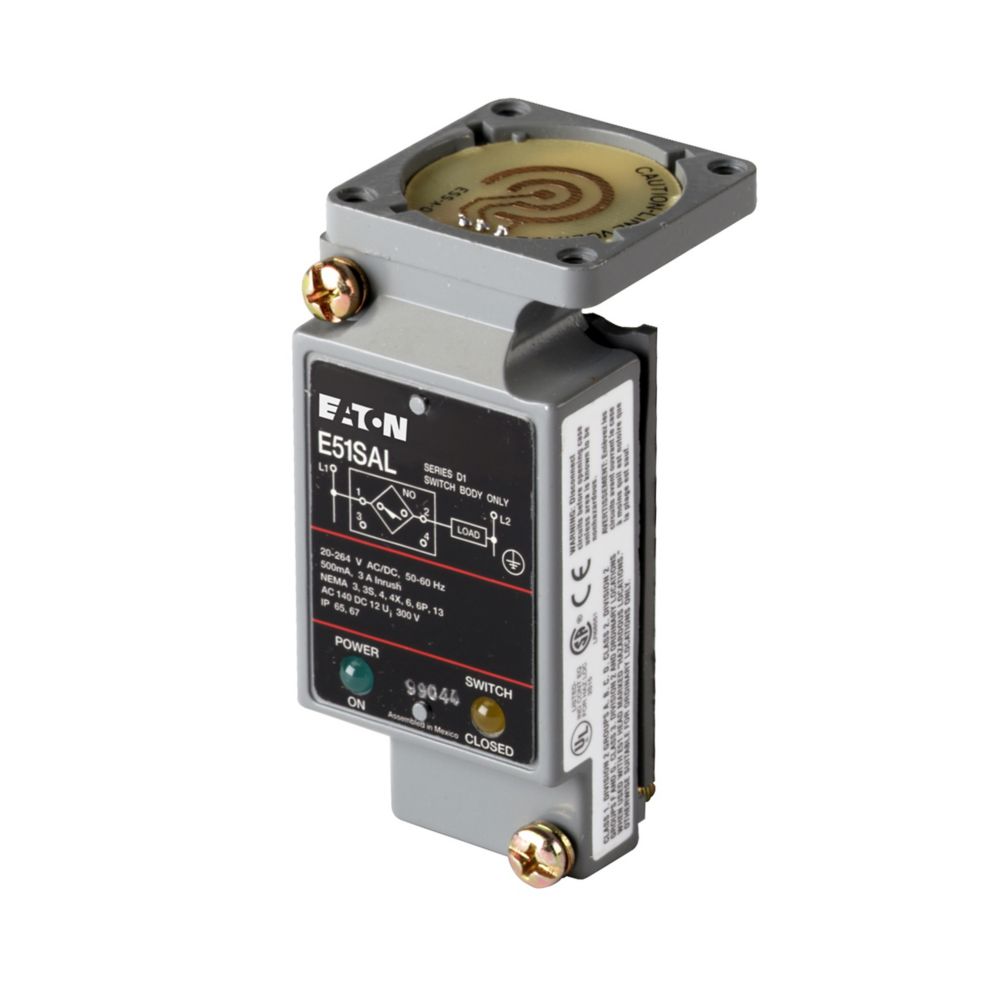

E51SAL - Eaton Cutler Hammer - 264 V E51 Nema Limit Switch Inductive Proximity Sensor
The E51SAL is a two-wire, AC/DC sensor body designed for E51 modular systems, offering programmable NO or NC output selectable at the sensor head. It accommodates a 20–264 VAC/DC operating voltage and includes latching short-circuit and overload protection, supporting up to 0.5 A of continuous output. Housed in durable die-cast zinc with Viton seals, it’s certified to NEMA 3 through 13 and IP67 standards.
GENERAL SPECIFICATIONS
| Product Name |
Eaton E51 NEMA limit switch inductive proximity sensor
|
| Catalog Number |
E51SAL
|
| UPC |
782113344935
|
| Product Length/Depth |
2 in
|
| Product Height |
5.25 in
|
| Product Width |
2 in
|
| Product Weight |
0.3 lb
|
| Certifications |
UL Listed
CSA Certified |
PRODUCT SPECIFICATIONS
| Contact Rating |
500 mA AC/DC solid state output
|
| Enclosure material |
Die cast zinc
|
| Contact configuration |
2-wire AC, NO
|
| Series |
E51
|
| Environmental rating |
NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67
|
| Operating temperature - max |
158 °F
|
| Operating temperature - min |
-13 °F
|
| Maximum AC current |
500 mA
|
| Maximum DC current |
500 mA
|
| Input voltage |
20-264 Vac/dc
|
| LED indicator |
Output ON (1 LED per output)
|
| Protection |
Latching short circuit
|
