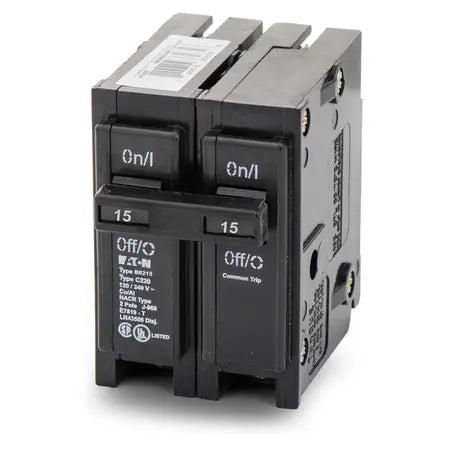

BR215 - Eaton Cutler-Hammer - Plug-In 15 Amp 2 Pole 240 Volt BR Thermal Magnetic Circuit Breaker
Eaton BR Thermal magnetic circuit breaker, Type BR 1-Inch plug-on circuit breaker, 15 A, 10 kAIC, Two-pole, 120/240V, BR, Common breaker trip, #14-4 AWG Cu/Al, Q28, BR, Type BR Loadcenters
GENERAL SPECIFICATIONS
| Product Name |
Eaton BR thermal magnetic circuit breaker |
| Catalog Number |
BR215 |
| UPC |
786676362801 |
| Product Length/Depth |
1.9 in |
| Product Height |
2.5 in |
| Product Width |
2.9 in |
| Product Weight |
0.5 lb |
| Compliances |
Federal Specifications Classification W-C375 |
| Certifications |
UL 489 |
PRODUCT SPECIFICATIONS
| Used with |
Type BR Loadcenters |
| Type |
Type BR 1-Inch plug-on circuit breaker |
| Amperage Rating |
15 A |
| Voltage rating |
120/240 V |
| Trip Type |
Common breaker trip |
| Circuit breaker type |
BR |
| Mounting Method |
Plug-on |
| Interrupt rating |
10 kAIC |
| Main circuit breaker |
BR |
| Wire size |
#14-4 AWG Cu/Al |
| Number of poles |
Two-pole |
| Quantity |
28 |
