Description

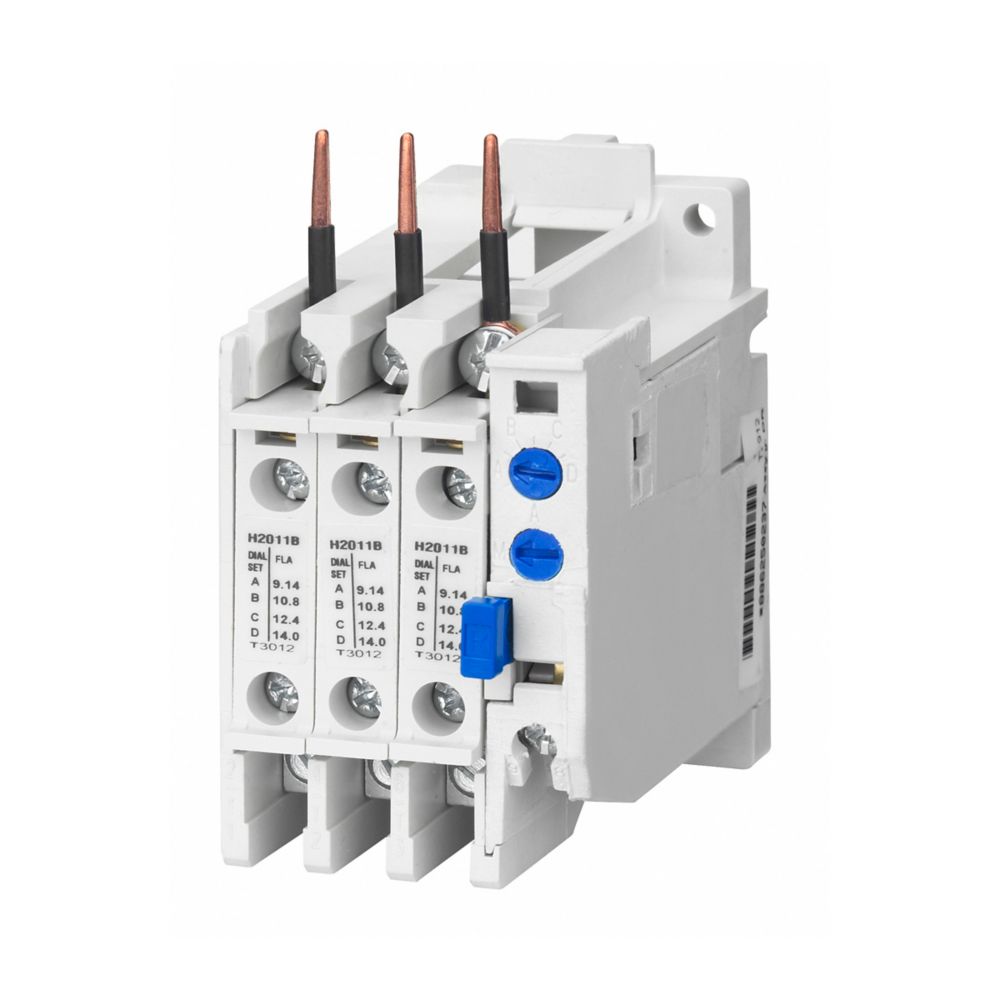

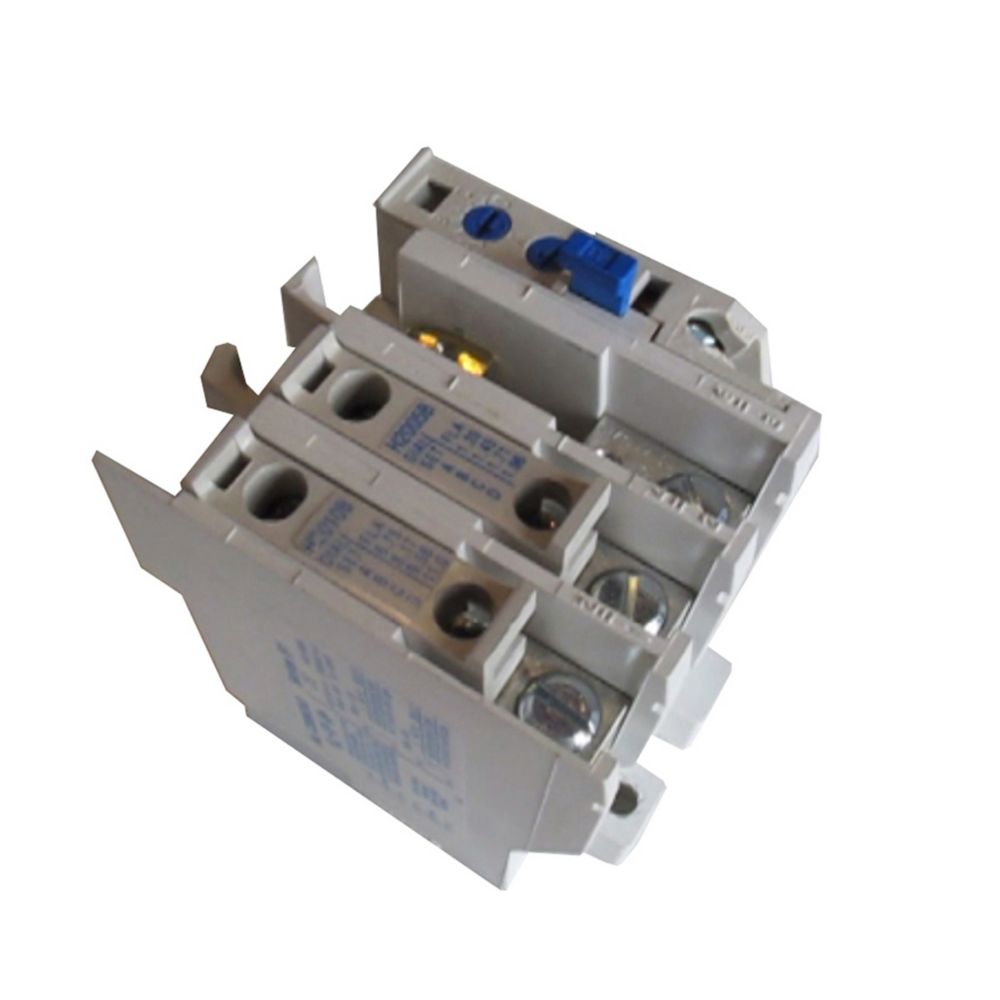

C306DN3B - Eaton Cutler-Hammer - 20-39A Control Product Overload Relay
NEMA Freedom Thermal Overload Relay, 20 - 39A, Three-pole, NEMA Size 00, 0, IEC Size A-F , Panel/DIN Rail Mounted or Starter Replacement mounting - C306DN3B
GENERAL SPECIFICATIONS
|
PRODUCT NAME |
Eater control product overload relay |
|
CATALOG NUMBER |
C306DN3B |
|
UPC |
782113973234 |
|
PRODUCT LENGTH/DEPTH |
4 in |
|
PRODUCT HEIGHT |
3.75 in |
|
PRODUCT WIDTH |
0.56 lb |
|
PRODUCT WEIGHT |
4 in |
|
CERTIFICATIONS |
UL Listed CSA Certfed |
|
CATALOG NOTES |
Seres d overload re 3ys h3ve dad lugs bu It into relay bsse and wll only accept Se-ies B heater pscks. These relays can be directly attached to 3 contactor cr they C3n be DIN rail o' panel mounted using an adspter. |
| Product Type |
Control product accessory
|
PRODUCT SPECIFICATIONS
| Amperage Rating |
20-39A
|
| Design |
NEMA, IEC
|
| Frame size |
NEMA Size 00, 0, IEC Size A-F
|
| Mounting |
DIN rail, panel
|
| Number of poles |
Three-pole
|
| Special features |
Heaters required
|
| Trip Type |
Thermal
|
| Type |
Control product accessory
|
| Used with |
GST00-160
|
PRODUCT DATASHEET
