Description

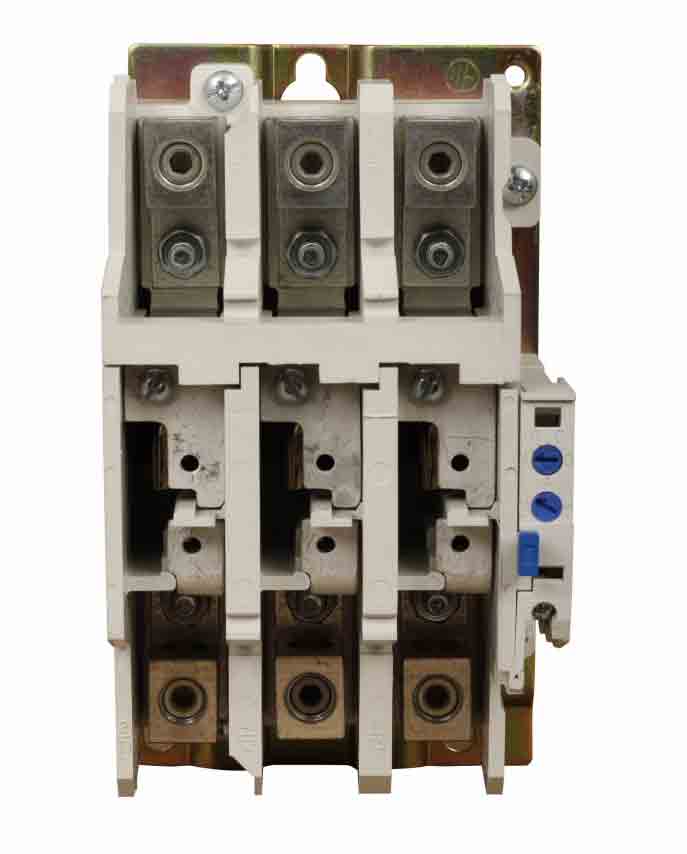

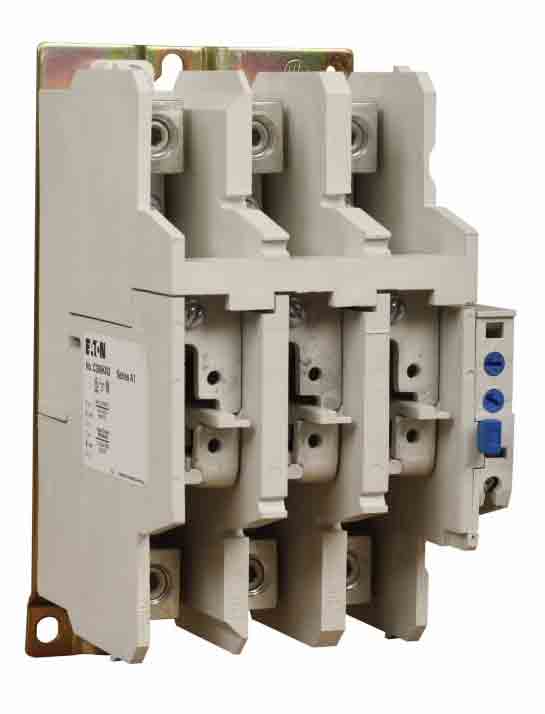

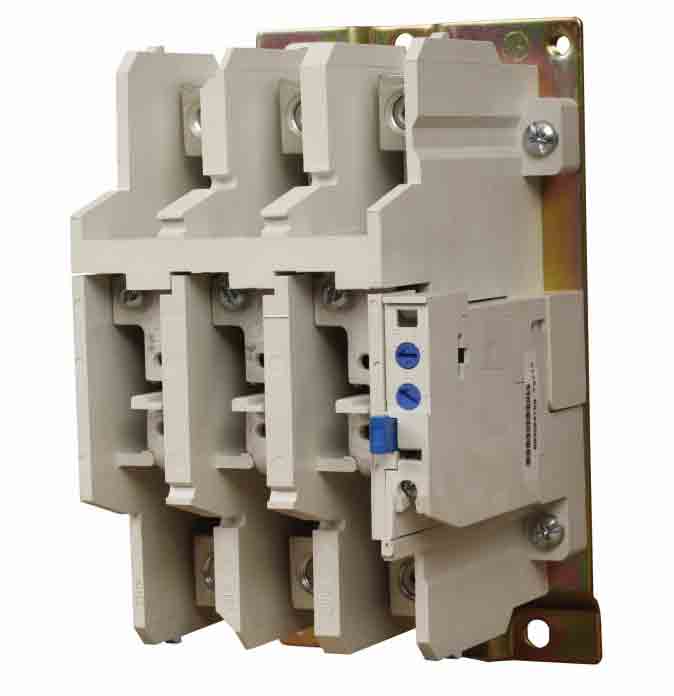

C306KN3 - Eaton Cutler-Hammer - Overload Relay
Eaton Freedom NEMA overload relay, 100 - 149A, Three-pole, NEMA Size 3, IEC Size L-M, Panel Mounted mounting
GENERAL SPECIFICATIONS
|
PRODUCT NAME |
Eaton Freedom NEMA overload relay |
|
CATALOG NUMBER |
C306KN3 |
|
UPC |
782113626550 |
|
PRODUCT LENGTH/DEPTH |
8.7 in |
|
PRODUCT HEIGHT |
5.2 in |
|
PRODUCT WIDTH |
5.8 in |
|
PRODUCT WEIGHT |
4.05 lb |
|
CERTIFICATIONS |
UL Listed CSA Certified |
|
CATALOG NOTES |
Torque 120 (3/16), 200 (1/4), 250 (5/16) |
| Product Type |
Overload relay
|
PRODUCT SPECIFICATIONS
|
DESIGN |
NEMA, IEC |
|
FRAME SIZE |
NEMA Size 3, IEC Size L-M |
|
MOUNTING |
Panel |
|
SPECIAL FEATURES |
Heaters required |
|
TYPE |
Freedom NEMA |
|
AMPERAGE RATING |
100-149A |
|
TRIP TYPE |
Thermal |
|
NUMBER OF POLES |
Three-pole |
PRODUCT DATASHEET
