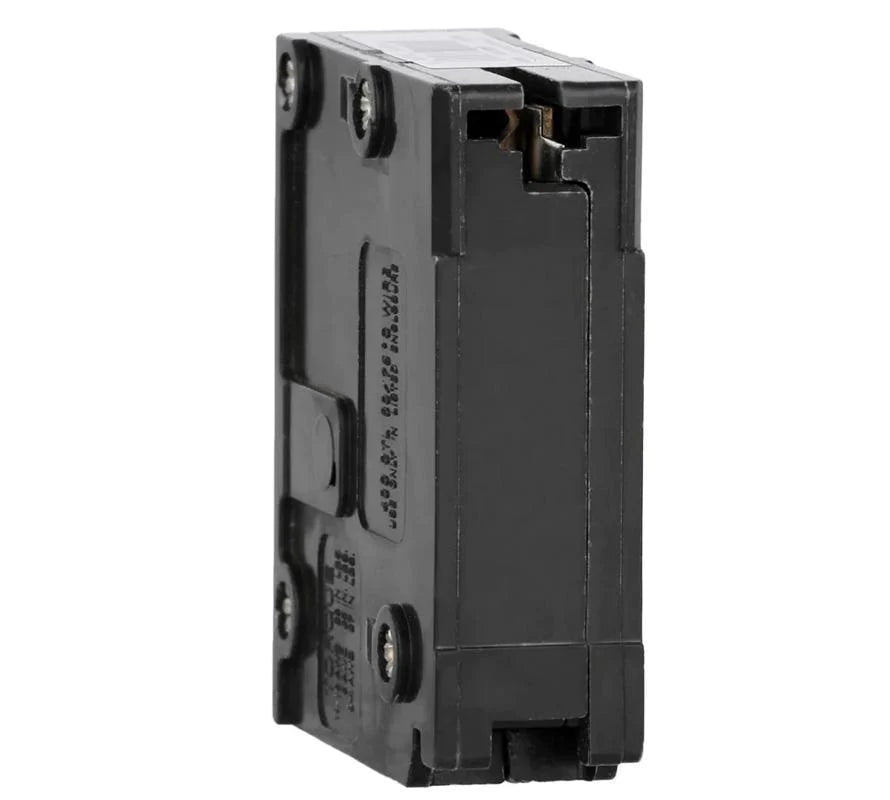

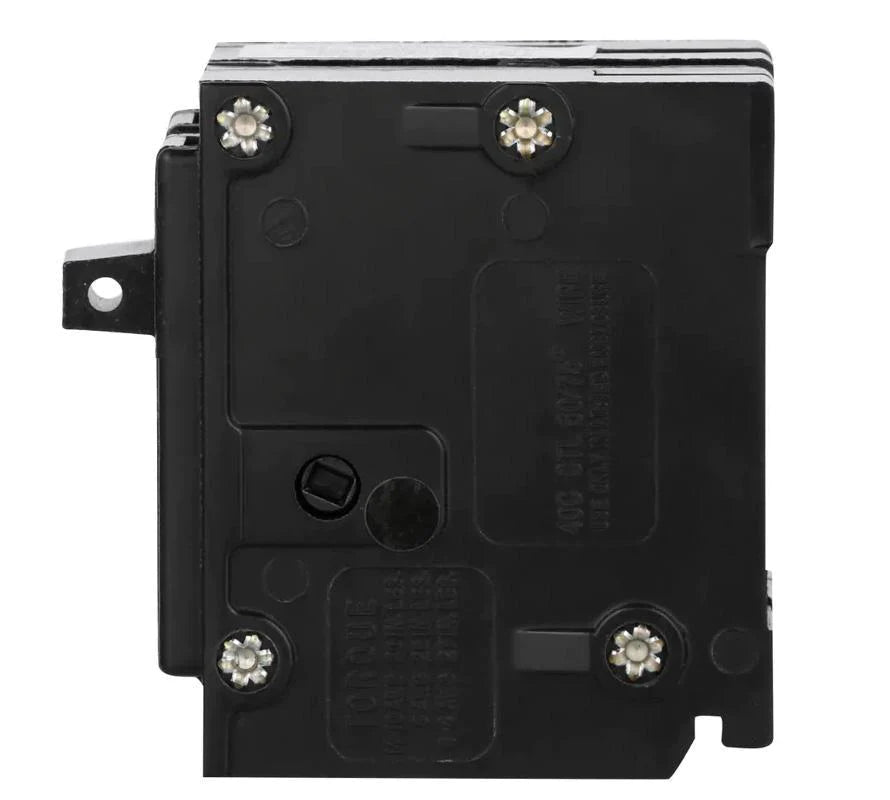

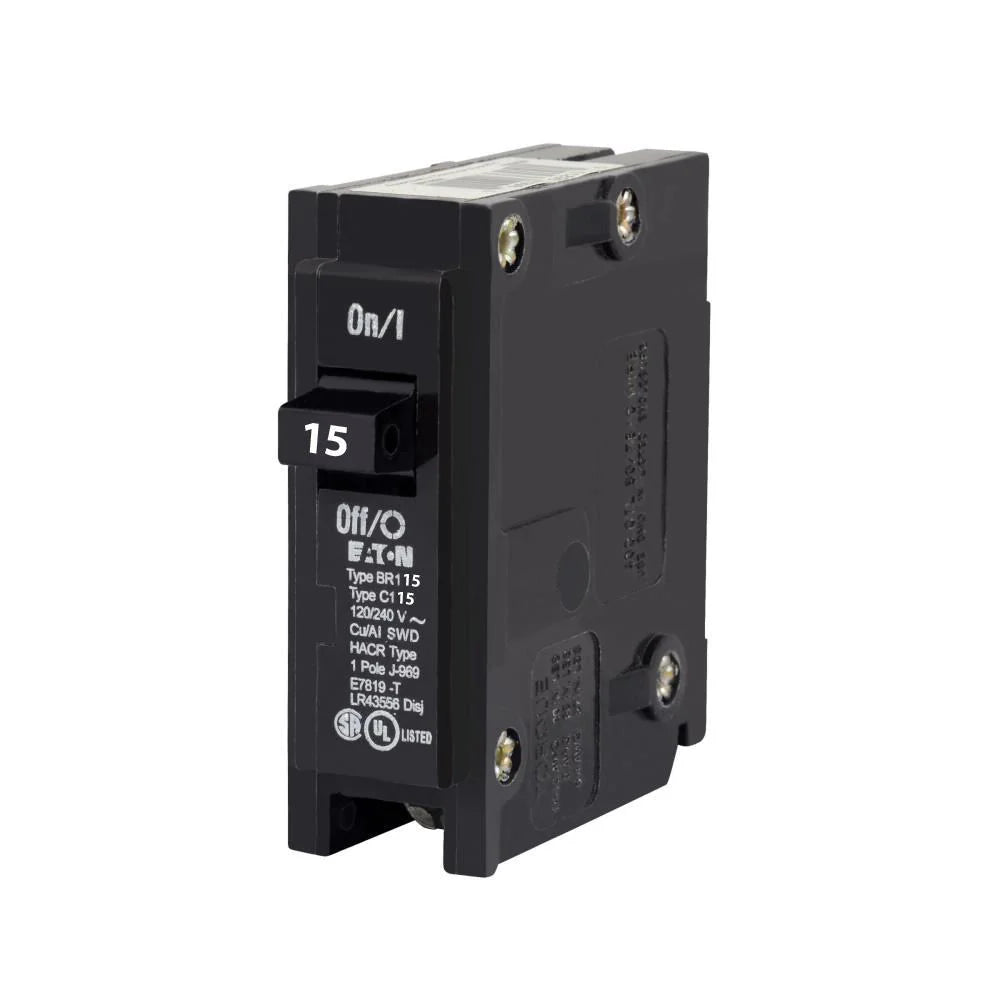

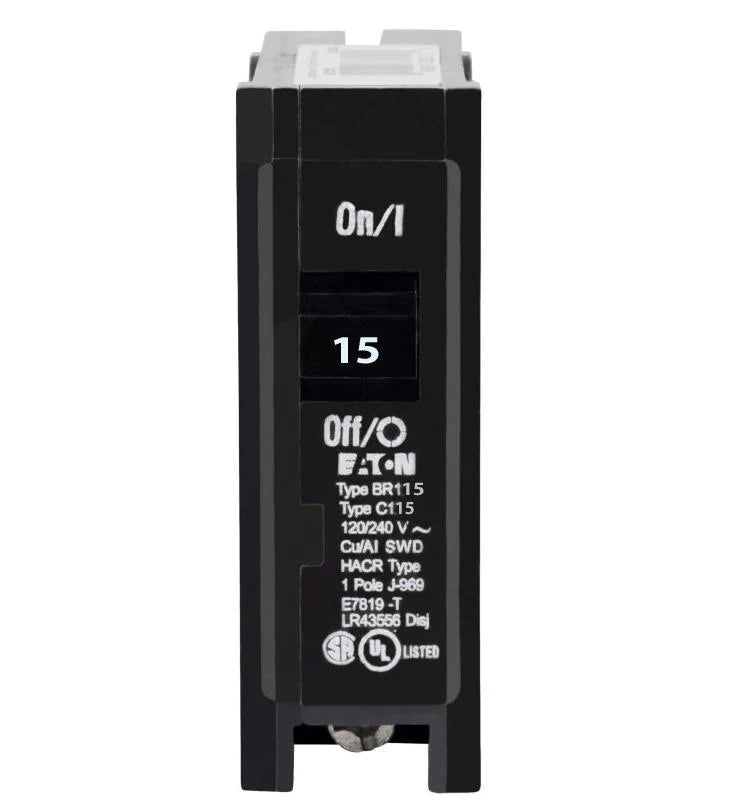

BR115 - Eaton Cutler-Hammer - Plug-In 15 Amp 1 Pole 120 Volt Thermal Magnetic Circuit Breaker
Eaton BR Thermal magnetic circuit breaker, Type BR 1-Inch plug-on circuit breaker, 15 A, 10 kAIC, Single-pole, 120/240V, BR, #14-4 AWG Cu/Al, BR, Type BR Loadcenter.
GENERAL SPECIFICATIONS
| Product Name |
Eaton BR thermal magnetic circuit breaker |
| Catalog Number |
BR115 |
| UPC |
786676362054 |
| Product Length/Depth |
3 in |
| Product Height |
3 in |
| Product Width |
1 in |
| Product Weight |
0.3 lb |
| Compliances |
Federal Specifications Classification W-C375 |
| Certifications |
UL 489 |
PRODUCT SPECIFICATIONS
| Used with |
Type BR Loadcenters |
| Type |
Type BR 1-Inch plug-on circuit breaker |
| Amperage Rating |
15 A |
| Voltage rating |
120/240 V |
| Circuit breaker type |
BR |
| Mounting Method |
Plug-on |
| Interrupt rating |
10 kAIC |
| Main circuit breaker |
BR |
| Wire size |
#14-4 AWG Cu/Al |
| Number of poles |
Single-pole |
PRODUCT DATASHEET
