Description

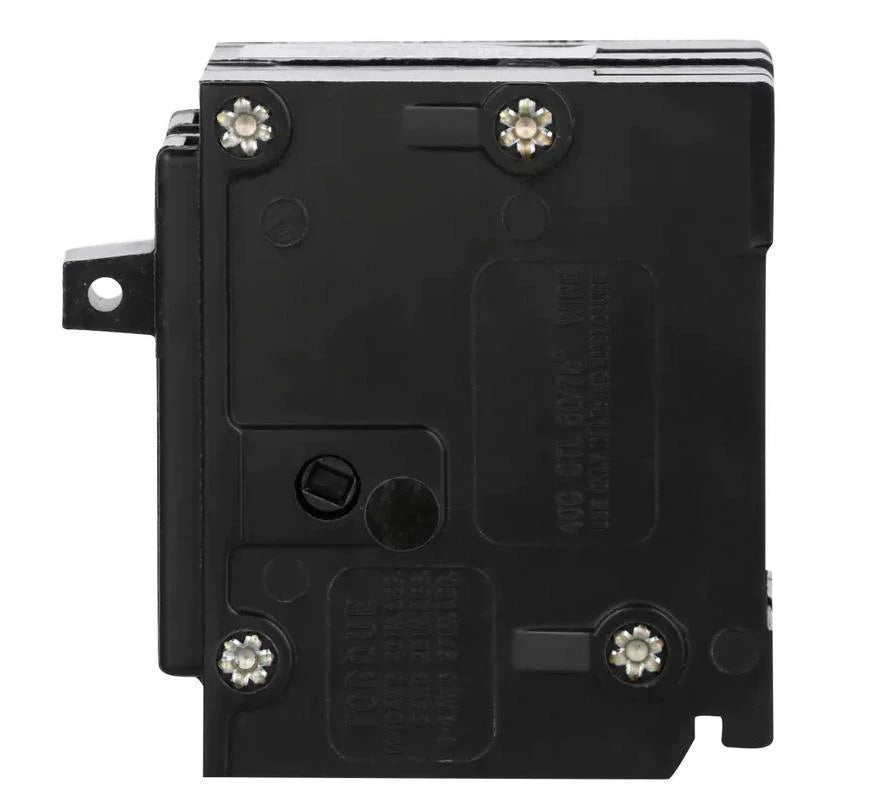

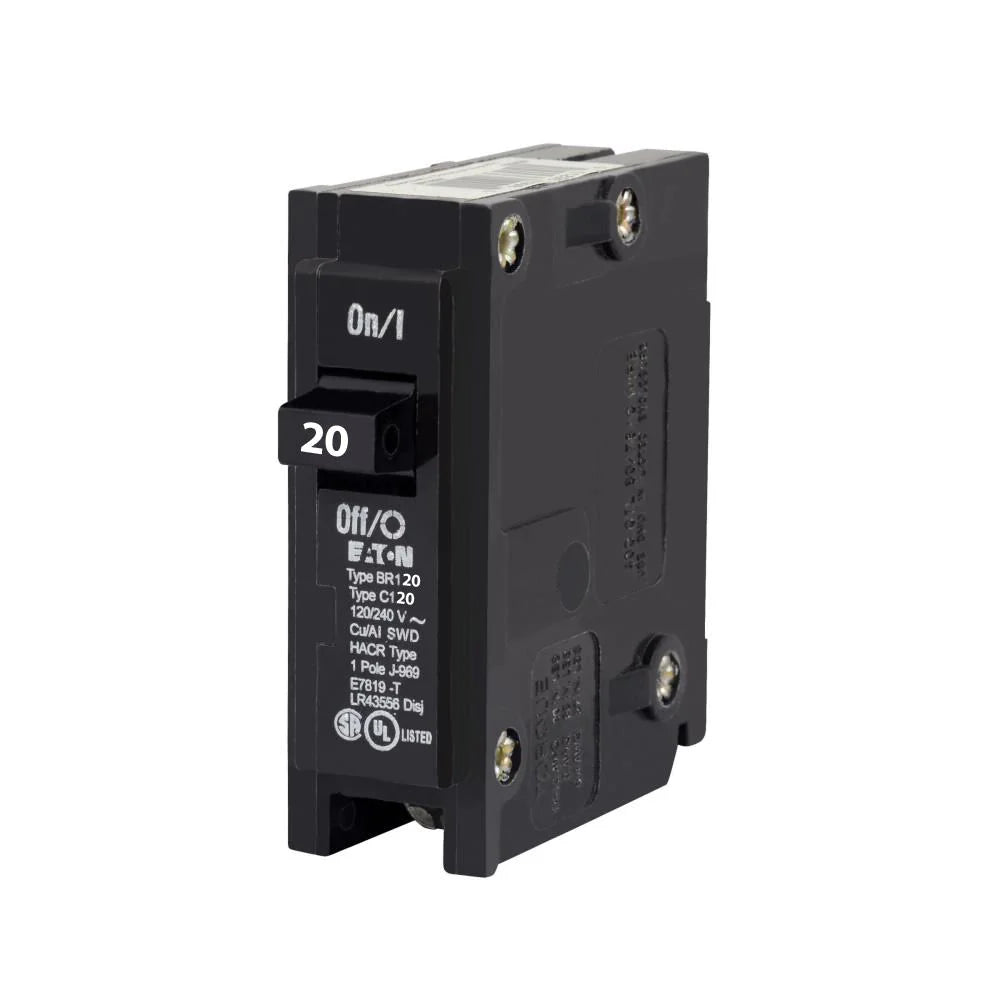

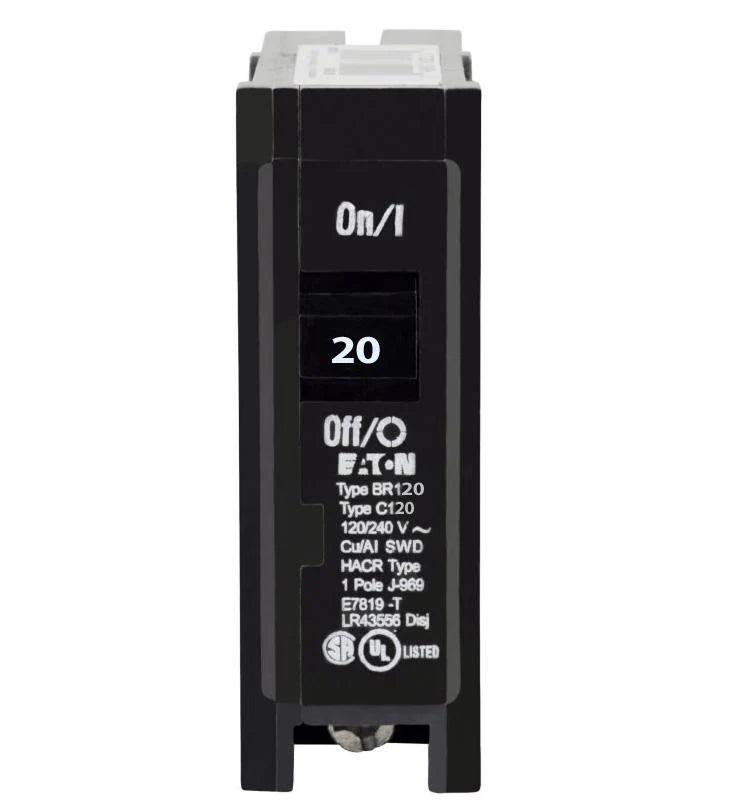

BR120 - Eaton Cutler-Hammer - Plug-In 20 Amp 1 Pole 120 Volt Thermal Magnetic Circuit Breaker
Eaton BR thermal magnetic circuit breaker, Type BR 1-Inch plug-on circuit breaker, 20 A, 10 kAIC, single-pole, 120/240V, BR, #14-4 AWG Cu/Al, Q1, Type BR loadcenters
GENERAL SPECIFICATIONS
| Product Name |
Eaton BR thermal magnetic circuit breaker
|
| Catalog Number |
BR120
|
| UPC |
786676362108
|
| Product Length/Depth |
2.5 in
|
| Product Height |
3 in
|
| Product Width |
1 in
|
| Product Weight |
0.3 lb
|
| Compliances |
Federal Specifications Classification W-C375
|
| Certifications |
UL 489
|
PRODUCT SPECIFICATIONS
| Used with |
Type BR Loadcenters
|
| Type |
Type BR 1-Inch plug-on circuit breaker
|
| Amperage Rating |
20 A
|
| Voltage rating |
120/240 V
|
| Circuit breaker type |
BR
|
| Mounting Method |
Plug-on
|
| Interrupt rating |
10 kAIC
|
| Main circuit breaker |
BR
|
| Wire size |
#14-4 AWG Cu/Al
|
| Number of poles |
Single-pole
|
| Quantity |
1
|
PRODUCT DATASHEET
