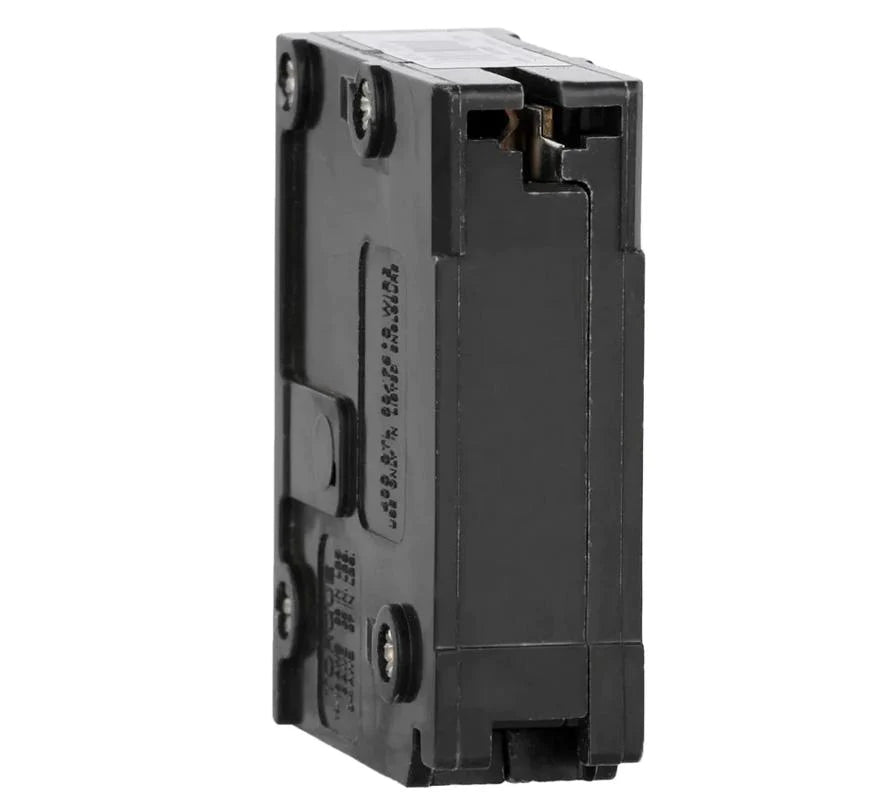

BR150 - Eaton Cutler-Hammer - Plug-In 50 Amp 1 Pole 120 Volt Thermal Magnetic Circuit Breaker
Eaton BR thermal magnetic circuit breaker,Type BR 1-Inch plug-on circuit breaker,50 A,10 kAIC,Single-pole,120/240V,BR,#14-4 AWG Cu/Al,BR,Type BR Loadcenters
GENERAL SPECIFICATIONS
| Product Name |
Eaton BR thermal magnetic circuit breaker |
| Catalog Number |
BR150 |
| UPC |
786676362306 |
| Product Length/Depth |
3 in |
| Product Height |
3 in |
| Product Width |
1 in |
| Product Weight |
0.3 lb |
| Compliances |
Federal Specifications Classification W-C375 |
| Certifications |
UL 489 |
PRODUCT SPECIFICATIONS
| Used with |
Type BR Loadcenters |
| Type |
Type BR 1-Inch plug-on circuit breaker |
| Special features |
Used with Type BR Loadcenters |
| Amperage Rating |
50 A |
| Voltage rating |
120/240 V |
| Circuit breaker type |
BR |
| Mounting Method |
Plug-on |
| Interrupt rating |
10 kAIC |
| Main circuit breaker |
BR |
| Wire size |
#14-4 AWG Cu/Al |
| Number of poles |
Single-pole |
