Description

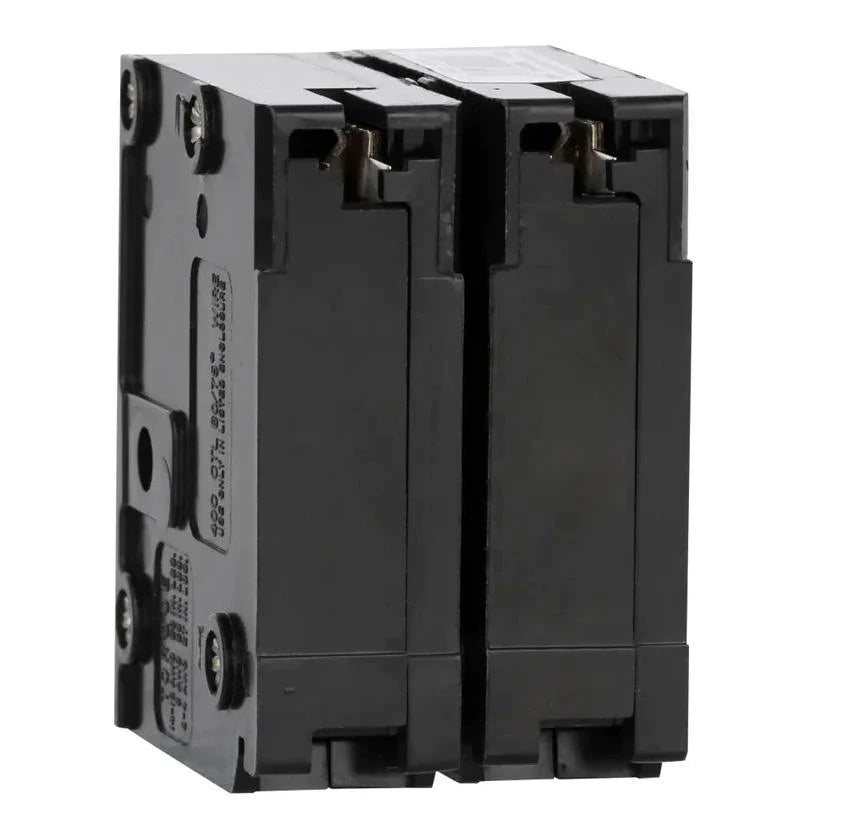

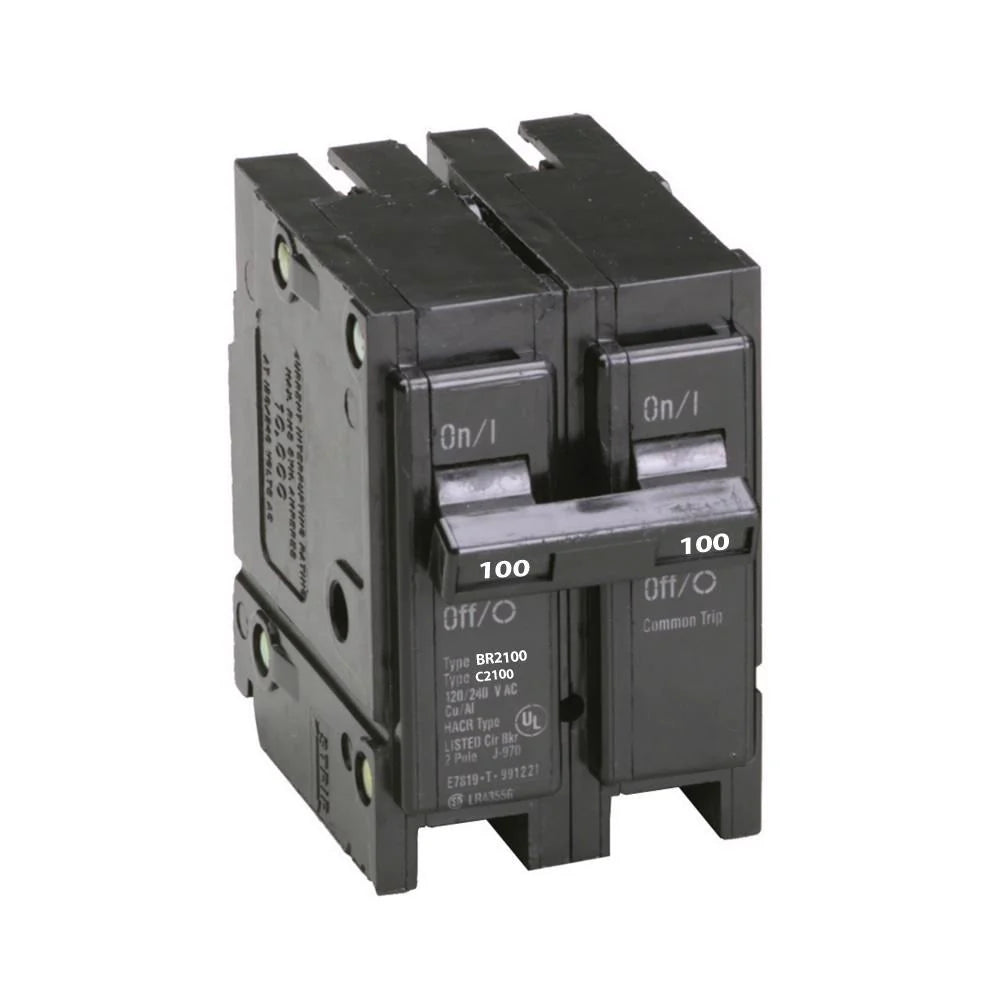

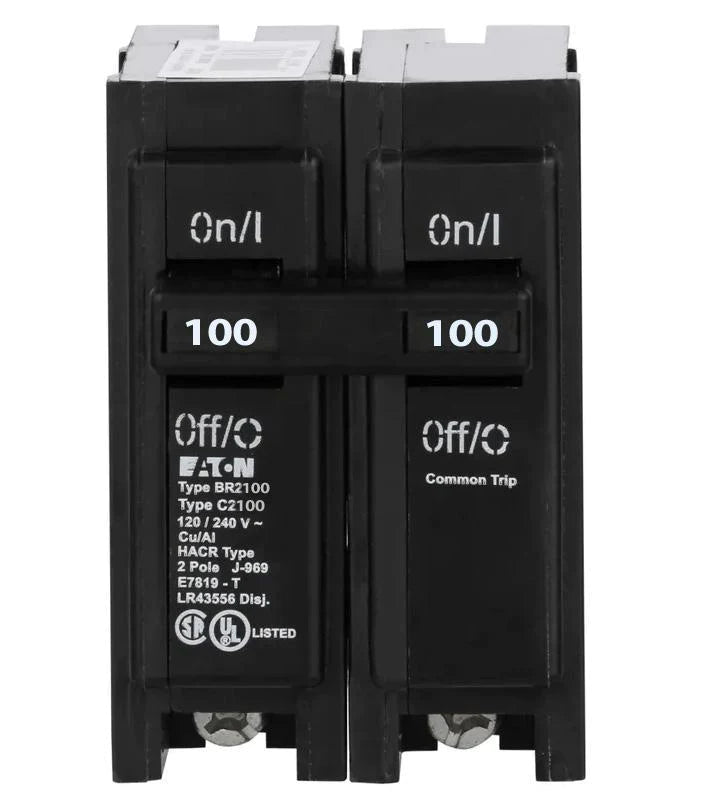

BR2100 - Eaton Cutler-Hammer - Plug-In 100 Amp 2 Pole 240 Volt Thermal Magnetic Circuit Breaker
Eaton BR Thermal magnetic circuit breaker, Type BR 1-Inch plug-on circuit breaker, 100 A, 10 kAIC, Two-pole, 120/240V, BR, Common breaker trip, #4-1/0 AWG Cu/Al, Q28, BR, Type BR Loadcenters
GENERAL SPECIFICATIONS
| Product Name | Eaton BR thermal magnetic circuit breaker |
| Catalog Number | BR2100 |
| UPC | 786676363259 |
| Product Length/Depth | 1.9 in |
| Product Height | 2.4 in |
| Product Width | 2 in |
| Product Weight | 0.6 lb |
| Compliances | Federal Specifications Classification W-C375 |
| Certifications | UL 489 |
PRODUCT SPECIFICATIONS
| Used with | Type BR Loadcenters |
| Type | Type BR 1-Inch plug-on circuit breaker |
| Special features | Used with Type BR Loadcenters |
| Amperage Rating | 100 A |
| Voltage rating | 120/240 V |
| Trip Type | Common breaker trip |
| Circuit breaker type | BR |
| Mounting Method | Plug-on |
| Interrupt rating | 10 kAIC |
| Main circuit breaker | BR |
| Wire size | #4-1/0 AWG Cu/Al |
| Number of poles | Two-pole |
| Quantity | 28 |
