Description

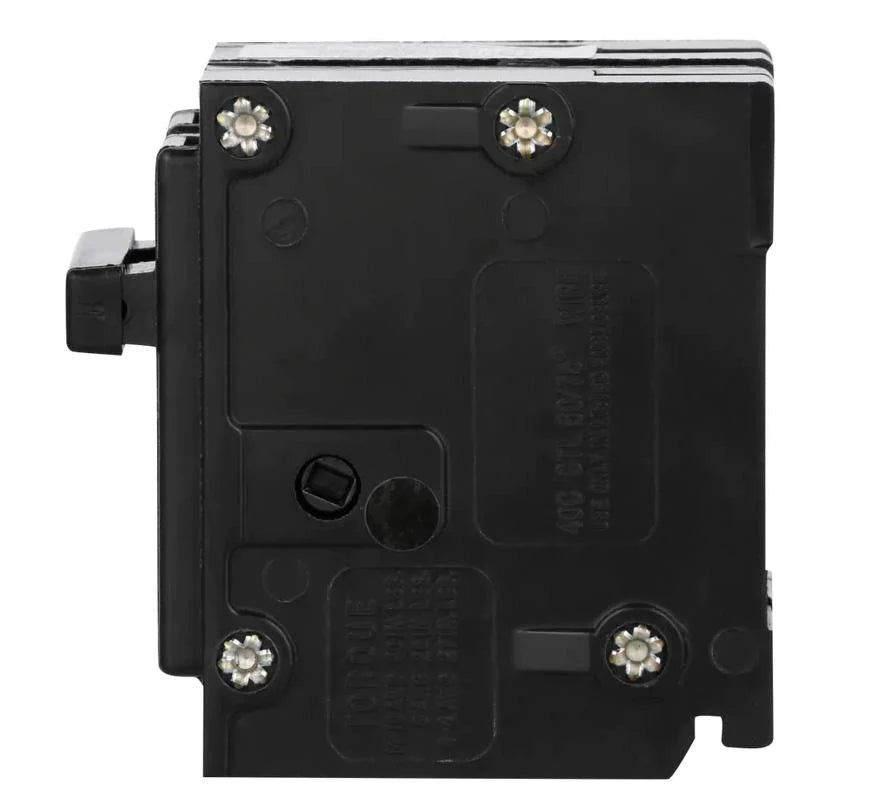

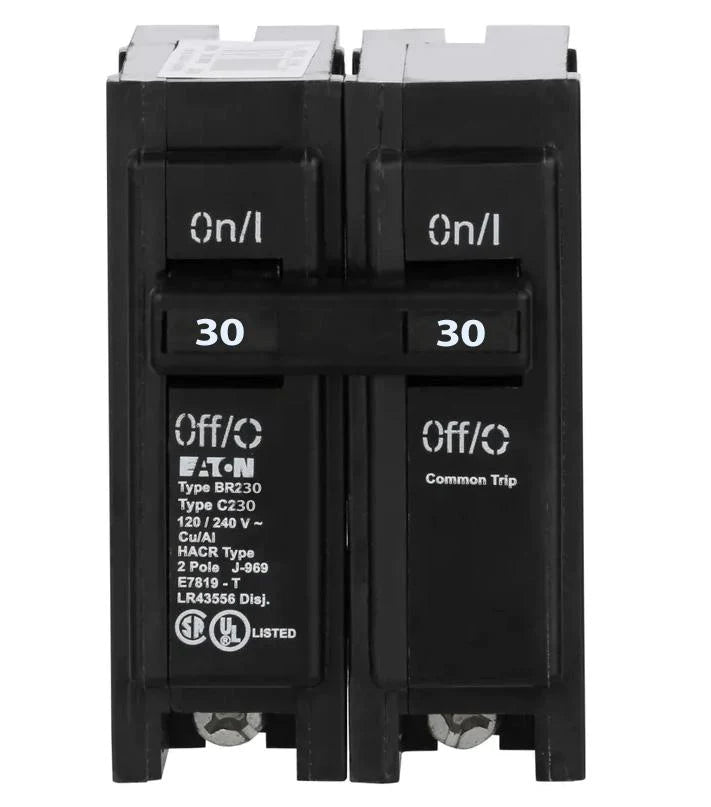

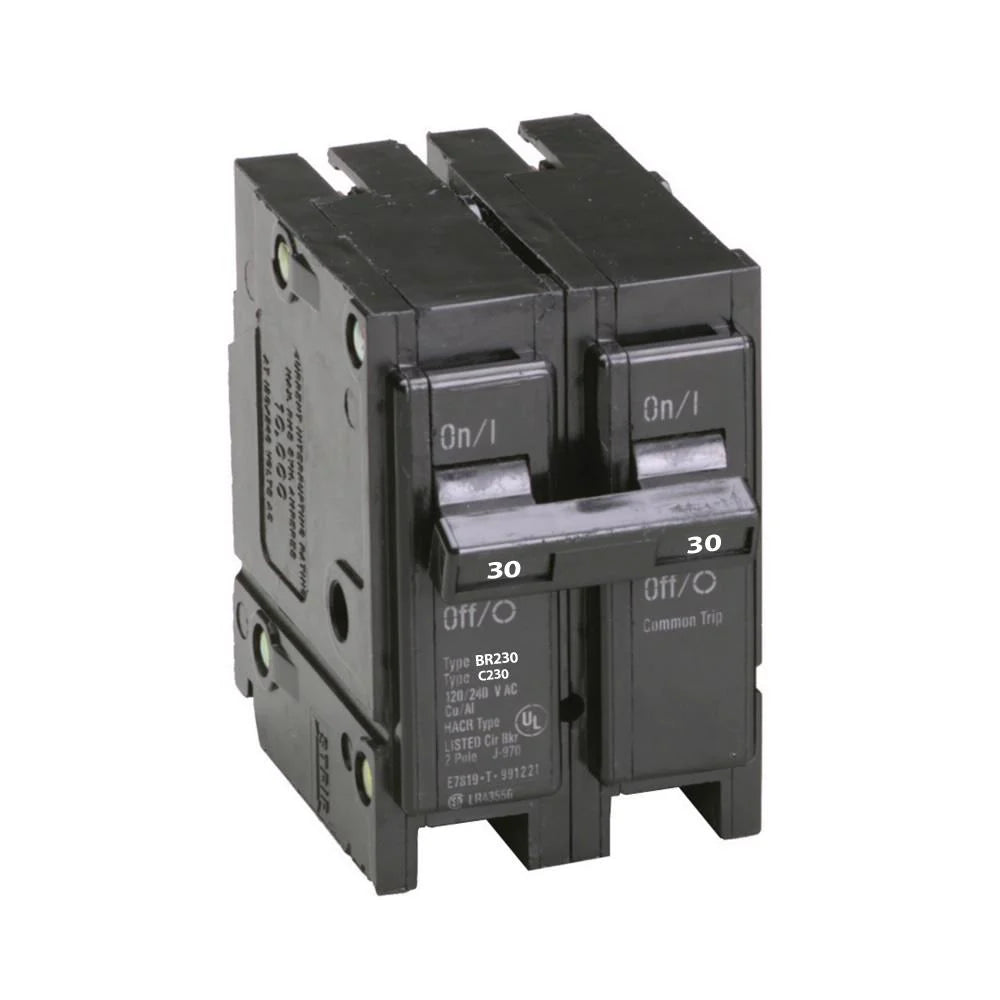

BR230 - Eaton Cutler-Hammer - Plug-In 30 Amp 240 Volt 2 Pole Circuit Breaker
Eaton BR Thermal magnetic circuit breaker, Type BR 1-Inch plug-on circuit breaker, 30 A, 10 kAIC, Two-pole, 120/240V, BR, Common breaker trip, #14-4 AWG Cu/Al, Q28, BR, Type BR Loadcenters
GENERAL SPECIFICATIONS
|
PRODUCT NAME |
Eaton BR thermal magnetic circuit breaker |
|
CATALOG NUMBER |
BR230
|
|
UPC |
786676362955
|
|
PRODUCT LENGTH/DEPTH |
1.9 in |
|
PRODUCT HEIGHT |
2.5 in |
|
PRODUCTWIDTH |
2.9 in |
|
PRODUCT WEIGHT |
.65 lb |
|
COMPLIANCES |
Federal Specifications Classification W-C375
|
|
CERTIFICATIONS |
UL 489
|
PRODUCT SPECIFICATIONS
|
INTERRUPT RATING |
10 kAIC |
|
TYPE |
Type BR 1-Inch plug-on circuit breaker |
|
WIRE SIZE |
#14-4 AWG Cu/Al |
|
CIRCUIT BREAKER TYPE |
BR
|
|
USED WITH |
Type BR Loadcenters
|
|
MAIN CIRCUIT BREAKER |
BR
|
|
QUANTITY |
28 |
|
MOUNTING METHOD |
Plug-on |
|
VOLTAGE RATING |
120/240 V |
|
TRIP TYPE |
Common breaker trip |
|
NUMBER OF POLES |
Two-pole |
