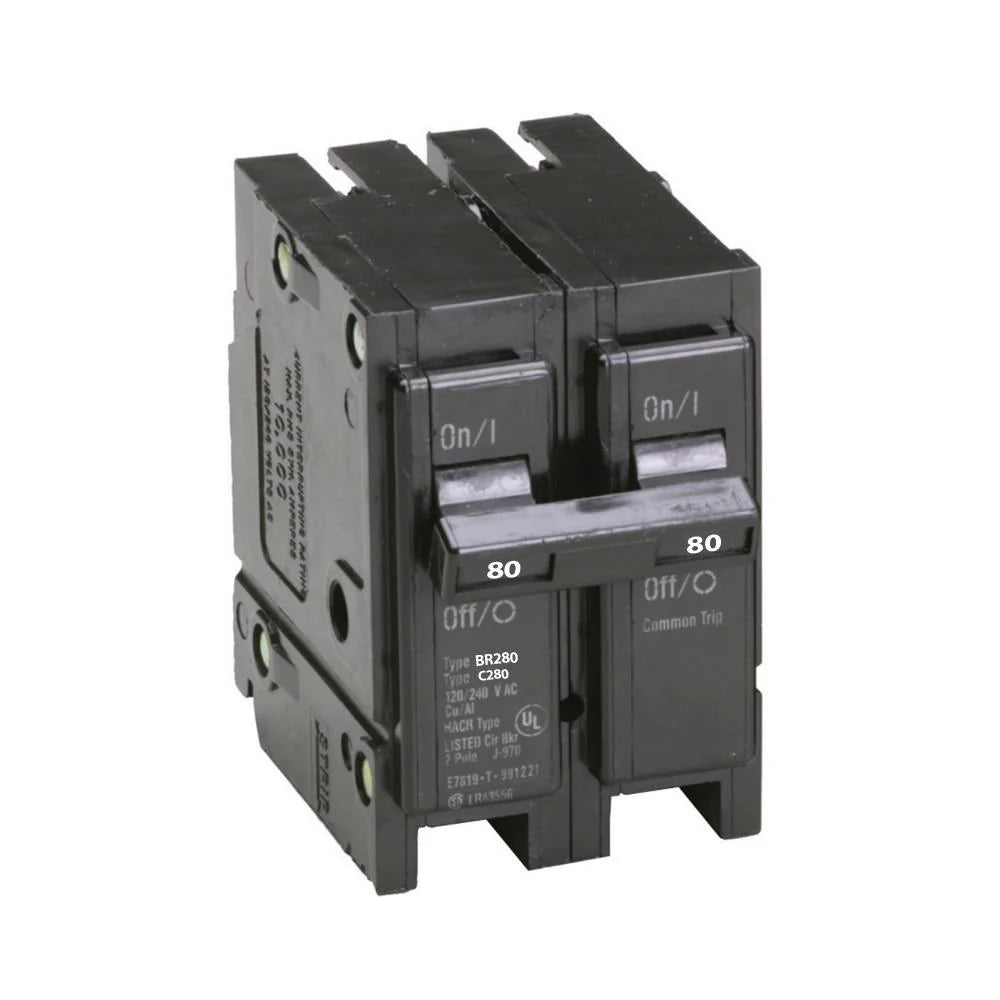

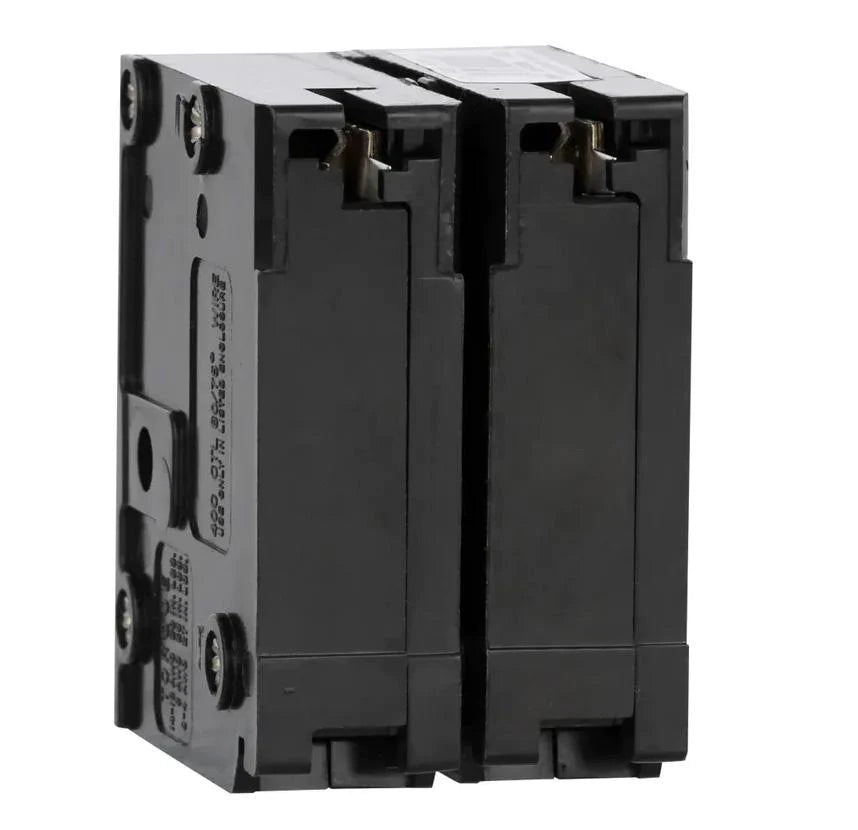

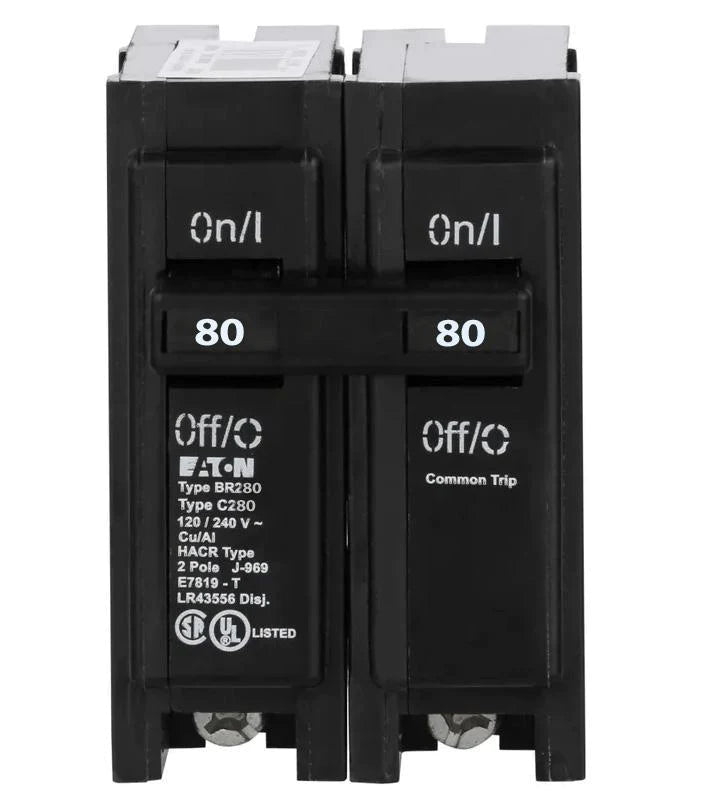

BR280 - Eaton Cutler-Hammer - Plug-In 80 Amp 240 Volt 2 Pole Circuit Breaker
Eaton BR thermal magnetic circuit breaker,Type BR 1-Inch plug-on circuit breaker,80 A,10 kAIC,Two-pole,120/240V,BR,Common breaker trip,#8-1/0 AWG Cu/Al,Q28,BR,Type BR Loadcenters
GENERAL SPECIFICATIONS
| Product Name |
Eaton BR thermal magnetic circuit breaker |
| Catalog Number |
BR280 |
| UPC |
786676363174 |
| Product Length/Depth |
1.9 in |
| Product Height |
2.5 in |
| Product Width |
2.9 in |
| Product Weight |
0.6 lb |
| Compliances |
Federal Specifications Classification W-C375 |
| Certifications |
UL 489 |
PRODUCT SPECIFICATIONS
| Used with |
Type BR Loadcenters |
| Type |
Type BR 1-Inch plug-on circuit breaker |
| Amperage Rating |
80 A |
| Voltage rating |
120/240 V |
| Trip Type |
Common breaker trip |
| Circuit breaker type |
BR |
| Mounting Method |
Plug-on |
| Interrupt rating |
10 kAIC |
| Main circuit breaker |
BR |
| Wire size |
#8-1/0 AWG Cu/Al |
| Number of poles |
Two-pole |
| Quantity |
28 |
