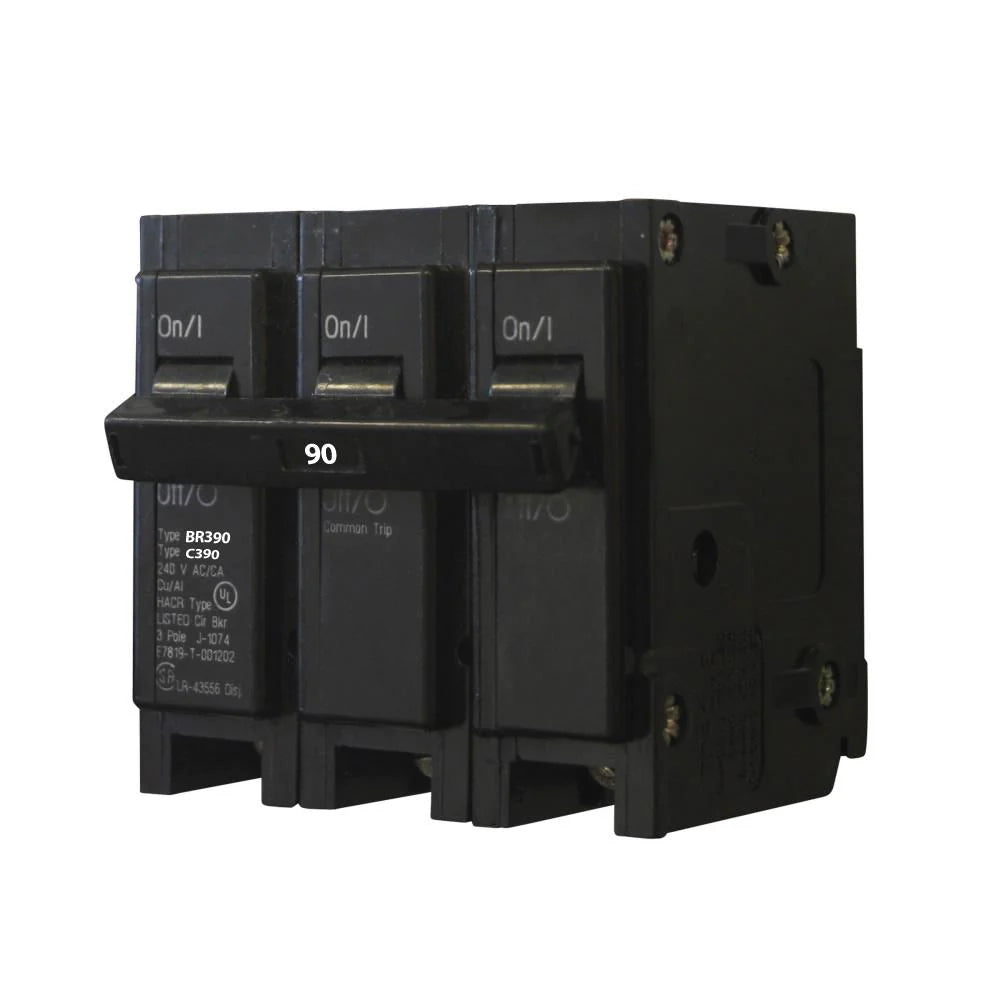

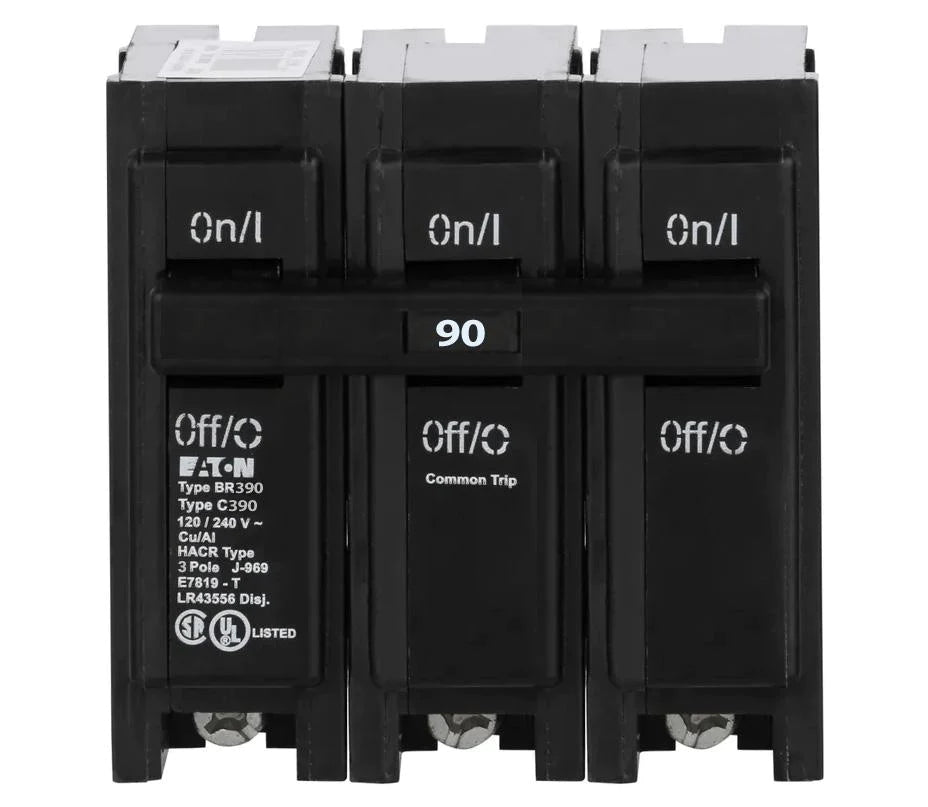

BR390 - Eaton Cutler-Hammer - Plug-In 90 Amp 240 Volt 3 Pole Circuit Breaker
Eaton BR thermal magnetic circuit breaker,Type BR 1-Inch plug-on circuit breaker,90 A,10 kAIC,Three-pole,240V,BR,Common breaker trip,#4-1/0 AWG Cu/Al,Q28,BR,Type BR Loadcenters
GENERAL SPECIFICATIONS
| Product Name |
Eaton BR thermal magnetic circuit breaker |
| Catalog Number |
BR390 |
| UPC |
786676368056 |
| Product Length/Depth |
3 in |
| Product Height |
3 in |
| Product Width |
3 in |
| Product Weight |
0.99 lb |
| Compliances |
Federal Specifications Classification W-C375 |
| Certifications |
UL 489 |
PRODUCT SPECIFICATIONS
| Used with |
Type BR Loadcenters |
| Type |
Type BR 1-Inch plug-on circuit breaker |
| Amperage Rating |
90 A |
| Voltage rating |
240 V - 240 V |
| Trip Type |
Common breaker trip |
| Circuit breaker type |
BR |
| Mounting Method |
Plug-on |
| Interrupt rating |
10 kAIC |
| Main circuit breaker |
BR |
| Wire size |
#4-1/0 AWG Cu/Al |
| Number of poles |
Three-pole |
| Quantity |
28 |
