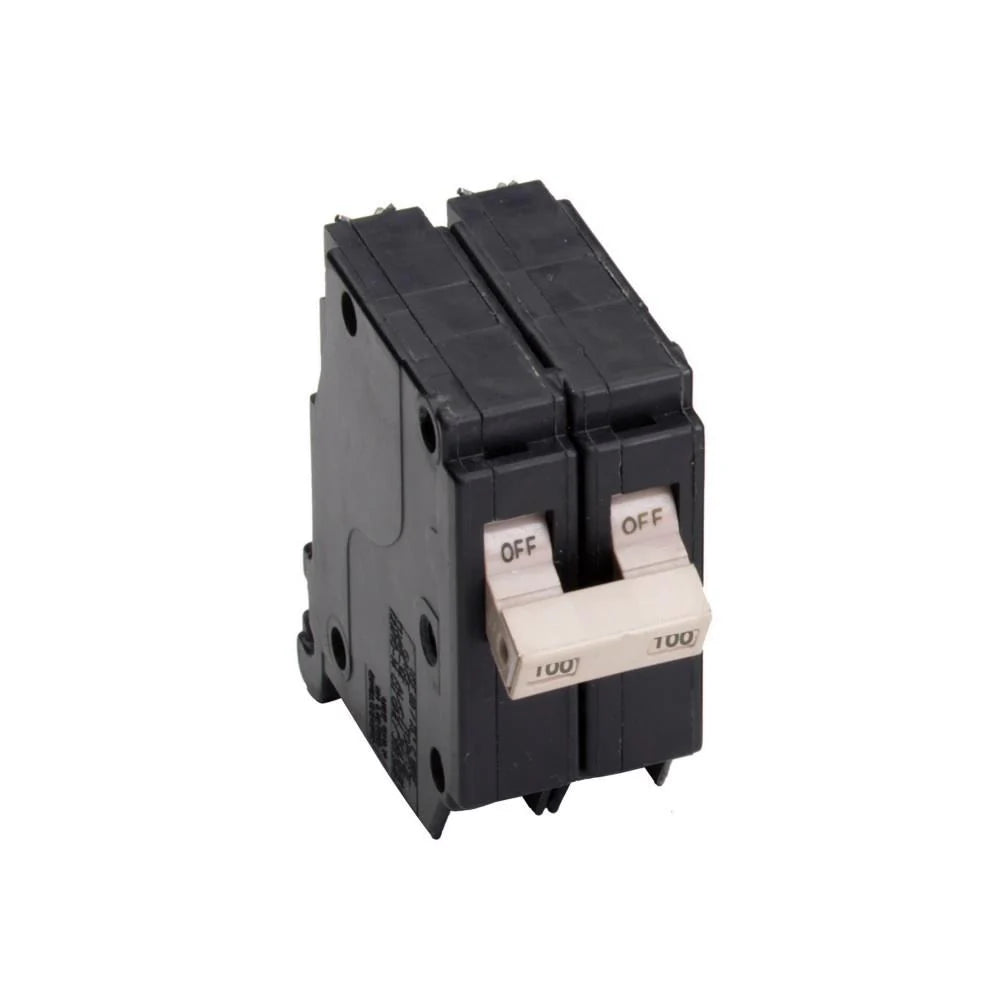

CH2100 - Eaton Cutler-Hammer - Plug-In 100 Amp 240 Volt 2 Pole Circuit Breaker
Eaton CH Thermal magnetic circuit breaker, Type CH 3/4-Inch standard circuit breaker, 100 A, 10 kAIC, Two-pole, 120/240V, CH, Common breaker trip, 14AWG – 1/0AWG, u/Al, CH, Type CH Loadcenters
GENERAL SPECIFICATIONS
| Product Name |
Eaton CH thermal magnetic circuit breaker
|
| Catalog Number |
CH2100
|
| UPC |
782113102375
|
| Product Length/Depth |
3.5 in
|
| Product Height |
3.25 in
|
| Product Width |
1.5 in
|
| Product Weight |
0.65 lb
|
| Certifications |
UL 489
|
| Catalog Notes |
Two-Pole 120/240VCommon Trip Requires Two3/4-Inch Spaces
|
PRODUCT SPECIFICATIONS
| Used with |
Type CH Loadcenters
|
| Type |
Type CH 3/4-Inch standard circuit breaker
|
| Amperage Rating |
100 A
|
| Voltage rating |
120/240 V
|
| Trip Type |
Common breaker trip
|
| Circuit breaker type |
CH
|
| Interrupt rating |
10 kAIC
|
| Main circuit breaker |
CH
|
| Wire size |
#10-1/0 AWG Cu/Al
|
| Number of poles |
Two-pole
|
PRODUCT DATASHEET
