Description

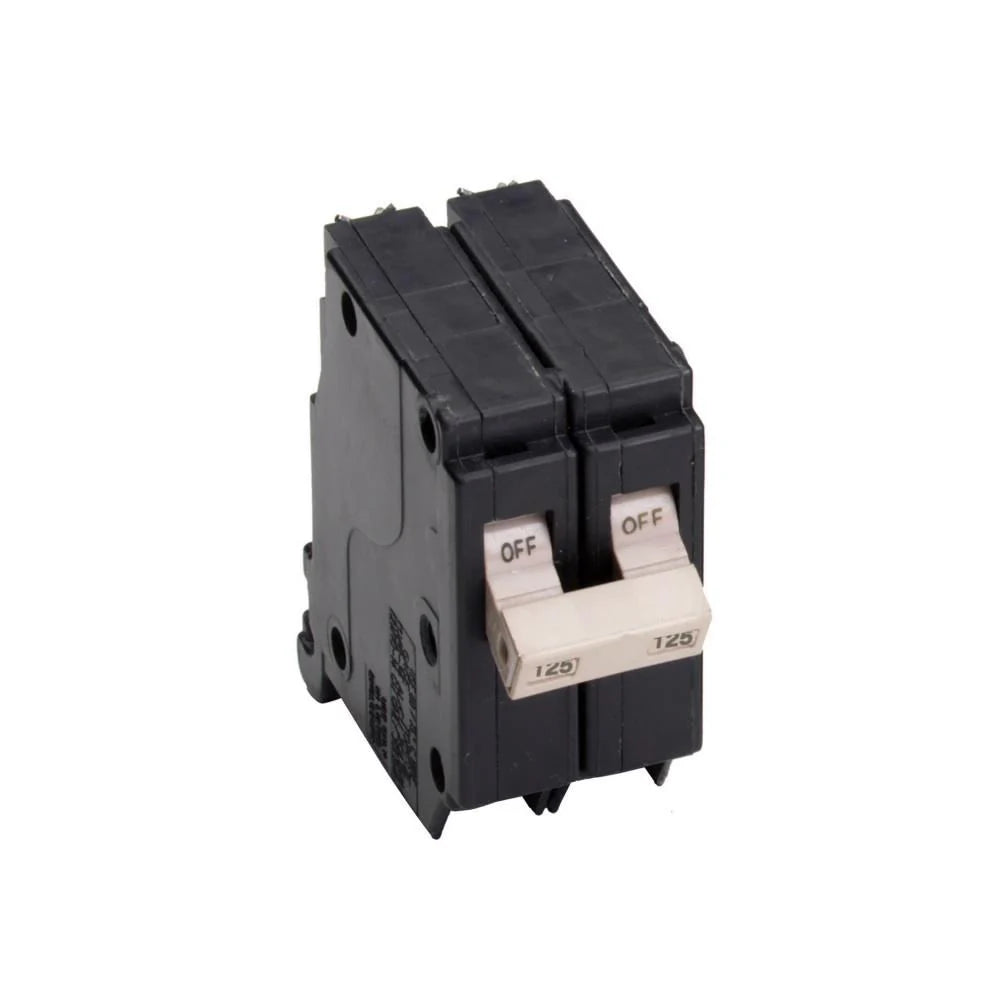

CH2125 - Eaton Cutler-Hammer - Plug-In 125 Amp 240 Volt 3 Pole Circuit Breaker
Eaton CH Thermal magnetic circuit breaker, Type CH 3/4-Inch standard circuit breaker, 125 A, 10 kAIC, Two-pole, 120/240V, CH, Common breaker trip, #10-1/0 AWG Cu/Al, CH, Type CH Loadcenters.
GENERAL SPECIFICATIONS
| Product Name | Eaton CH thermal magnetic circuit breaker |
| Catalog Number | CH2125 |
| UPC | 782113298788 |
| Product Length/Depth | 3.75 in |
| Product Height | 2.75 in |
| Product Width | 2.5 in |
| Product Weight | 0.58 lb |
| Certifications | UL 489 |
| Catalog Notes | Two-Pole 120/240V Common Trip Requires Two 3/4-Inch Spaces |
PRODUCT SPECIFICATIONS
| Used with | Type CH Loadcenters |
| Type | Type CH 3/4-Inch standard circuit breaker |
| Amperage Rating | 125 A |
| Voltage rating | 120/240 V |
| Trip Type | Common breaker trip |
| Circuit breaker type | CH |
| Interrupt rating | 10 kAIC |
| Main circuit breaker | CH |
| Wire size | #10-1/0 AWG Cu/Al |
| Number of poles | Two-pole |
PRODUCT DATASHEET
