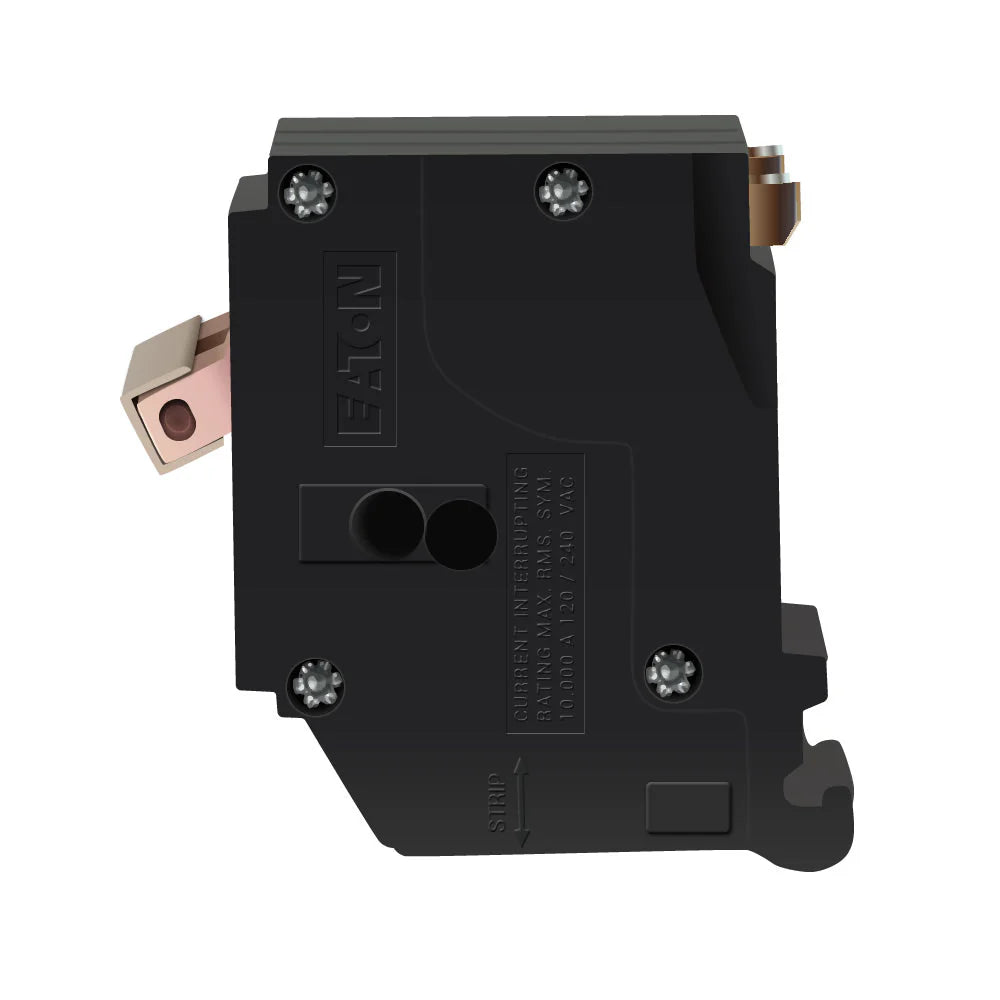

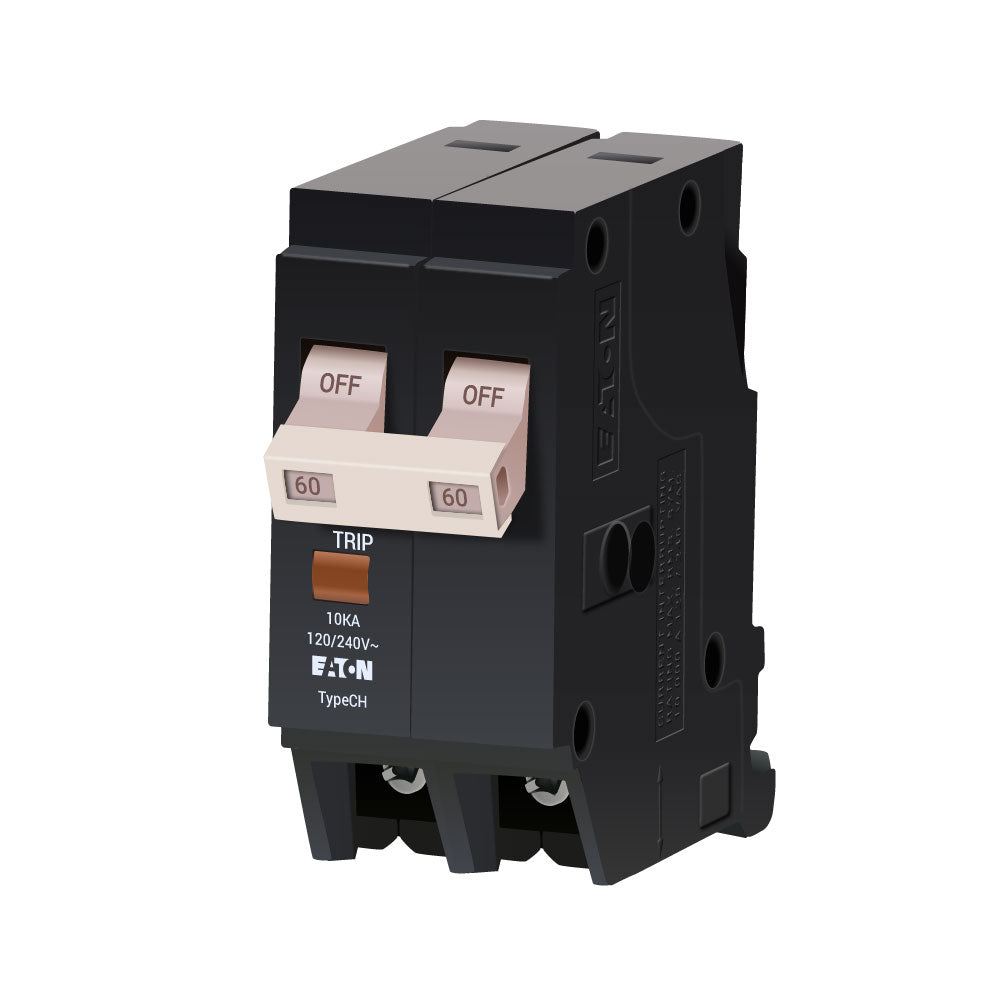

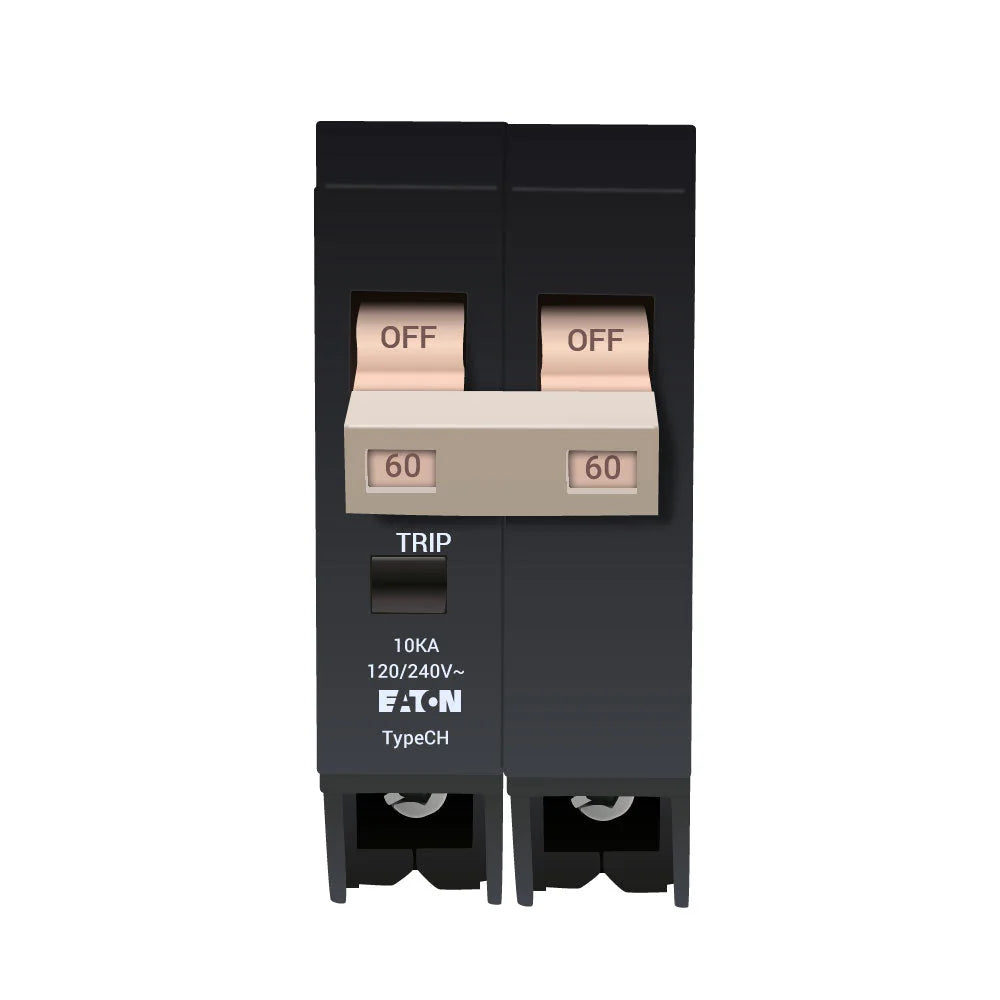

CH260 - Eaton Cutler-Hammer - Plug-In 60 Amp 240 Volt 2 Pole Circuit Breaker
The Cutler Hammer CH260 is a molded case circuit breaker from the CH Series. It features two poles, operates at 240 volts, and has a current rating of 60 amps. With an interrupting capacity of 10kA at 240V, this breaker is designed for reliable performance. Manufactured by Emery Jensen Distribution LLC, the CH260 offers a plug-in connection and includes thermal magnetic protection for added safety.
GENERAL SPECIFICATIONS
| Part Number |
CH260
|
| Category |
Circuit Breaker |
| Item Subcategory |
Molded Case |
| Family |
CH Series |
| Type |
CH |
| Voltage |
240 |
| Amperage |
60 |
| Phase |
1 |
| Poles |
2 |
| AIC rating |
10kA@240V |
| Connection |
Plug-In |
| Functions |
LI - Long-Time and Instantaneous |
| MCM Size |
Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 2 AWG (Cu/Al) |
| Breaker Type |
CH |
| Protection |
Thermal Magnetic |
PRODUCT SPECIFICATIONS
| Dimensions |
1-1/2 in x 3.5 in |
| Weight |
2 lb |
| Panel Type |
Type CH Loadcenters |
| Wire Size |
14 To 2 AWG (Aluminum/Copper) |
PRODUCT DATASHEET
CH260_Product_Datasheet
