Description

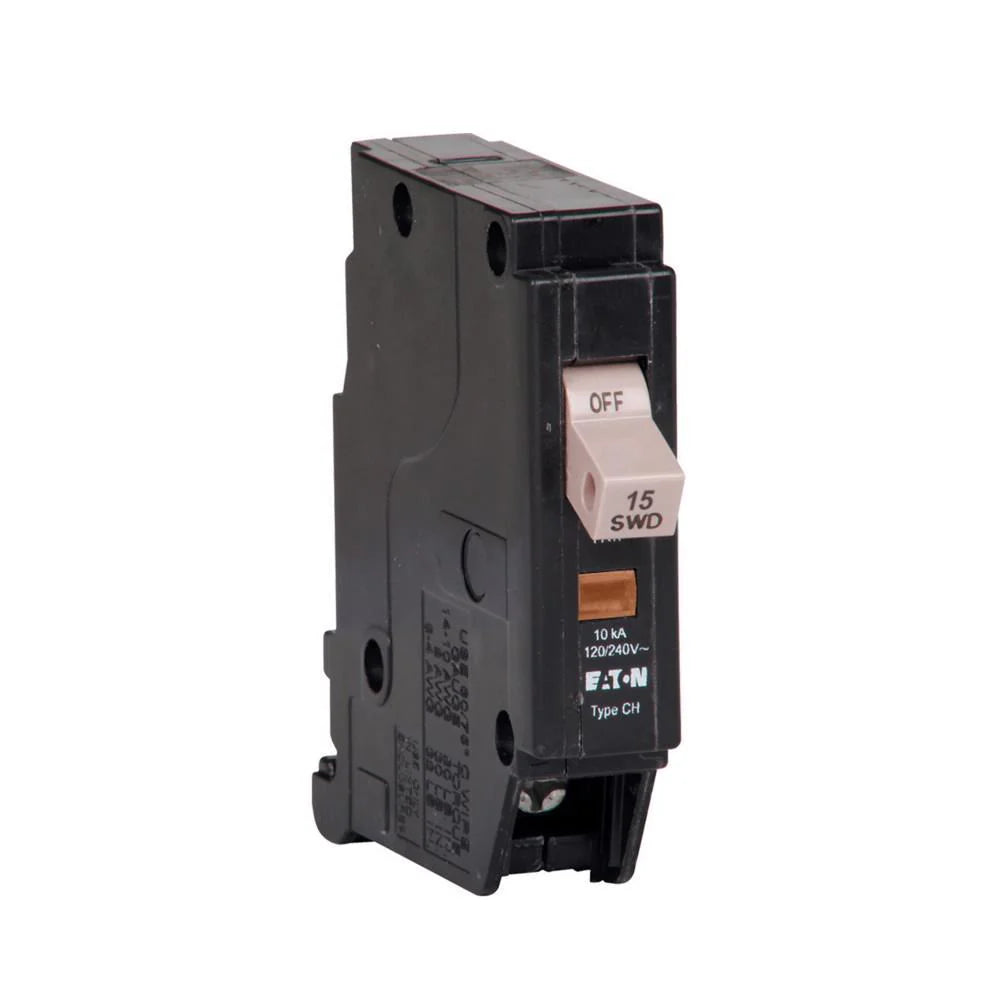

CHF115 - Eaton Cutler-Hammer - Plug-In 15 Amp 240 Volt 1 Pole Circuit Breaker
Eaton CH Thermal magnetic circuit breaker, Type CHF 3/4-Inch standard circuit breaker, 15 A, 10 kAIC, Single-pole, 120/240V, CHF, Trip flag, common breaker trip, (1) #14-8 AWG, (2) #14-10 AWG Cu/Al, CHF, Type CH Loadcenters
GENERAL SPECIFICATIONS
| Product Name |
Eaton CH thermal magnetic circuit breaker
|
| Catalog Number |
CHF115
|
| UPC |
786685361833
|
| Product Length/Depth |
0.7 in
|
| Product Height |
2.6 in
|
| Product Width |
3.2 in
|
| Product Weight |
0.25 lb
|
| Compliances |
HACR Rated
|
| Certifications |
UL 489
|
| Catalog Notes |
Switching Duty Rated, HACR Rated, Single-Pole Requires One 2/4-Inch Space, With Trip Indication.
|
PRODUCT SPECIFICATIONS
| Used with |
Type CH Loadcenters
|
| Type |
Type CHF 3/4-Inch standard circuit breaker
|
| Amperage Rating |
15 A
|
| Voltage rating |
120/240 V
|
| Trip Type |
Trip flag
|
| Circuit breaker type |
CHF
|
| Interrupt rating |
10 kAIC
|
| Main circuit breaker |
CHF
|
| Wire size |
(2) #14-10 AWG Cu/Al
(1) #14-8 AWG |
| Number of poles |
Single-pole
|
