Description

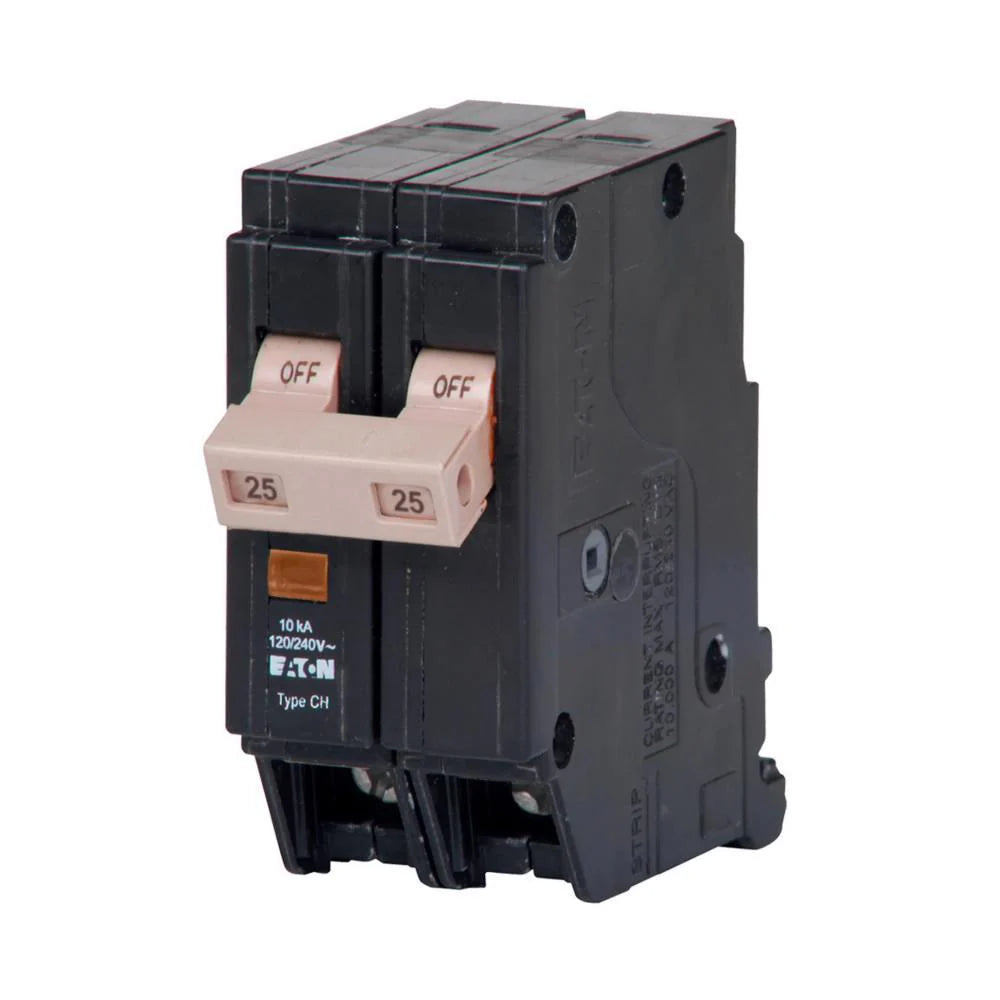

CHF225 - Eaton Cutler-Hammer - Plug-In 25 Amp 240 Volt 2 Pole Circuit Breaker
Eaton CH thermal magnetic circuit breaker,Type CHF 3/4-Inch standard circuit breaker,25 A,10 kAIC,Two-pole,120/240V,CHF,Trip flag, common breaker trip,(1) #14-8 AWG, (2) #14-10 AWG Cu/Al,CHF,Type CH Loadcenters.
GENERAL SPECIFICATIONS
| Product Name | Eaton CH thermal magnetic circuit breaker |
| Catalog Number | CHF225 |
| UPC | 786685361895 |
| Product Length/Depth | 1.5 in |
| Product Height | 2.6 in |
| Product Width | 0.75 in |
| Product Weight | 0.5 lb |
| Compliances | HACR Rated |
| Certifications | UL 489 |
| Catalog Notes | HACR Rated. Two-Pole 120/240V Common Trip Requires Two 3/4-Inch Spaces. With Trip Indication |
PRODUCT SPECIFICATIONS
| Used with | Type CH Loadcenters |
| Type | Type CHF 3/4-Inch standard circuit breaker |
| Amperage Rating | 25 A |
| Voltage rating | 120/240 V |
| Trip Type | Trip flag |
| Circuit breaker type | CHF |
| Interrupt rating | 10 kAIC |
| Main circuit breaker | CHF |
| Wire size | (1) #14-8 AWG (2) #14-10 AWG Cu/Al |
| Number of poles | Two-pole |
