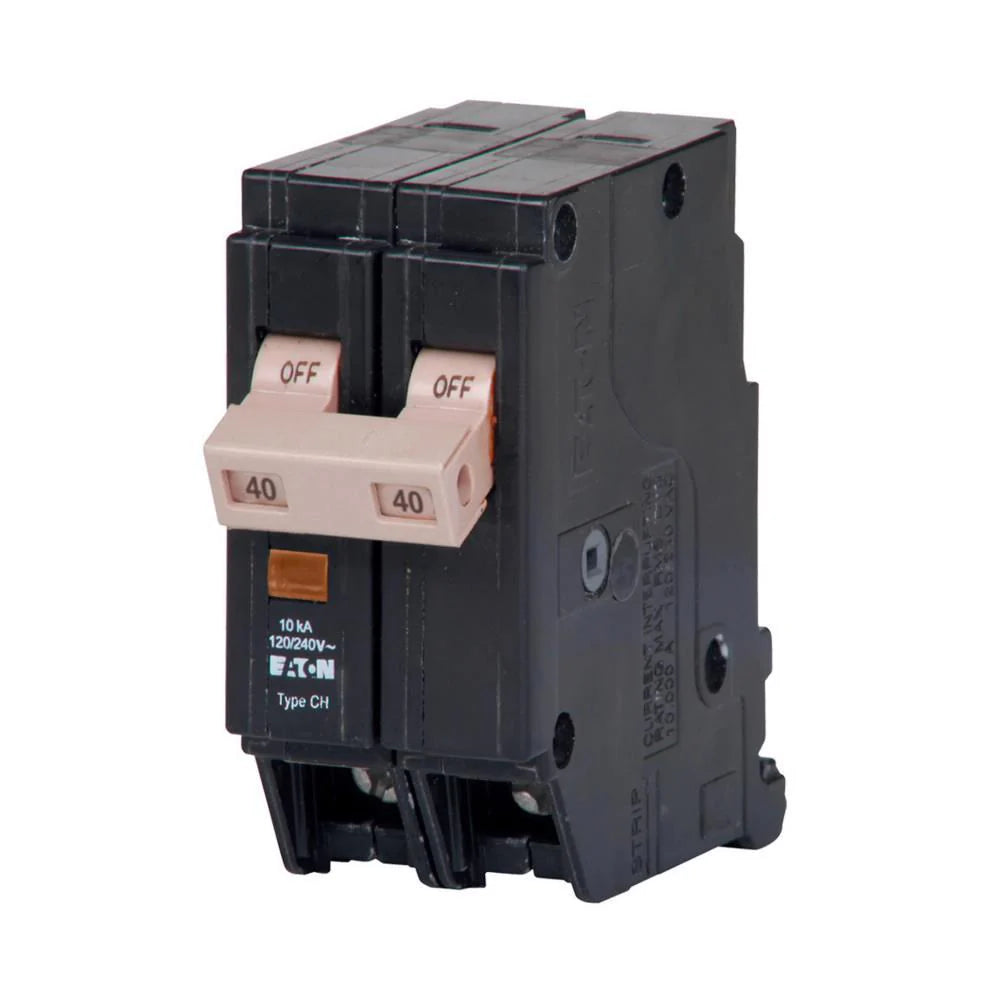

CHF240 - Eaton Cutler-Hammer - Plug-In 40 Amp 240 Volt 2 Pole Circuit Breaker
Eaton CH Thermal magnetic circuit breaker, Type CHF 3/4-Inch standard circuit breaker, 40 A, 10 kAIC, Two-pole, 120/240V, CHF, Trip flag, common breaker trip, #10-1/0 AWG Cu/Al, CHF, Type CH Loadcenters.
GENERAL SPECIFICATIONS
| Product Name |
Eaton CH thermal magnetic circuit breaker |
| Catalog Number |
CHF240 |
| UPC |
786685532165 |
| Product Length/Depth |
1.5 in |
| Product Height |
2.6 in |
| Product Width |
3.3 in |
| Product Weight |
0.55 lb |
| Compliances |
HACR Rated |
| Certifications |
UL 489 |
| Catalog Notes |
HACR Rated. Two-Pole 120/240V Common Trip Requires Two 3/4-Inch Spaces. With Trip Indication |
PRODUCT SPECIFICATIONS
| Used with |
Type CH Loadcenters |
| Type |
Type CHF 3/4-Inch standard circuit breaker |
| Amperage Rating |
40 A |
| Voltage rating |
120/240 V |
| Trip Type |
Trip flag |
| Circuit breaker type |
CHF |
| Interrupt rating |
10 kAIC |
| Main circuit breaker |
CHF |
| Wire size |
#10-1/0 AWG Cu/Al |
| Number of poles |
Two-pole |
PRODUCT DATASHEET
