Description

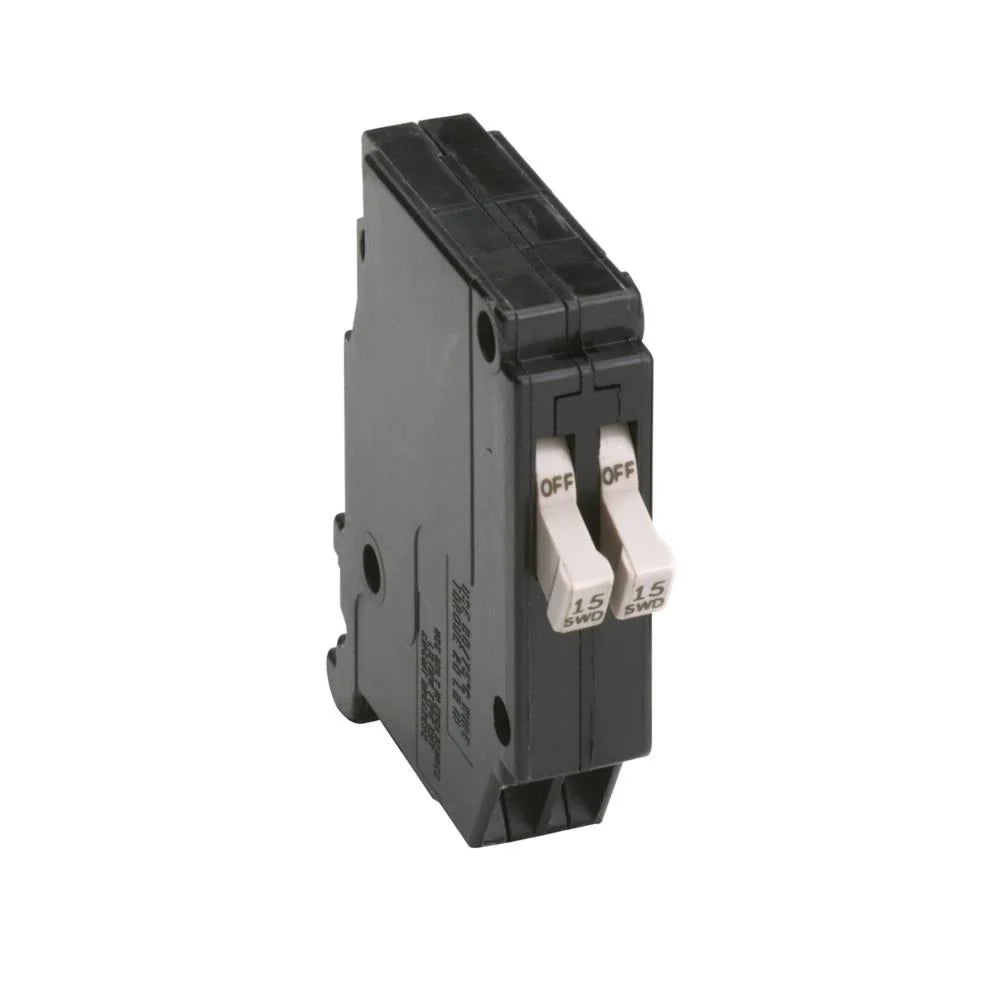

CHT1515 - Eaton Cutler-Hammer - Plug-In 15 Amp 240 Volt 1 Pole Circuit Breaker
Eaton CH thermal magnetic circuit breaker,Type CHT twin breaker,50 A,10 kAIC,Single-pole,120/240V,CHT,#14-8 AWG Cu/Al,CHT,Type CH Loadcenters,50-60 Hz,Switching duty rated, HCAR rated.
GENERAL SPECIFICATIONS
| Product Name |
Eaton CH thermal magnetic circuit breaker
|
| Catalog Number |
CHT1515
|
| UPC |
782113631530
|
| Product Length/Depth |
0.7 in
|
| Product Height |
2.6 in
|
| Product Width |
3.2 in
|
| Product Weight |
0.25 lb
|
| Certifications |
UL Listed
UL 489 |
PRODUCT SPECIFICATIONS
| Used with |
Type CH Loadcenters
|
| Type |
Type CHT twin breaker
|
| Amperage Rating |
15-15A
|
| Voltage rating |
120/240 V
|
| Circuit breaker type |
CH
|
| Frequency rating |
50-60 Hz
|
| Mounting Method |
Plug-on
|
| Rating |
Switching duty rated, HCAR rated
|
| Interrupt rating |
10 kAIC
|
| Main circuit breaker |
CHT
|
| Wire size |
#14-8 AWG Cu/Al
|
| Number of poles |
Single-pole
|
PRODUCT DATASHEET
