Description

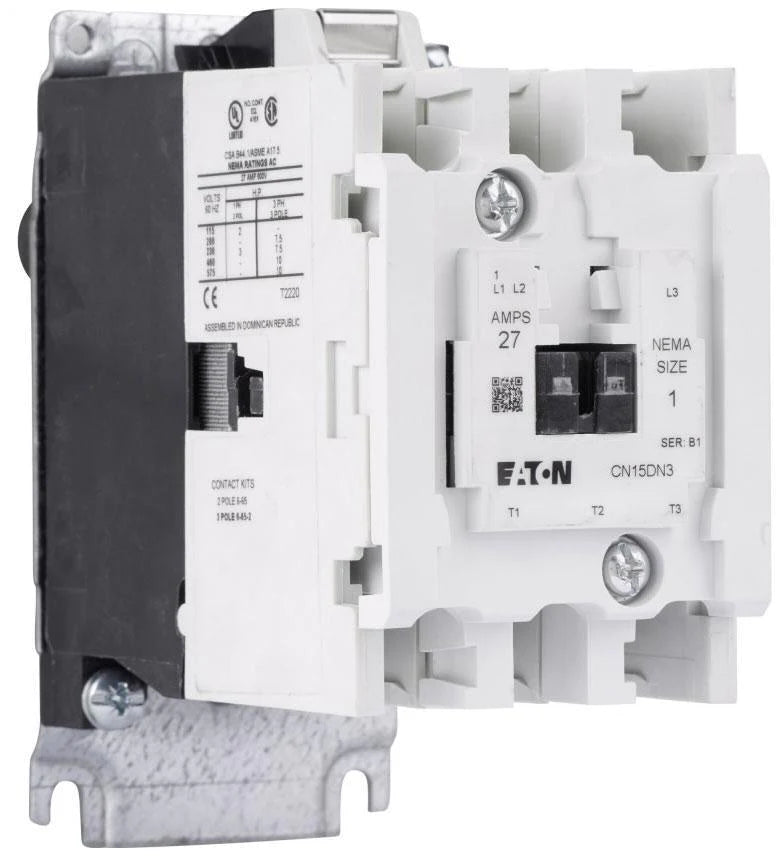

CN15DN3AB- Eaton/Cutler-Hammer Non-Reversing Contactor
Eaton Freedom NEMA motor control contactor, NEMA Freedom Series Non-Reversing contactor, 2 hp at 115V, 3 hp at 230V, 7-1/2 hp at 208,240V, 10 hp at 480,600V maximum horsepower, 120V/60 Hz or 110V/50 Hz coil voltage, 27A, Five-pole, Size 1
GENERAL SPECIFICATIONS
| Product Name | Eaton Freedom NEMA motor control contactor |
| Catalog Number | CN15DN3AB |
| UPC | 782113973524 |
| Product Length/Depth | 4.44 in |
| Product Height | 5.05 in |
| Product Width | 2.56 in |
| Product Weight | 3.1 lb |
| Certifications | CSA Certified UL Listed |
| Catalog Notes | Common Control |
| Product Type | Motor control contactor |
PRODUCT SPECIFICATIONS
| HP rating - max | 2 hp at 115V, 3 hp at 230V, 7-1/2 hp at 208,240V, 10 hp at 480,600V |
| Phase | Single-phase, three-phase |
| Amperage Rating | 27A |
| Size | 1 |
