Description

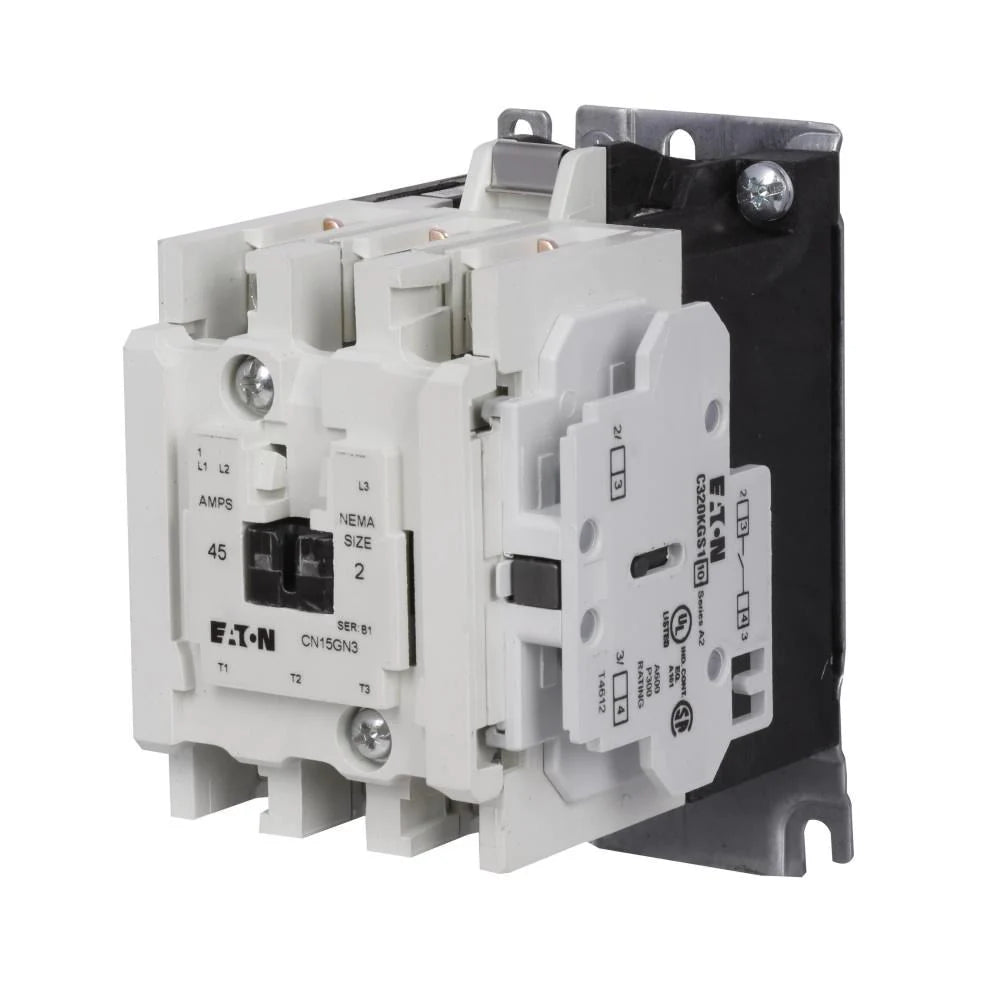

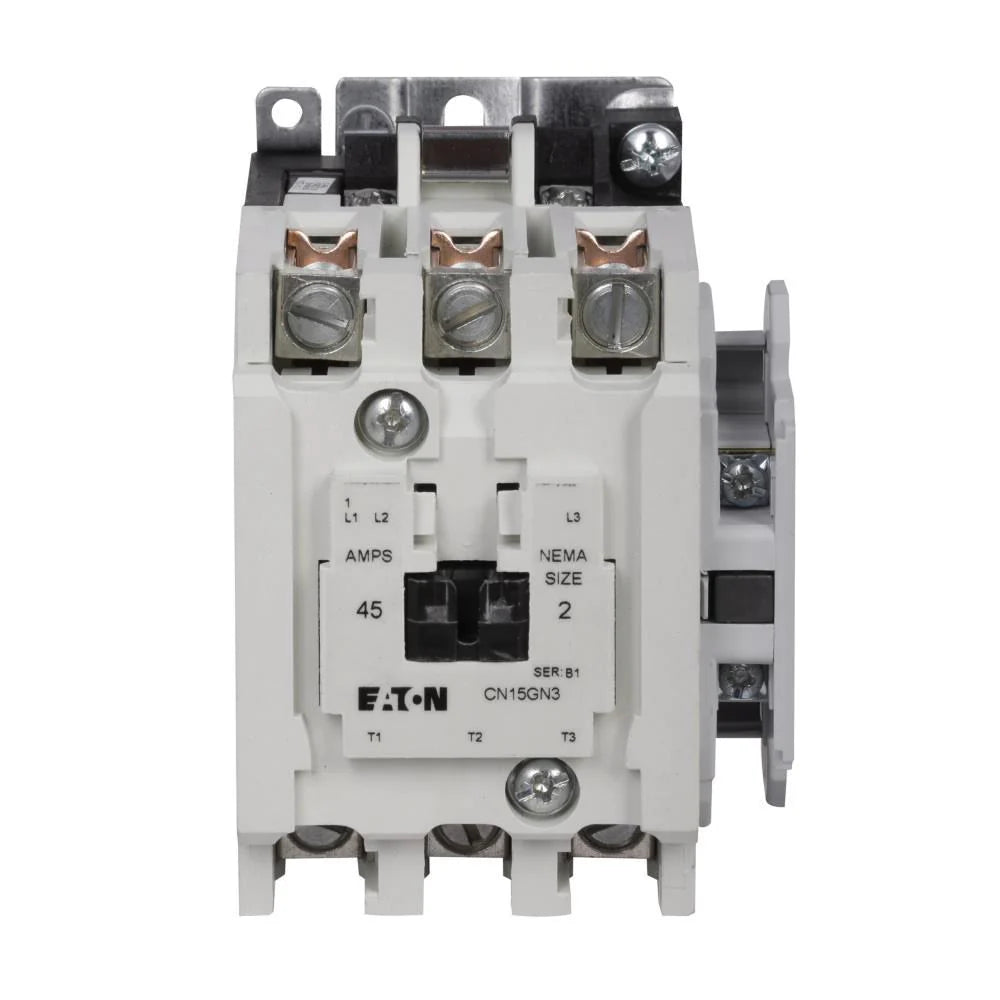

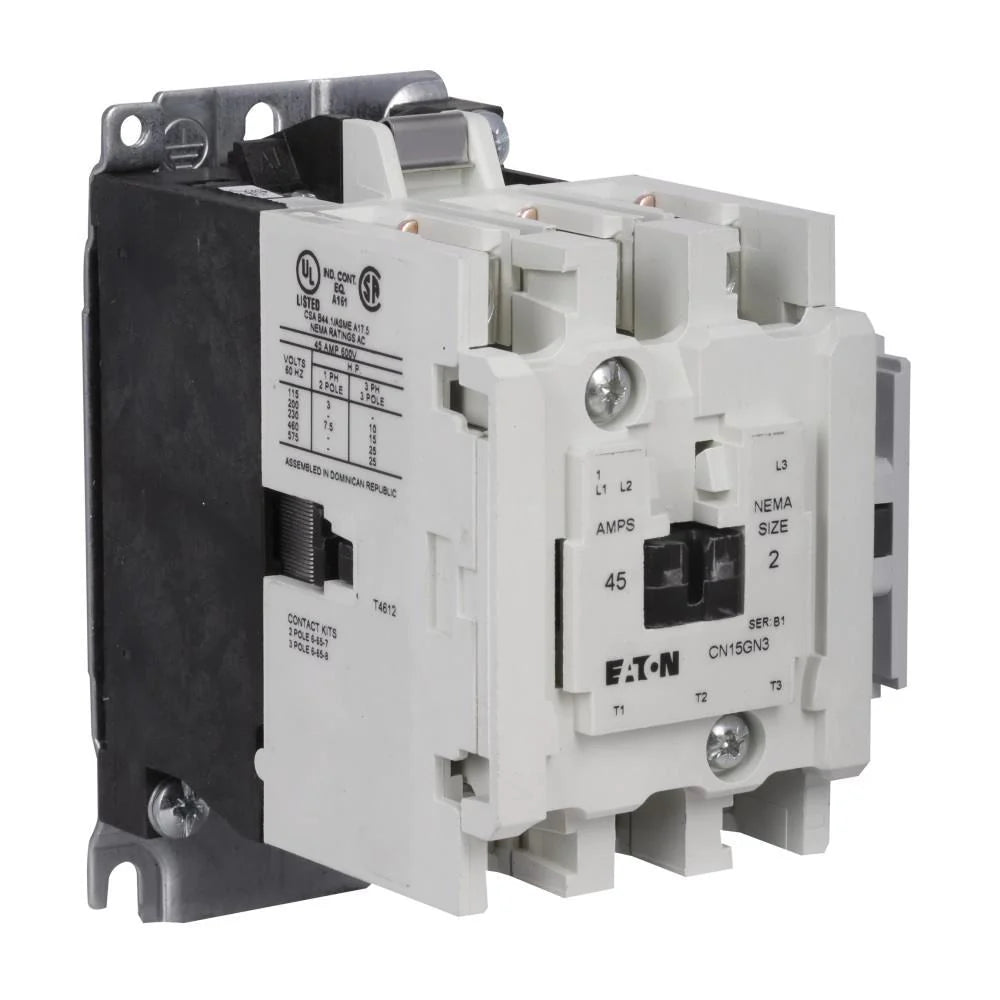

CN15GN3AB - Eaton Cutler-Hammer - Non-Reversing Contactor
Eaton Freedom NEMA motor control contactor, NEMA Freedom Series Non-Reversing contactor, 3 hp at 115V, 7-1/2 hp at 230V, 10 hp at 208V, 15 hp at 240V, 25 hp at 480,600V maximum horsepower, 120V/60 Hz, 45A, Four-pole, Size 2
GENERAL SPECIFICATIONS
|
PRODUCT NAME |
Eaton Freedom NEMA motor control contactor |
|
CATALOG NUMBER |
CN15GN3AB |
|
UPC |
782113973555 |
|
PRODUCT LENGTH/DEPTH |
4.44 in |
|
PRODUCT HEIGHT |
5.05 in |
|
PRODUCT WIDTH |
2.56 in |
|
PRODUCT WEIGHT |
3.9 lb |
|
CERTIFICATIONS |
CSA Certified UL Listed |
|
CATALOG NOTES |
Common Control |
| Product Type |
Motor control contactor
|
PRODUCT SPECIFICATIONS
| HP rating - max |
3 hp at 115V, 7-1/2 hp at 230V, 10 hp at 208V, 15 hp at 240V, 25 hp at 480,600V
|
| Phase |
Single-phase, three-phase
|
| Amperage Rating |
45A
|
| Size |
2
|
PRODUCT DATASHEET
