Description

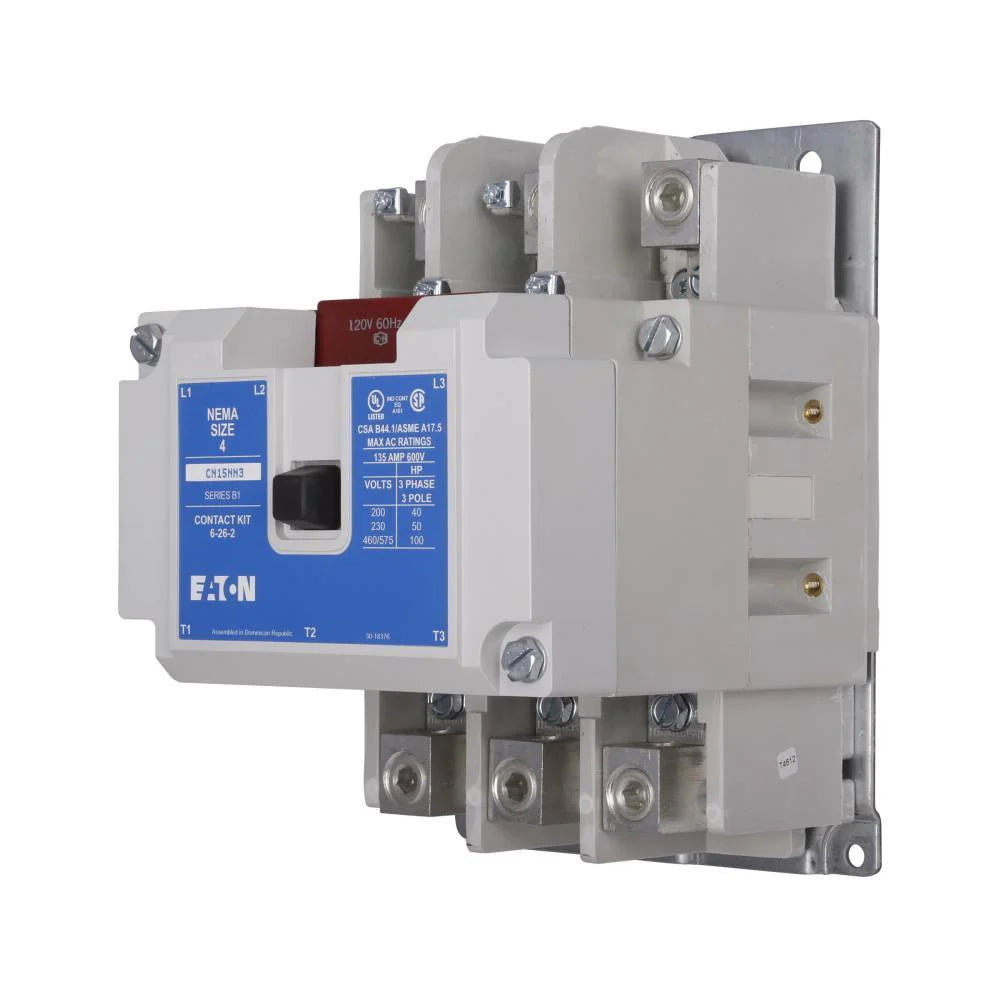

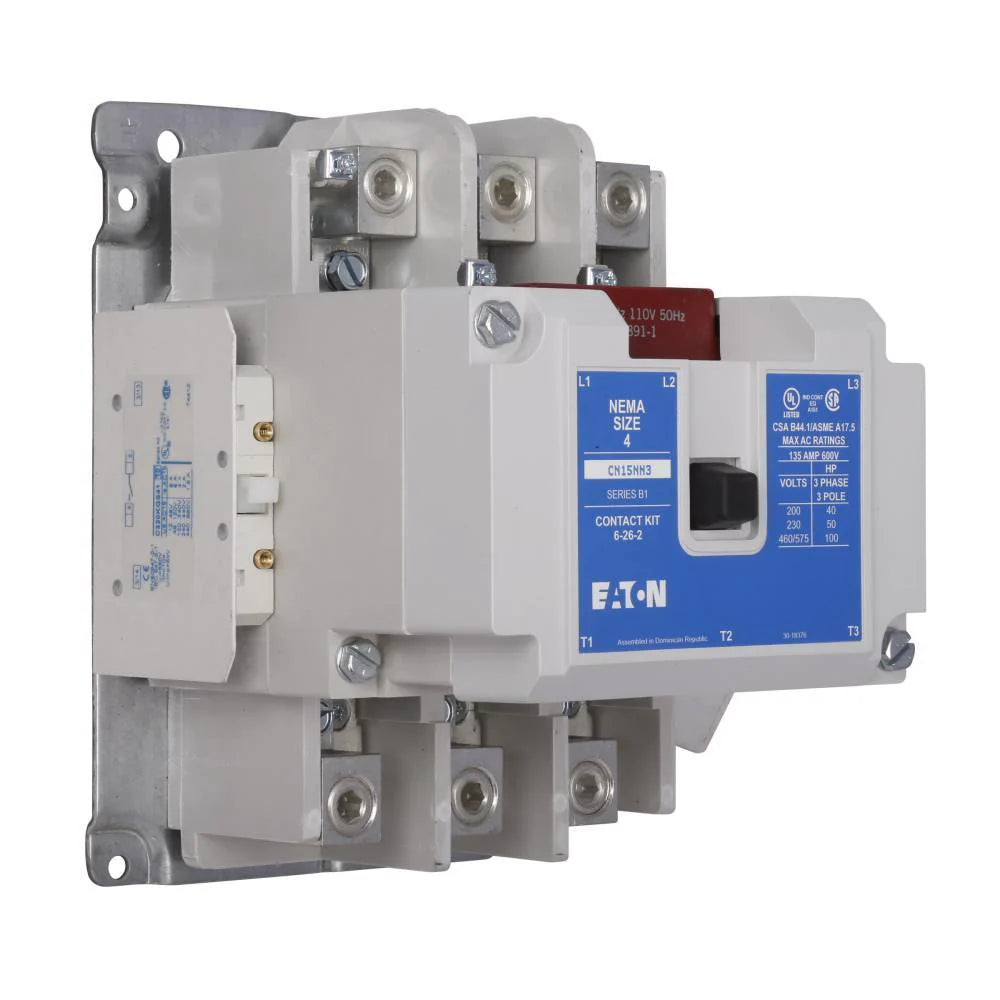

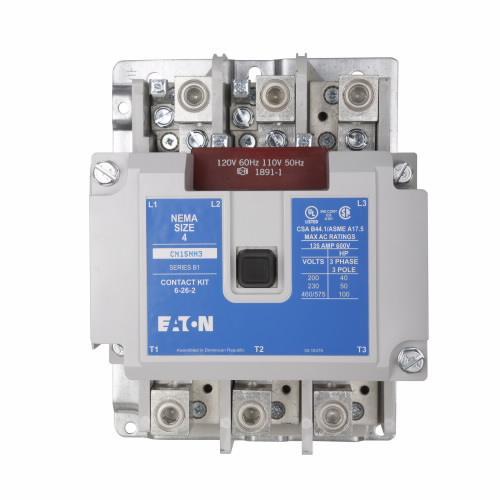

CN15NN3A - Eaton Cutler-Hammer - 135 Amp 3 Pole 600 Volt Magnetic Contactor
Eaton Freedom NEMA Contactor, Full voltage non-reversing, NEMA Size 4 open enclosure - 135 A, Three-pole, 120/60 or 110/50 coil voltage
GENERAL SPECIFICATIONS
|
PRODUCT NAME |
Eaton Freedom NEMA motor control contactor |
|
CATALOG NUMBER |
CN15NN3A |
|
UPC |
782113604138 |
|
PRODUCT LENGTH/DEPTH |
7.25 in |
|
PRODUCT HEIGHT |
9.1 in |
|
PRODUCT WIDTH |
7.05 in |
|
PRODUCT WEIGHT |
19.45 lb |
|
CERTIFICATIONS |
CSA Certified UL Listed |
|
CATALOG NOTES |
Common Control |
| Product Type |
Motor control contactor
|
PRODUCT SPECIFICATIONS
| NEMA frame size |
NEMA Size 4
|
| Relay |
None
|
| Type |
Contactor
|
| Full load current range |
120 V at 60 Hz, 110 V at 50 Hz
|
| Configuration |
Non-reversing
|
| Phase |
Three-phase
|
| Amperage Rating |
135 A
|
| Size |
4
|
| Horsepower |
40 hp at 208 V, 50 hp at 240 V, 100 hp at 480/600 V
|
| Overload relay |
None
|
| Coil voltage |
120/60 or 110/50
|
PRODUCT DATASHEET
