Description

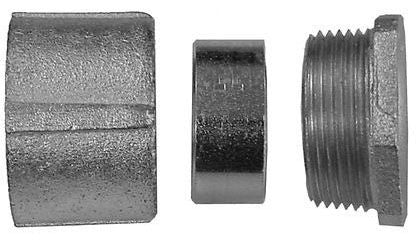

EC75 - Appleton - 3/4" 3-Piece Concretetight Malleable Iron Conduit Union
3-PIECE, THREADED TYPE; ZINC ELECTROPLATED MALLEABLE IRON MATERIAL; 1.63 INCH; IMC/RIGID METAL CONDUIT USED ON; UL 514B, CSA C22.2 APPROVAL; 1.75 INCH DIAMETER; 3/4 INCH TRADE SIZE; CONCRETE TIGHT; APPLICATION COMMERCIAL/INDUSTRIAL; APPLICABLE STANDARD NEC/CEC
GENERAL SPECIFICATIONS
| Type | 3-Piece, Threaded |
| Trade Size | 3/4 Inch |
| Diameter | 1.75 Inch |
| Length | 1.63 Inch |
| Material | Zinc Electroplated Malleable Iron |
| Constructional Feature | Concrete Tight |
| Approval | UL 514B, CSA C22.2 |
| Used On | IMC/Rigid Metal Conduit |
| Additional Information | Application Commercial/Industrial; Applicable Standard NEC/CEC |
