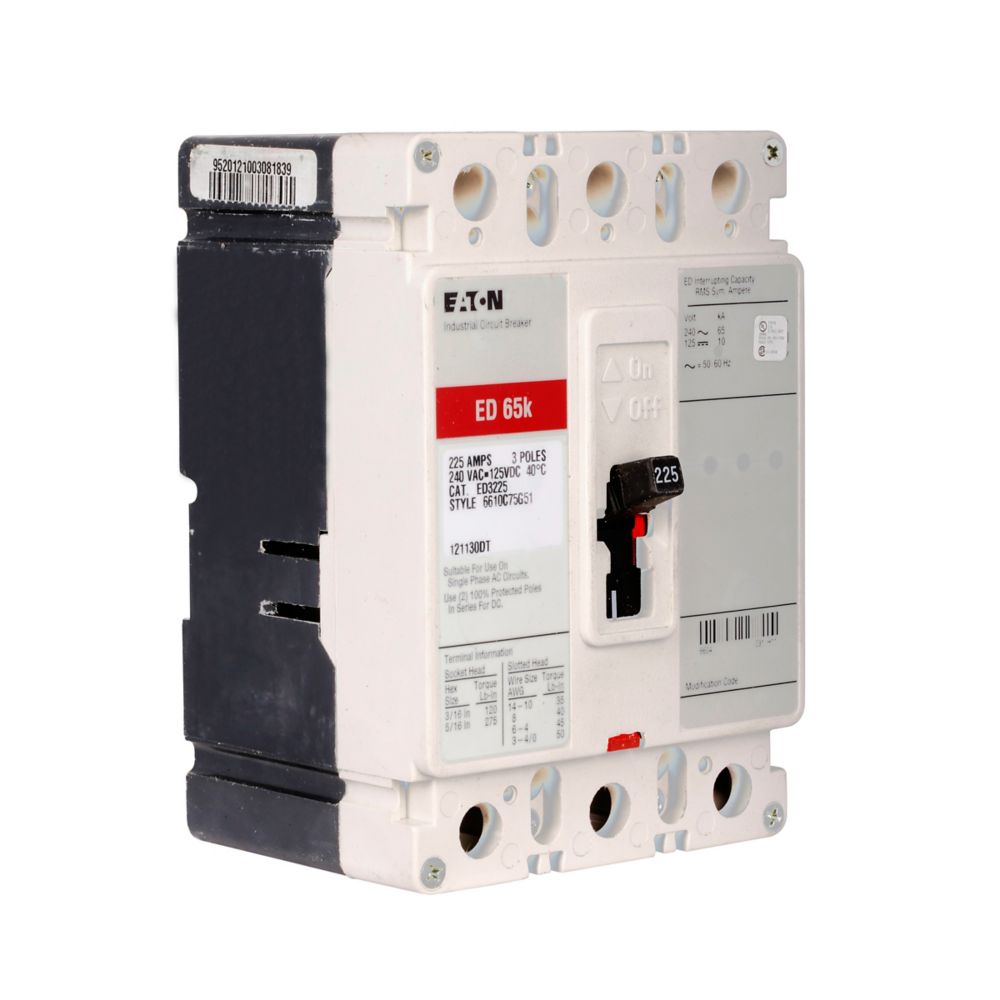

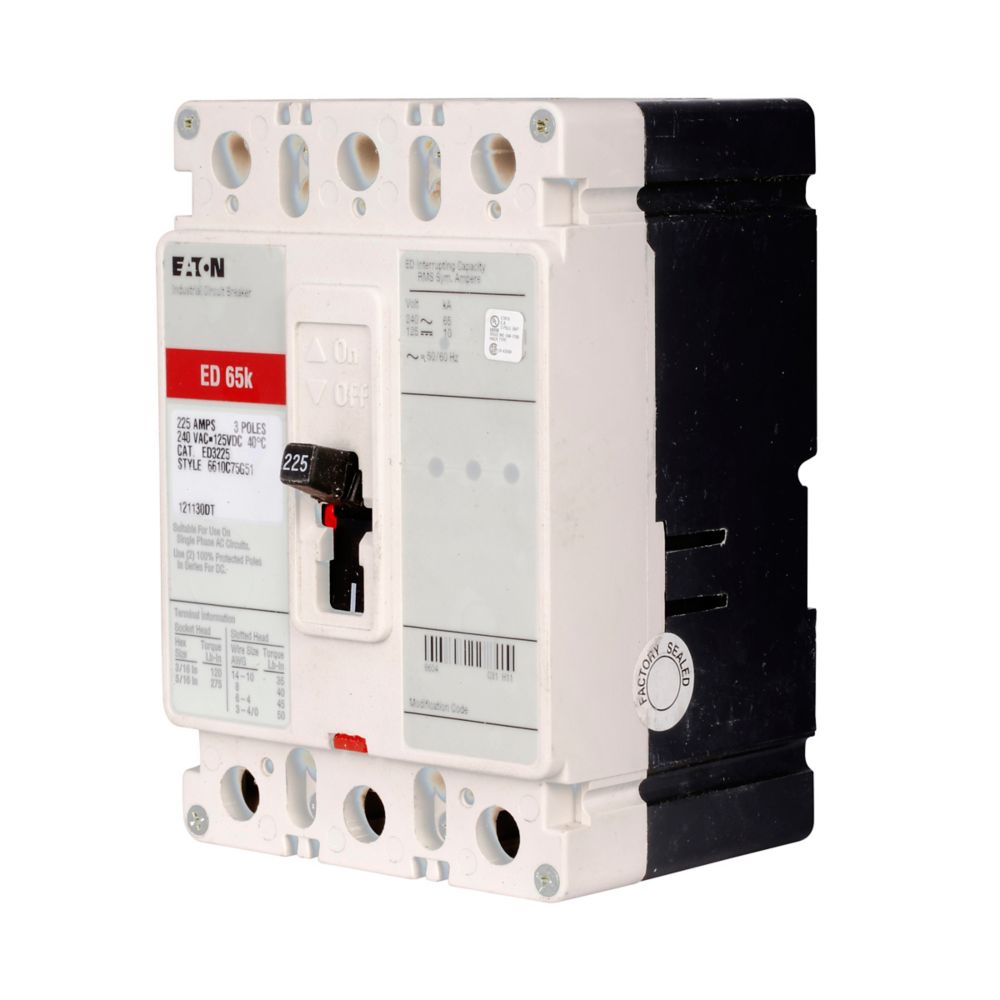

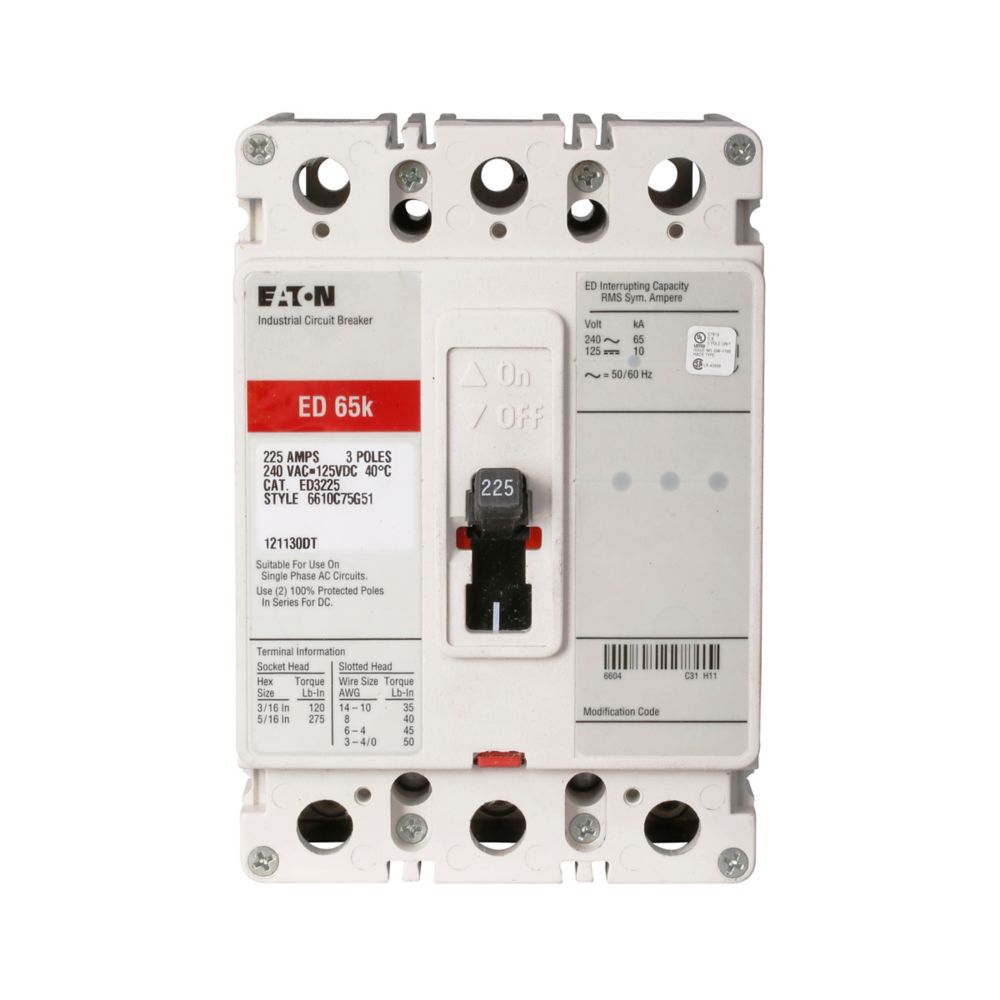

ED3225L - Eaton Cutler-Hammer - Feed-Thru 224 Amp 3 Pole 240 Volt Molded Case Circuit Breaker
Eaton Series C complete molded case circuit breaker, F-frame, ED, Complete breaker, Fixed thermal, fixed magnetic trip type, Three-pole, 225A, 240 Vac, 125 Vdc, 65 kAIC at 240 Vac, Line and load, 50/60 Hz.
GENERAL SPECIFICATIONS
| Product Name |
Eaton Series C complete molded case circuit breaker |
| Catalog Number |
ED3225L |
| UPC |
786679454367 |
| Product Length/Depth |
3.38 in |
| Product Height |
6 in |
| Product Width |
4.13 in |
| Product Weight |
4.5 lb |
| Certifications |
UL Listed |
PRODUCT SPECIFICATIONS
| Amperage Rating |
225 A |
| Voltage rating |
240 Vac, 125 Vdc |
| Trip Type |
T186 |
| Circuit breaker type |
ED |
| Circuit breaker frame type |
Complete breaker |
| Series |
Series C |
| Terminals |
Line and load |
| Frame |
F |
| Frequency rating |
50 to 60 Hz |
| Interrupt rating |
65 kAIC at 240 Vac |
| Number of poles |
Three-pole |
