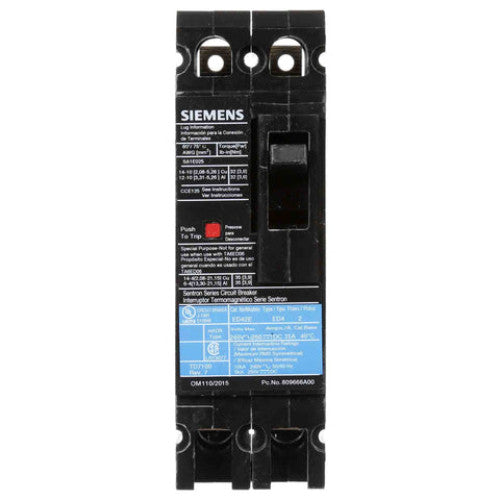

ED42B020L - Siemens - 20A 480V 2 Pole Circuit Breaker Lugs
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH STANDARD BREAKING CAPACITY. MEETS UL 489 / IEC 60947-2 STANDARDS. 20A 2-POLE BREAKER (18KAIC AT 480V). SPECIAL FEATURES: LINE AND LOAD SIDE LUGS (SA1E025) WIRE RANGE: 14 - 10AWG (CU) / 12 - 10AWG (AL). DIMENSIONS (W x H x D) IN: 2 x 6.35 x 3.92.
TECHNICAL SPECIFICATIONS
Product related
| Article number |
US2:ED42B020L
|
| MFN |
ED42B020L |
| UPC |
783643083776 |
| Commodity Code |
8536200020 |
Pricing related
Delivery related
| Export Control Regulations |
AL : N / ECCN : EAR99 |
| Standard delivery time |
60 Day/Days |
| Packaging dimensions (L x W x H) |
Not available |
| Net weight |
2.712 lb |
| Quantity Unit |
1 Piece |
| Packaging Quantity |
1 |
| Dangerous goods |
No |
Environment related
| WEEE (2012/19/EU) Take-Back Obligations |
Yes |
| Compliance with the substance restrictions according to RoHS directive |
Since: 11/02/2017 |
| SCIP Number |
not available |
Siemens specific
| Product Group |
3741 |
| Catalog ID |
LV10.1 |
| Group Code |
P360 |
| Country of origin |
Mexico |
| Returnable Status |
No |
PRODUCT DATASHEET
ED42B020L
