Description

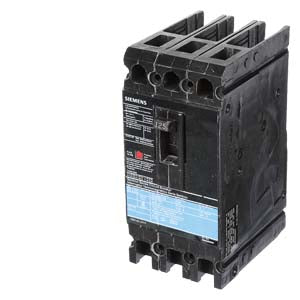

ED43B125 - Siemens - 125A 480V 3 Pole Circuit Breaker
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH STANDARD BREAKING CAPACITY. MEETS UL 489 / IEC 60947-2 STANDARDS. 125A 3-POLE BREAKER (18KAIC AT 480V). SPECIAL FEATURES: LOAD LUGS ONLY (TA1E6125) WIRE RANGE: 3 - 3/0AWG (CU) / 1 - 2/0AWG (AL). DIMENSIONS (W x H x D) IN: 3 x 6.35 x 3.92.
TECHNICAL SPECIFICATIONS
Product related
| Article number | US2:ED43B125 |
| MFN | ED43B125 |
| UPC | 783643209503 |
| Commodity Code | 8536200020 |
Pricing related
| Price Group | NIU |
Delivery related
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Standard delivery time | 18 Day/Days |
| Packaging dimensions (L x W x H) | Not available |
| Net weight | 3.790 lb |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Dangerous goods | No |
Environment related
| WEEE (2012/19/EU) Take-Back Obligations | Yes |
| Compliance with the substance restrictions according to RoHS directive | Since: 10/10/2008 |
| SCIP Number | not available |
Siemens specific
| Product Group | 3741 |
| Catalog ID | LV10.1 |
| Group Code | P360 |
| Country of origin | Mexico |
| Returnable Status | Yes |
