Description

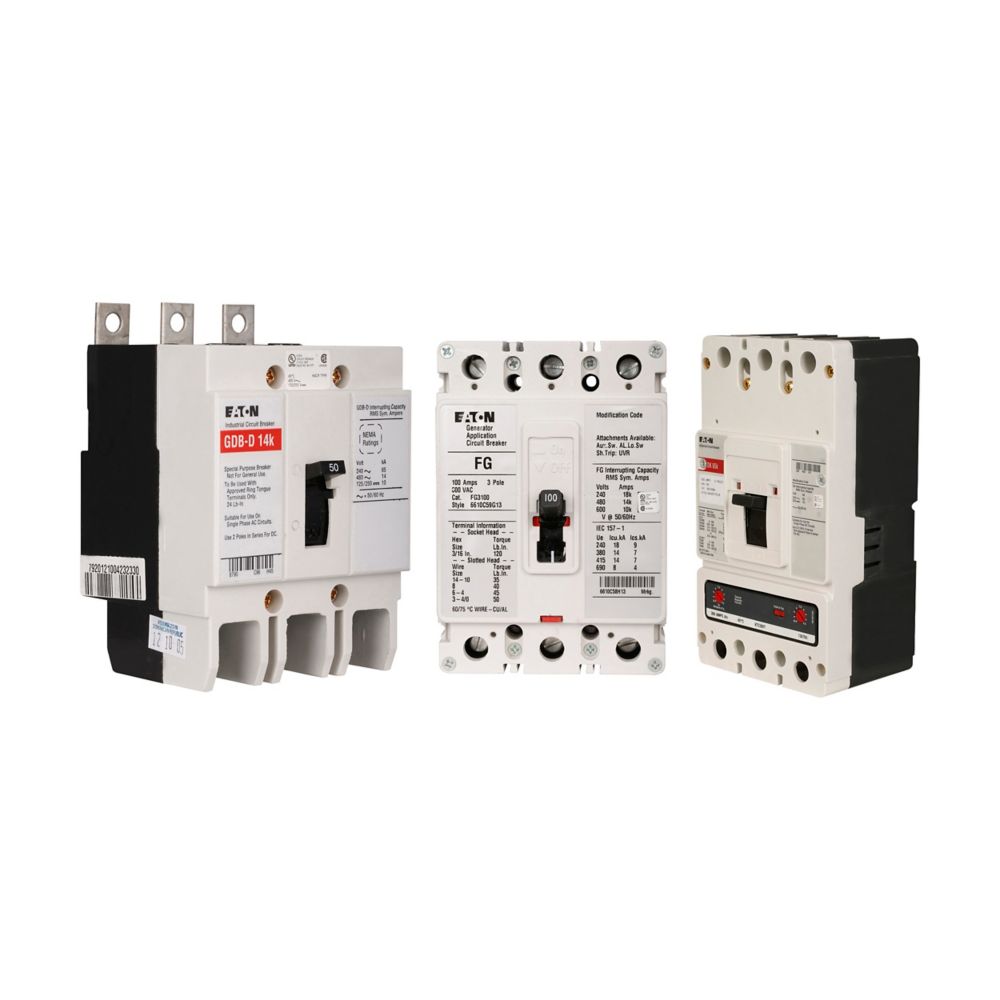

EDB3225L - Eaton Cutler-Hammer - Feed-Thru 225 Amp 3 Pole 240 Volt Eaton - Molded Case Circuit Breaker
Eaton Series C complete molded case circuit breaker, F-frame, ED, Complete breaker, Fixed thermal, fixed magnetic trip type, Three-pole, 225A, 240 Vac, 125 Vdc, 22 kAIC at 240 Vac, Line and load, 50/60 Hz
GENERAL SPECIFICATIONS
| Product Name | Eaton Series C complete molded case circuit breaker |
| Catalog Number | EDB3225L |
| UPC | 782116976188 |
| Product Length/Depth | 3.38 in |
| Product Height | 6 in |
| Product Width | 4.13 in |
| Product Weight | 3 lb |
| Certifications | UL Listed |
PRODUCT SPECIFICATIONS
| Amperage Rating | 225 A |
| Voltage rating | 240 Vac, 125 Vdc |
| Trip Type | T186 |
| Circuit breaker type | ED |
| Circuit breaker frame type | Complete breaker |
| Series | Series C |
| Terminals | Line and load |
| Frame | F |
| Frequency rating | 50 to 60 Hz |
| Interrupt rating | 22 kAIC at 240 Vac |
| Number of poles | Three-pole |
