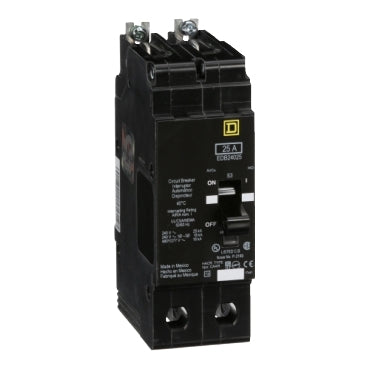

Description
| Main | |
|---|---|
| Range | 125 A Frame EDB-EGB-EJB |
| Product Type | Miniature circuit-breaker |
| Device Short Name | EDB |
| Module Type | E-Frame |
| Trip Unit Rating | 875 A |
| Complementary | |
| Rated Current | 15 A |
| Maximum Operating Voltage | 480Y/277 V AC |
| AWG Gauge | 12 AWG...6 AWG aluminium14 AWG...6 AWG copper |
| Breaking Capacity | 18 kA 277 V AC25 kA 240 V AC18 kA 480Y/277 V AC25 kA 120 V AC25 kA 120/240 V AC |
| Circuit Breaker Application | HACR ratedHID rated |
| Electrical Connection | Lugs aluminium |
| Holding Current | 270 A |
| Local Signalling | Trip indicator |
| Mounting Mode | Bolt-on |
| Number of Poles | 3 |
| Number of Spaces | 4 |
| Number of Spaces Required | 4 |
| Product Destination | NF panelboard |
| Protect Type | Short-circuitOverload |
| Device Composition | Shunt trip |
| Trip Unit Technology | Thermal-magnetic |
| Breaking Capacity Code | D |
| Tightening Torque | 30.09 lbf.in (3.4 N.m) 0.004…0.02 in² (2.5…16 mm²) (14 AWG...6 AWG) |
| Height | 5.66 in (143.76 mm) |
| Width | 3.92 in (99.57 mm) |
| Depth | 4.05 in (102.87 mm) |
| Product Weight | 4 lb(US) (1.8 kg) |
| Environment | |
| Product Certifications | cULus |
| Ambient Air Temperature for Operation | 104 °F (40 °C) |
| Ordering and shipping details | |
| Category | US10DE200931 |
| Discount Schedule | 0DE2 |
| GTIN | 785901159551 |
| Returnability | No |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 6.300 in (16.002 cm) |
| Package 1 Width | 6.200 in (15.748 cm) |
| Package 1 Length | 9.900 in (25.146 cm) |
| Package weight(Lbs) | 4.21 lb(US) (1.91 kg) |
| Compliance | |
| Compliance | TAA Compliant |
| Contractual warranty | |
| Warranty (in months) | 18 |
