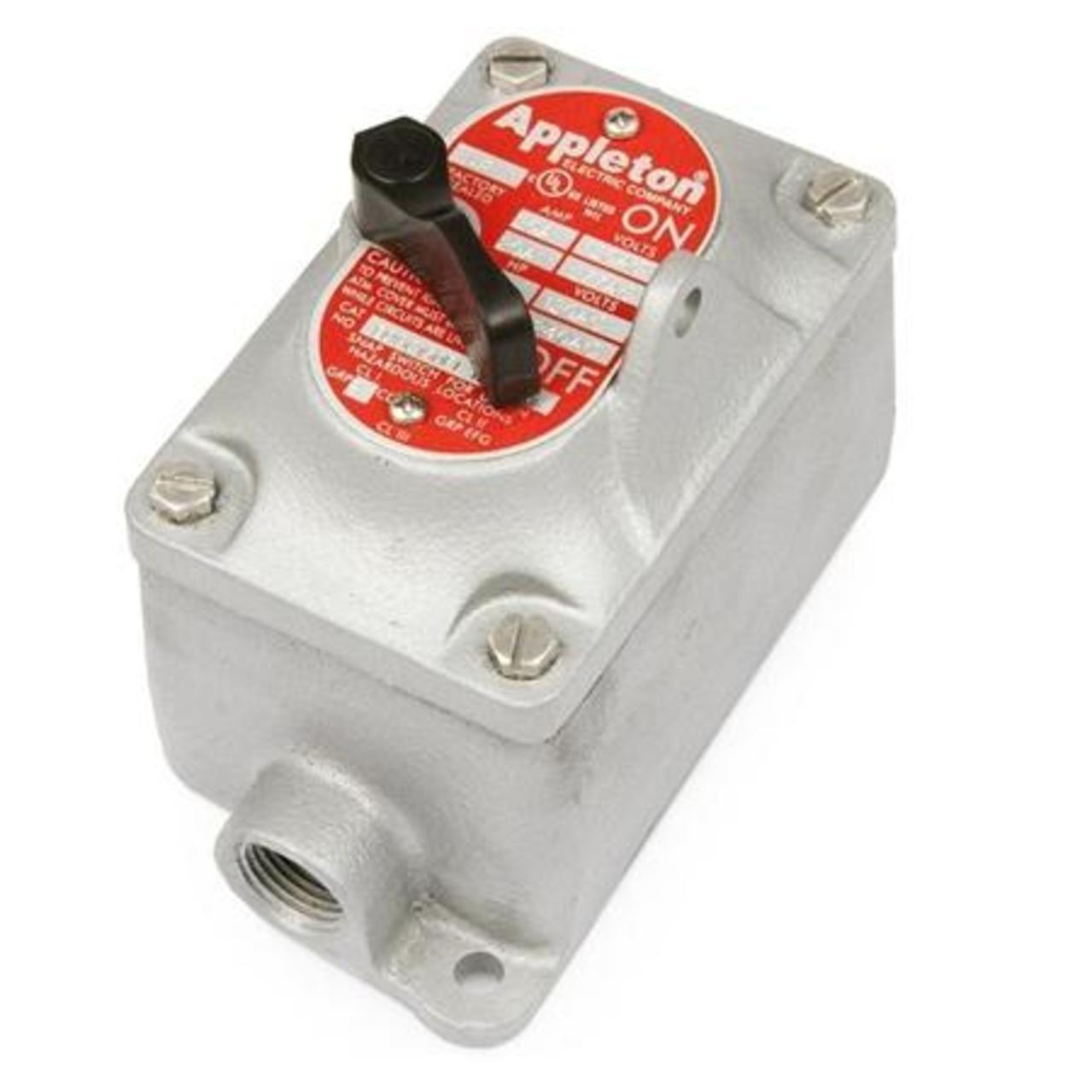

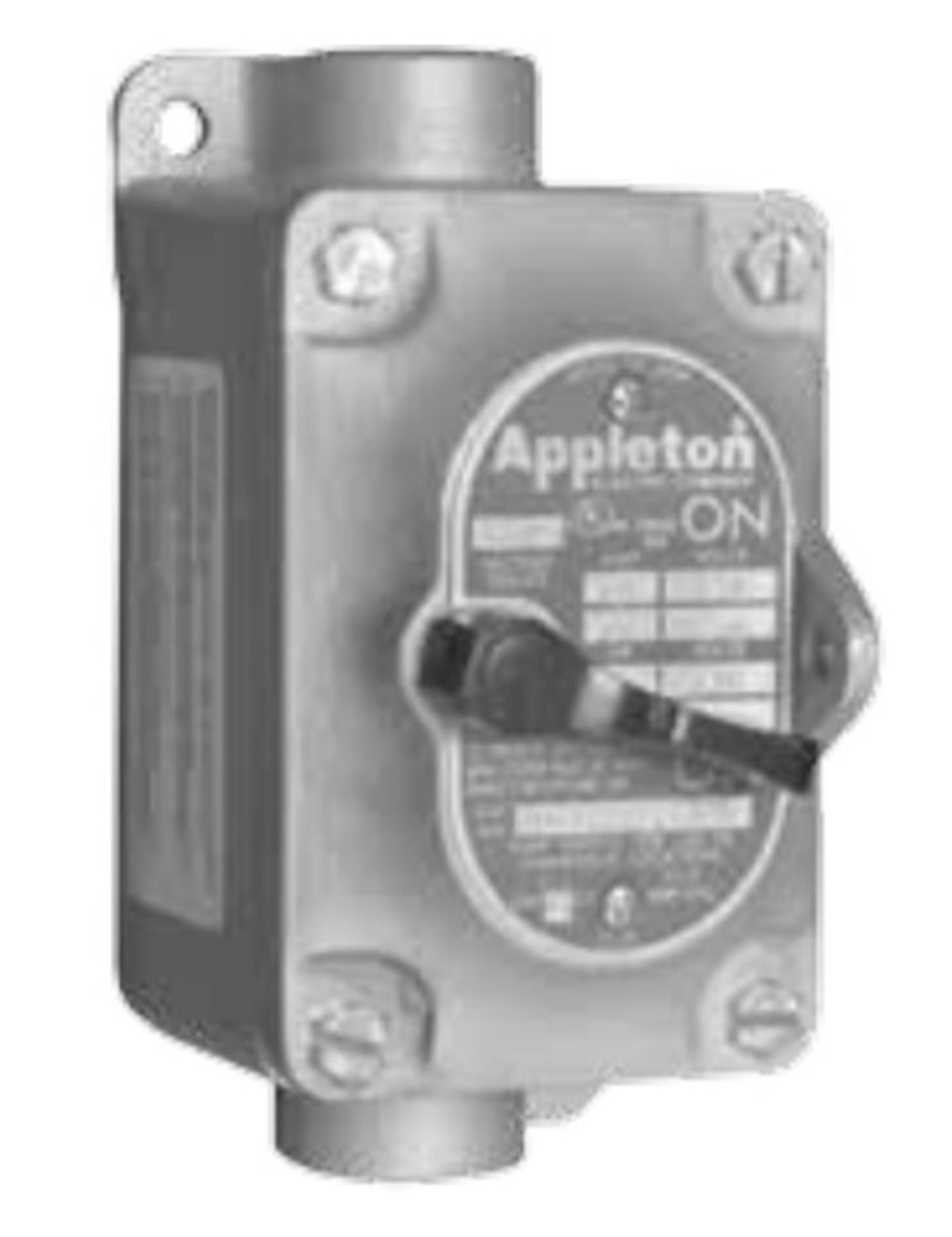

EDSC175F1 - Appleton - 20 Amp 1-Pole EDS Factory Sealed Tumbler Switch
A 20 A factory‑sealed front‑operated tumbler switch using the Contender™ EDSC platform. Malleable iron housing, smooth hub bushing, internal ground screw, stainless steel handle locked in ON/OFF, and captive screws. Sealing chamber confines arcing; UL 1203/UL 894 listed, rated for hazardous locations (Class I Div 1/2, II/III; NEMA 3, 7BCD, 9EFG)
GENERAL SPECIFICATIONS
-
- NEC and CEC Certifications and Compliances
- Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III; NEMA 3, 7 BCD, 9EFG
- Standard Materials
- Malleable iron body and covers. Copperfree (4/10 of 1% max.) aluminum sealing chamber (on select models). Nylon 6/6 handle. Corrosion resistant stainless steel nameplate mounting bracket (optional)
- Standard Finishes
- Tumbler switches have a triple-coat finish (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat
- Option Materials
- 1- or 2-gang copperfree (4/10 of 1% max.) aluminum bodies and covers available. See catalog pages for details
- Nameplate Mounting Bracket
- Make circuit description/identification easy and eliminate costly field installation (drilling/tapping) to accommodate circuit identification nameplates by using our bracket accessory. See catalog.
