Description

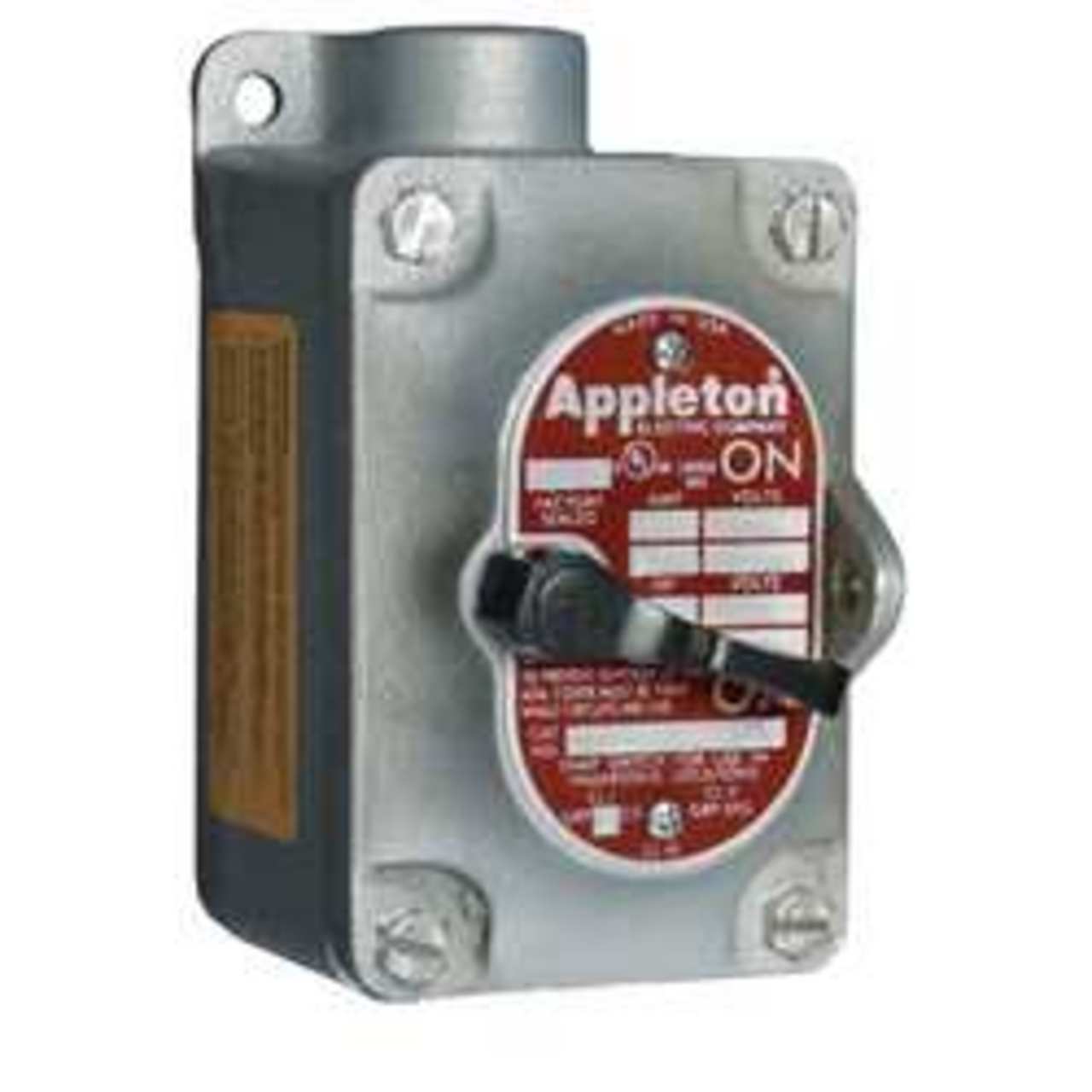

EDSC2129 - Appleton - 3/4" 1-G SNAP SWITCH STA-FS
A 20 A, 1-pole, ¾″‑hub factory‑sealed tumbler switch (Contender™ EDSC platform). Constructed with malleable iron body, smooth hub bushing, internal ground screw, and stainless‑steel hardware. Sealing chamber with threaded, lockable handle provides explosion‑proof operation in hazardous areas—rated for Class I Div 1/2, II/III; NEMA 3, 7CD, 9EFG; UL 894/UL 1203 compliant .
GENERAL SPECIFICATIONS
-
- NEC and CEC Certifications and Compliances
- Class I, Division 1, Groups C, D; Class I, Division 2, Group B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III; NEMA 3, 7CD, 9EFG
- Standard Materials
- Malleable iron body and covers. Nylon 6/6 handle. Corrosion resistant stainless steel nameplate mounting bracket (optional)
- Standard Finishes
- Tumbler switches have a triple-coat finish (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat
- Option Materials
- 1- or 2-gang copperfree (4/10 of 1% max.) aluminum bodies and covers available. See catalog pages for details
- Nameplate Mounting Bracket
- Make circuit description/identification easy and eliminate costly field installation (drilling/tapping) to accommodate circuit identification nameplates by using our bracket accessory. See catalog.
PRODUCT DATASHEET
