Description

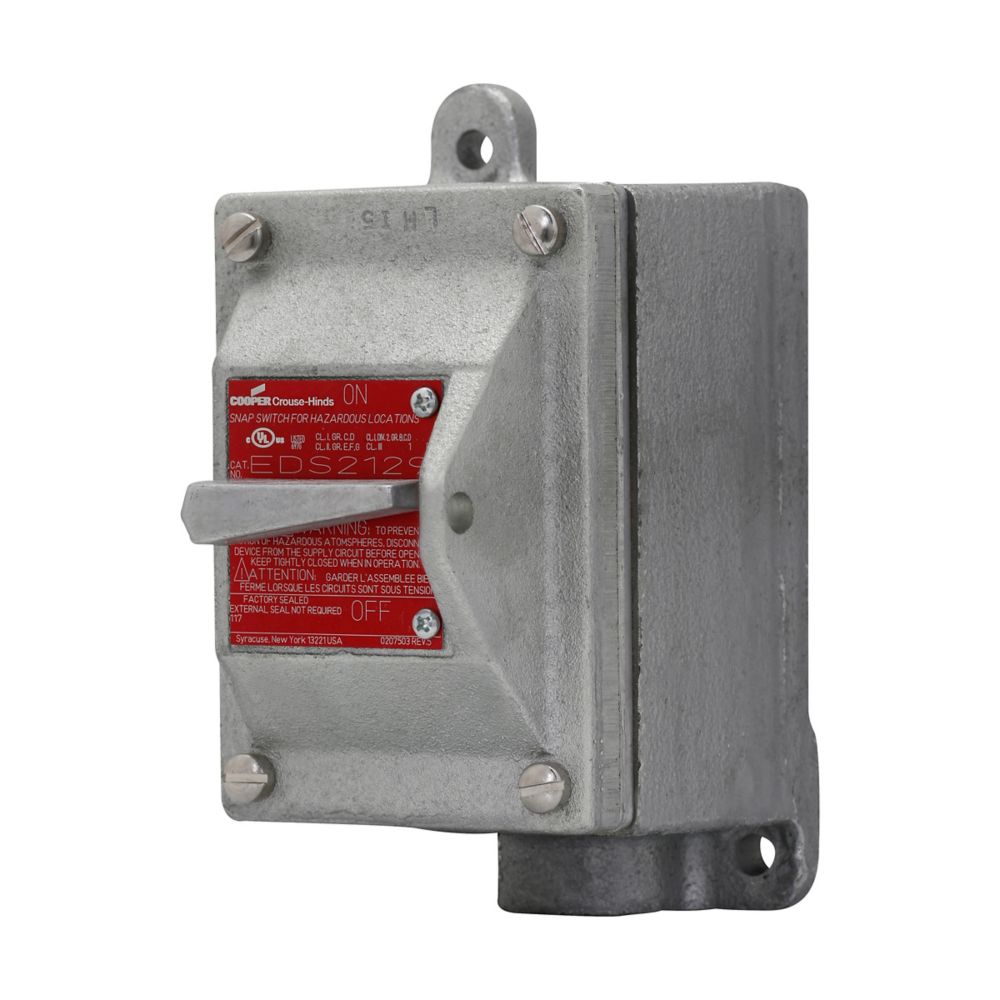

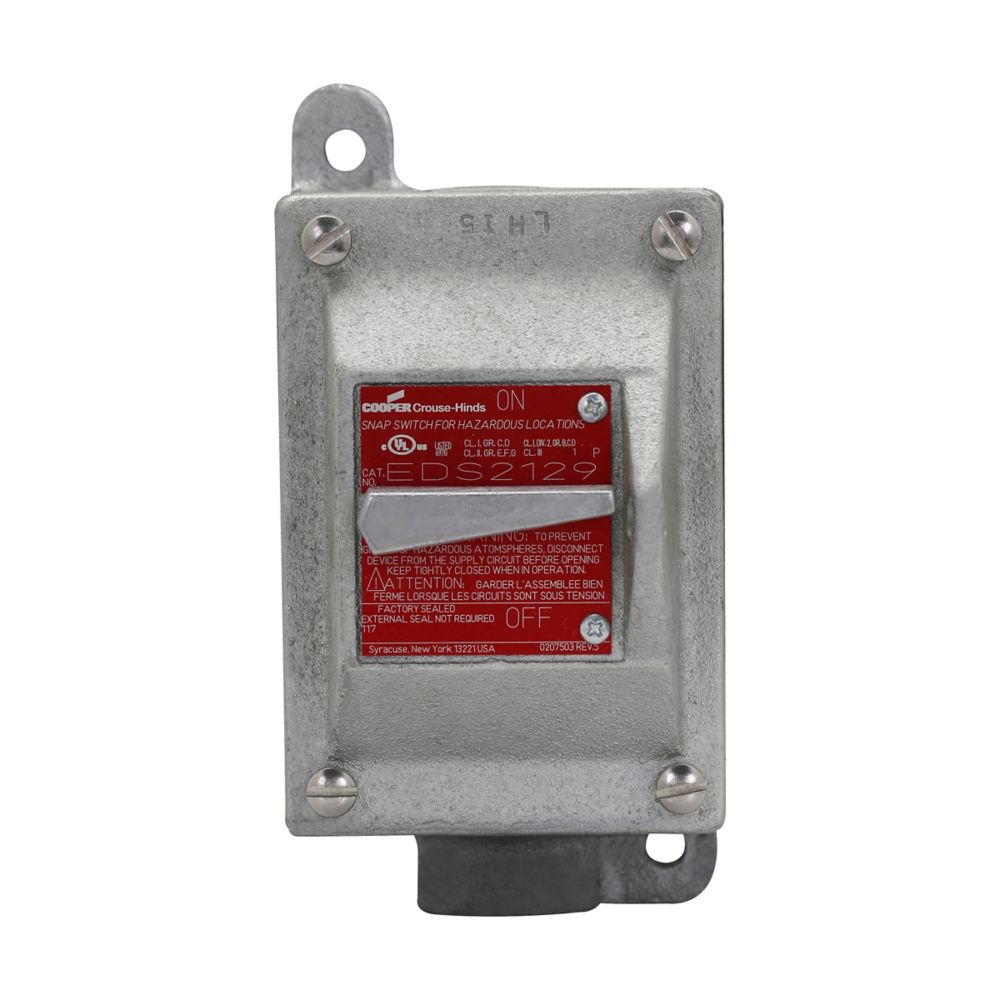

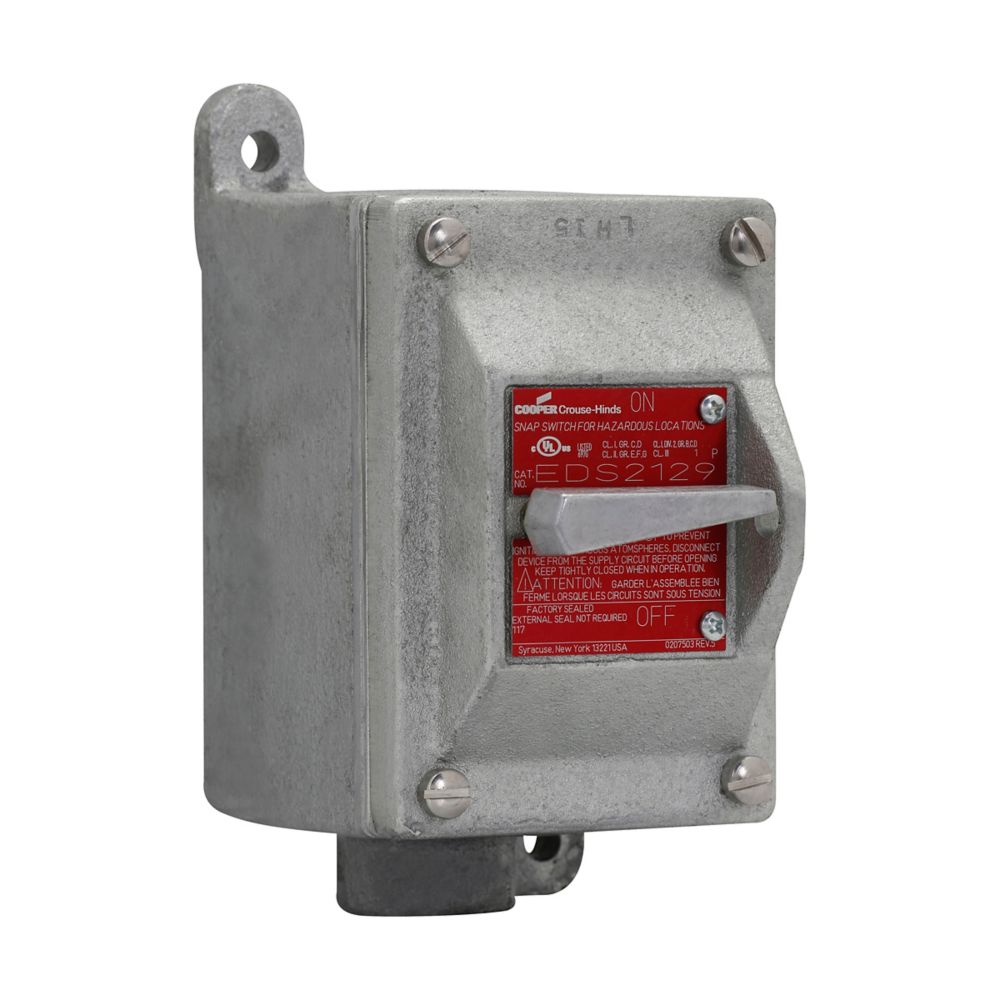

EDS2130 - Eaton Crouse-Hinds Series - 3/4" EDS Snap Switch Control Station
Eaton Crouse-Hinds series EDS snap switch control station, 20A, With switch, With one 3/4" hub, Feraloy iron alloy, 1, Single-gang, Three-pole, 120-277V, Factory sealed, Dead end, 3-way, 3/4", 120-277 Vac
GENERAL SPECIFICATIONS
| Product Name |
Eaton Crouse-Hinds series EDS snap switch control station
|
| Catalog Number |
EDS2130
|
| UPC |
782274763767
|
| Product Length/Depth |
5.06 in
|
| Product Height |
5.875 in
|
| Product Width |
3.5 in
|
| Product Weight |
8.15 lb
|
| Product Type |
Snap switch control station
|
PRODUCT SPECIFICATIONS
| Enclosure type |
With switch
|
| Trade size |
3/4"
|
| Number of poles |
Three-pole
|
| Switch function |
3-way
|
| Number of gangs |
Single-gang
|
| Style |
Dead end
|
| Voltage rating |
120-277 Vac
|
| Amperage Rating |
20A
|
| Hub style |
With one 3/4" hub
|
| Number of devices |
1
|
| Primary voltage range |
120-277V
|
| Material |
Feraloy iron alloy
|
| Special features |
Factory sealed
|
